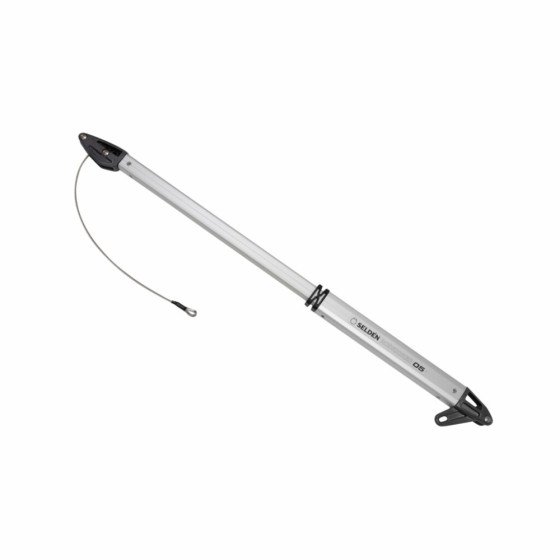

Rodkicker Type 05S is recommended for masthead rigged yachts with a displacement of max 3,9 tonnes and fractional rigged yachts up to 2,5 tonnes. 058-036-05 does not include a gas spring so the main purpose with this rigid vang is to facilitate sail handling when reefing, preventing the boom from dropping into the cockpit or onto the coach roof. It also doubles the purchase of your kicking strap. Kicking strap is not included. It can easily be upgraded with a gas spring if required. When fitted with a Seldén gas spring, it lifts the boom when the kicking strap is released. Excellent for trimming the main in light air.  The right size of Rodkicker, and correct spring force, is determined by the displacement of the boat, the righting moment at 30° heel angle, the boom height above deck, the length of the boom (E-measurement) and whether the mast is of conventional type or a furling mast. All of this is thoroughly explained on Seldén's website.

A Seldén Rodkicker facilitates sail handling when reefing, preventing the boom from dropping into the cockpit or onto the coach roof. When fitted with a Seldén gas spring, it lifts the boom when the kicking strap is released. Excellent for trimming the main in light air. The Seldén Rodkicker also doubles the purchase of your kicking strap. Choosing the right size The choice is based mainly on the righting moment of the yacht, a measure of its ability to carry sail. This is approximately proportional to displacement. The second input is the rig type (mast head or fractional). The document on the Attachments tab below shows the correct type for monohulls.

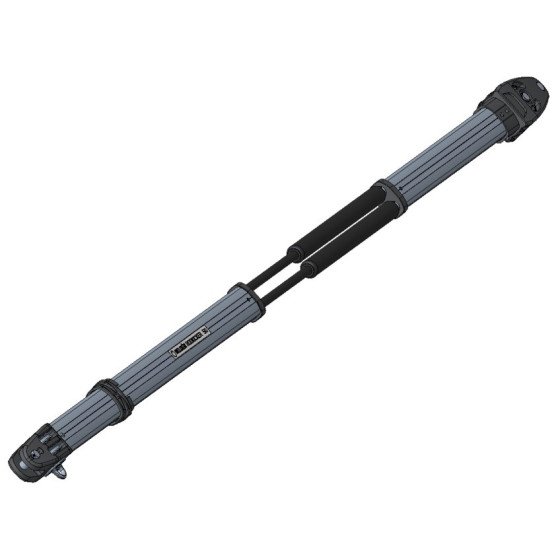

A rigid vang is designed to enhance sail handling during reefing, preventing the boom from falling into the cockpit or onto the coach roof. Equipped with gas springs, it automatically elevates the boom upon release of the kicking strap, making it particularly effective for adjusting the main sail in light winds.   Rodkicker 50 joins Seldén’s line of manually operated Rodkicker and is specifically sized for yachts measuring between 50 and 55 feet. While hydraulic vangs are often preferred for this size of yacht, the traditional design of a manual Rodkicker offers benefits due to its straightforward installation process.   Adding control lines accessible from both sides enables crew members on the windward side to quickly release the vang and avoid broaching. This is made possible by the new inboard ends featuring purchase sheaves allowing for flexible rigging.   The vang features a 4:1 cascade system in Dyneema® core so if a 4:1 tackle is added, the overall purchase increases to 16:1. The unit generates a return force of 10,000N, utilising two Seldén gas springs, each rated at 5,000N.

Seldén Rodkicker Gas Struts: Precision Support for Smarter Sail Handling Replacement gas springs comprising of spring, spacer tube and end plug. Without end fittings. Notice: For longer service life, fit the spring with the cylinder up.

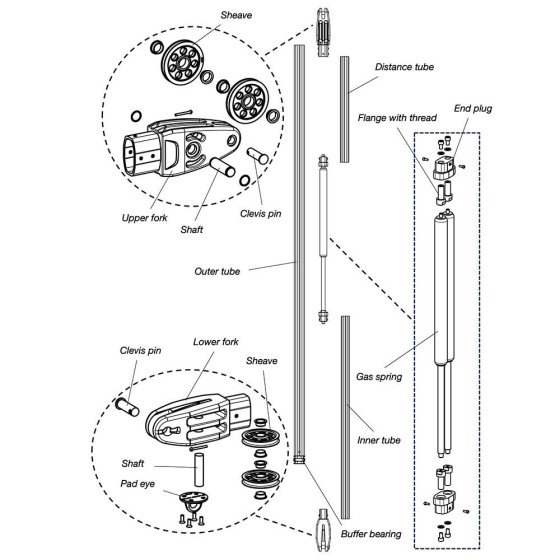

The end plug serves several important functions: Prevents Metal Contact: The extrusion end plug acts as a bushing, preventing metal-to-metal contact within the Rodkicker assembly. Elastic Buffer: The upper sliding bearing includes an elastic buffer that helps dampen shocks if the Rodkicker suddenly bottoms out. Snag Prevention: The end-fitting is designed with an enclosed recessed split pin to avoid snagging sails or crew members.

The Selden Rodkicker Buffer Bearing is an essential component of the Selden Rodkicker, which is a rigid vang used to facilitate sail handling. The buffer bearing serves several important functions: Shock Absorption: The buffer bearing acts as an elastic buffer to dampen shocks if the Rodkicker suddenly bottoms out. This helps protect the rigging and the sail from damage. Smooth Operation: It ensures smooth and efficient operation of the Rodkicker, allowing for precise sail trimming and handling. Durability: The buffer bearing is designed to withstand the rigors of sailing, providing long-lasting performance and reliability.

The lower end of the Seldén Rodkicker plays a crucial role in sail handling and rigging. Here are its main functions: Prevents Metal Contact: The extrusion end plug acts as a bushing, preventing metal-to-metal contact within the Rodkicker assembly. Shock Absorption: The upper sliding bearing includes an elastic buffer that helps dampen shocks if the Rodkicker suddenly bottoms out. Snag Prevention: The end-fitting is designed with an enclosed recessed split pin to avoid snagging sails or crew members

The upper end of the Selden Rodkicker plays a crucial role in sail handling and rigging. Here are its main functions: Shock Absorption: The upper sliding bearing includes an elastic buffer that helps dampen shocks if the Rodkicker suddenly bottoms out. Smooth Operation: It ensures smooth and efficient operation of the Rodkicker, allowing for precise sail trimming and handling. Durability: The upper end is designed to withstand the rigors of sailing, providing long-lasting performance and reliability.

The Selden Universal Rodkicker Boom Bracket is a versatile component designed to securely attach the Rodkicker to the boom. Here are some key features and functions: Compatibility: The bracket is suitable for use with Rodkicker models 10 and 20. Dimensions: The bracket has a length of 250 mm, a width of 9 mm, and a hole diameter of 13 mm. Installation: The bracket can be installed using screws or rivets, ensuring a secure and stable connection between the Rodkicker and the boom. Durability: Made from high-quality materials, the bracket is built to withstand the rigors of sailing and provide long-lasting performance

The Selden Universal Rodkicker Mast Bracket is a versatile and essential component designed to securely attach the Rodkicker to the mast. Here are some key features and functions: Compatibility: The bracket is suitable for use with Rodkicker models 10 and 20. Dimensions: The bracket has a height of 185 mm, a toggle width of 20 mm, and a hole diameter of 12.5 mm. Installation: The bracket is designed for easy installation, ensuring a secure and stable connection between the Rodkicker and the mast. Durability: Made from high-quality materials, the bracket is built to withstand the rigors of sailing and provide long-lasting performance. No fastening are included.

Rodkicker mast brackets, C-sections and F-sections. To find the right mast bracket for your Selden mast please look at the Data Sheet on the ATTACHMENTS tab.

Rodkicker mast brackets for E-sections, D-sections and R-section masts. To find the right mast bracket for your Selden mast please look at the Data Sheet on the ATTACHMENTS tab.

This is a relatively new concept when it comes to kickers. It originates from sailing dinghies, and keelboat classes like Laser SB3, where it allows more space for the crew to move underneath the boom, close to the mast. As the Gnav is fitted above the boom it is out of the way and you will experience a huge gain in cockpit space.  A Gnav is a fixed aluminium compression strut fitted between a hinged or fixed fitting on the aft side of the mast and a slider in the sail groove of the boom. The sail must be loose footed as the sail groove is occupied by the Gnav slider. A strap from the slider is lead down to the cockpit. When the strap is tensioned, the slider moves forward and the boom is pushed down. Release the strap and the mainsail will lift the boom.

Gnav car including sheave and clevis pin

Gnav Stainless Steel End.

Gnav Strut 700mm excluding Gnav Car.

Gnav Strut 700mm including Gnav Car.

Gnav Triangular toggle. It connects the Gnav strut to the slider, ensuring a secure and stable connection.

Fast and convenient adjustment of the main trim functions is vital both for the racing sailor and for the cruising sailor. Just being able to tension the forestay and adjust the halyard  tension and outhaul will make any boat point higher, sail faster and under better control. Seldén has developed a range of hydraulic cylinders that are easy to use and of a quality  that ensures long service life. The rods are marine grade stainless steel and the cylinders black anodized or clear anodized aluminium. The tensioners have long stroke making it possible to try out different mast rakes. The control panels are available for single function  or 4-functions and feature an adjustable relief valve to prevent overload.
