Deck Organisers

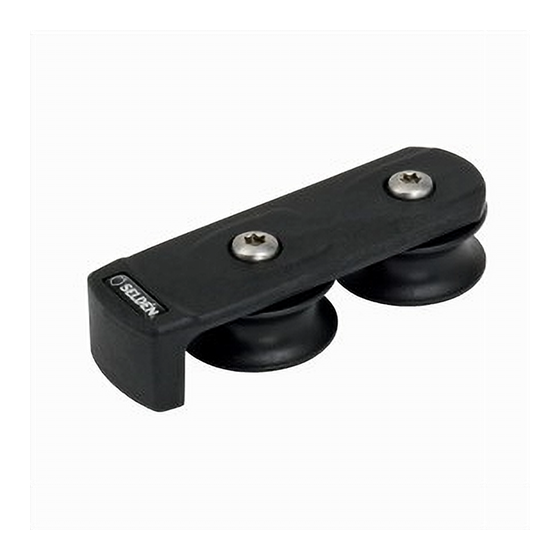

Seldén 2-sheave deck organiser (420-001-02) with 40 mm ball-bearing sheaves for routing halyards and control lines aft. Maximum 14 mm line, 700 kg safe working load and 1400 kg breaking load.

Deck Organisers keep the deck tidy and lead ropes back to the cockpit. The acetal sheaves have acetal ball bearings absorbing side loads from ropes entering the organiser with a vertical angle. They can be fitted to slighly curved surfaces and can be stacked on top of each other.

Seldén 4-sheave deck organiser (420-001-04) with 40 mm ball-bearing sheaves for grouping halyards and control lines. Maximum 14 mm line, 700 kg safe working load and 1400 kg breaking load.

Seldén 5-sheave deck organiser (420-001-05) with 40 mm ball-bearing sheaves for leading multiple halyards and control lines aft. Maximum 14 mm line, 700 kg safe working load and 1400 kg breaking load.

Seldén 6-sheave deck organiser (420-001-06) with 40 mm ball-bearing sheaves for routing multiple lines from the mast towards clutches and winches. Maximum 14 mm line, 700 kg safe working load and 1400 kg breaking load.

Seldén 2-sheave deck organiser (420-101-02) with 50 mm ball-bearing sheaves for higher-load halyard and control-line routing. Maximum 16 mm line, 1000 kg safe working load and 2000 kg breaking load.

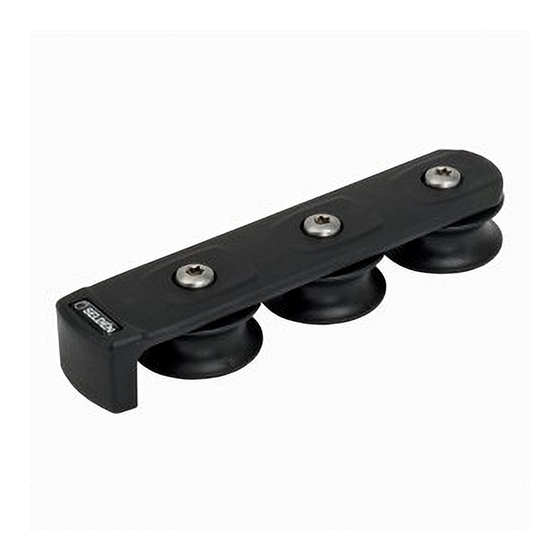

Seldén 3-sheave deck organiser (420-101-03) with 50 mm ball-bearing sheaves for routing halyards and control lines aft. Maximum 16 mm line, 1000 kg safe working load and 2000 kg breaking load.

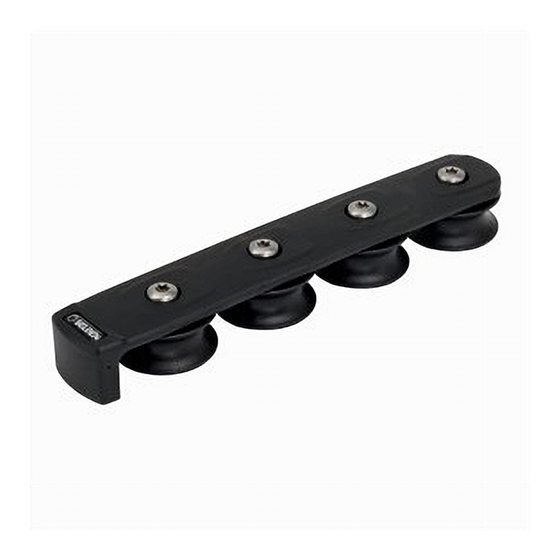

Seldén 4-sheave deck organiser (420-101-04) with 50 mm ball-bearing sheaves for managing multiple higher-load deck lines. Maximum 16 mm line, 1000 kg safe working load and 2000 kg breaking load.

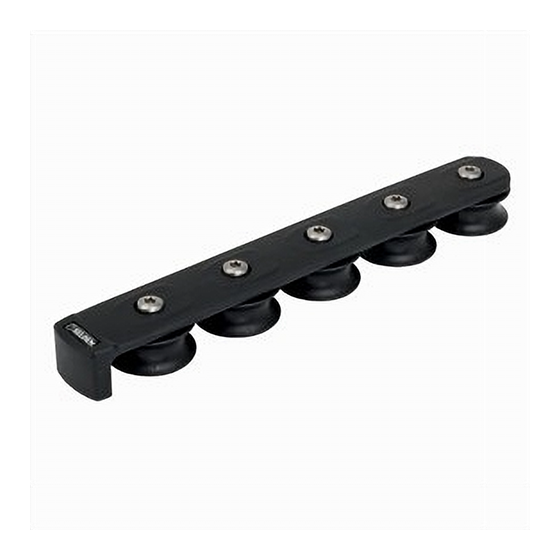

Seldén 5-sheave deck organiser (420-101-05) with 50 mm ball-bearing sheaves for compact routing of multiple halyards and control lines. Maximum 16 mm line, 1000 kg safe working load and 2000 kg breaking load.

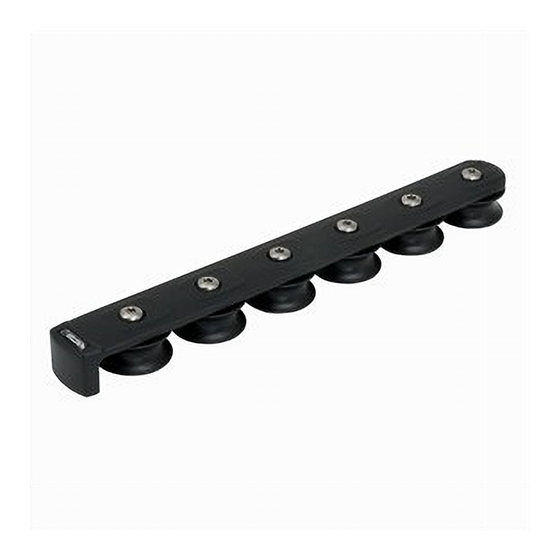

Seldén 6-sheave deck organiser (420-101-06) with 50 mm ball-bearing sheaves for routing multiple higher-load lines towards clutches and winches. Maximum 16 mm line, 1000 kg safe working load and 2000 kg breaking load.
