System 30 Tracks & Fittings

System 30 is based on a 30 mm track and used for yachts up to approximately 45ft LOA.

Genoa

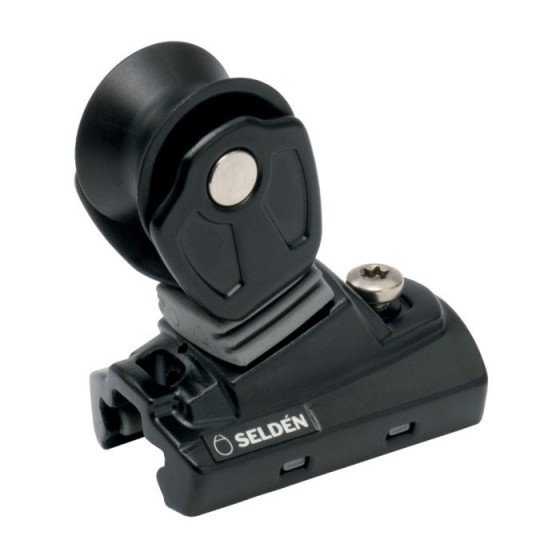

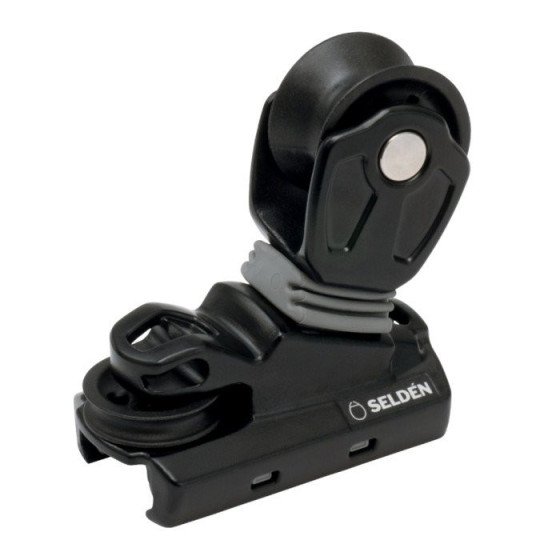

  • The genoa car is black laquered aluminium with sliderods

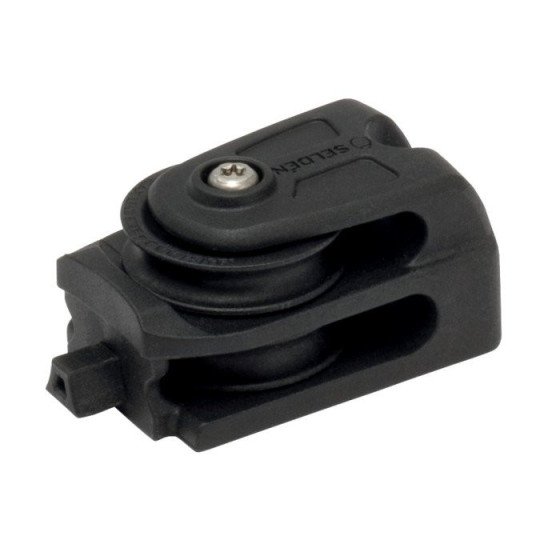

  • End fittings are glass fibre reinforced composite with rubber buffer bearings.
  • Ø30/40 mm plain bearing Acetal sheaves for control lines.

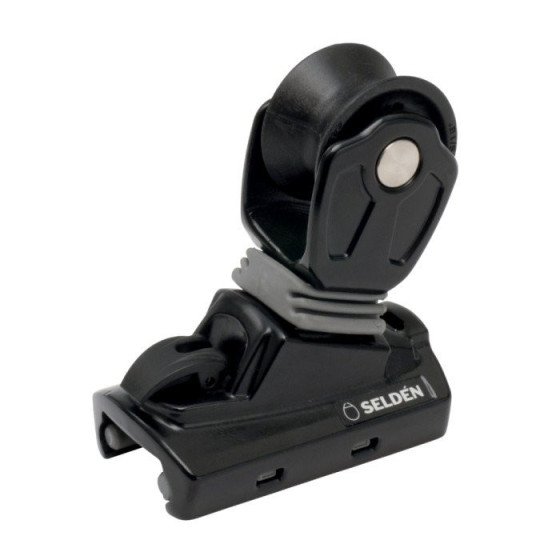

  • Genoa cars available for pinstop operation and for control lines.
  • Ø50 mm plain bearing Acetal sheave in the genoa car.
  • Genoa car and end controls come with integral beckets for control lines.
  • Suitable max size of control line is Ø8 mm.

Main Sheets

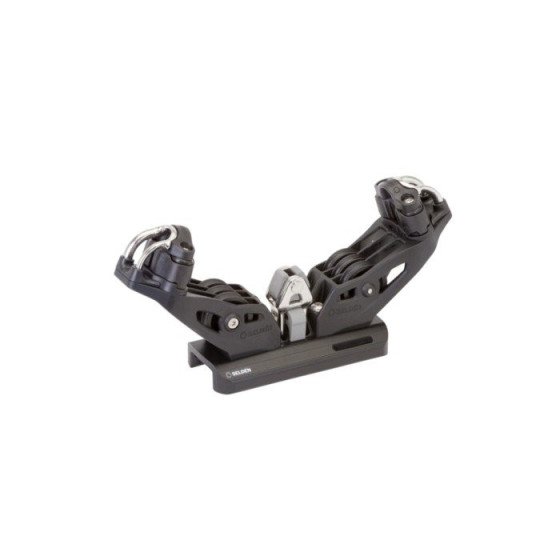

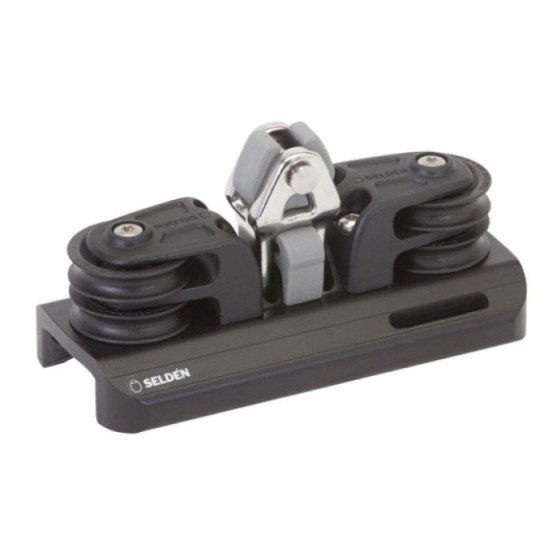

  • The main sheet cars are black anodised, extruded aluminium. They run on Torlon ball bearings.

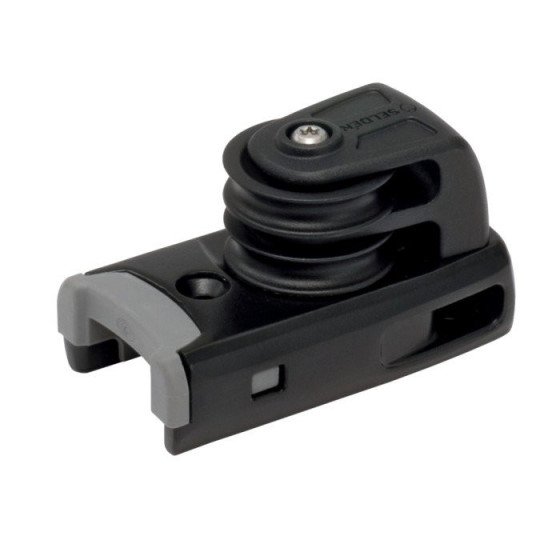

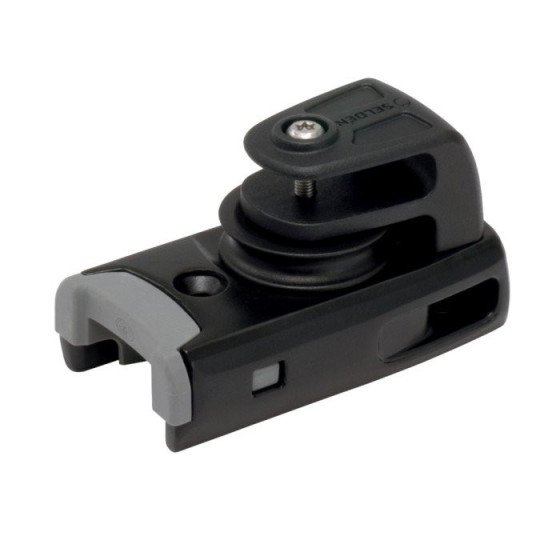

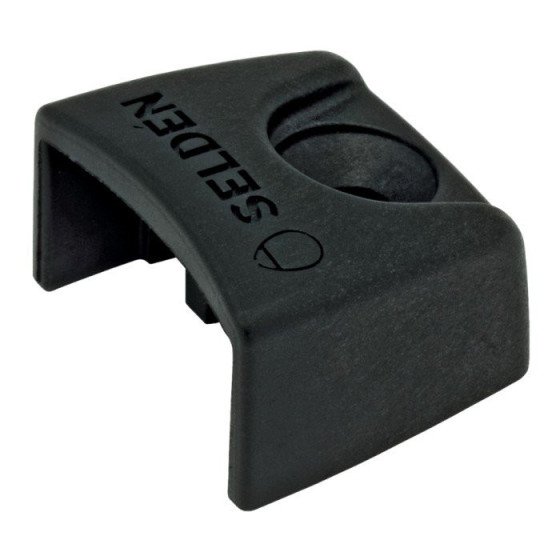

  • End fittings are glass fibre reinforced composite with rubber buffer bearings.
  • Ø30/40 mm plain bearing Acetal sheaves for control lines.
  • Suitable max size of control line is Ø8 mm.

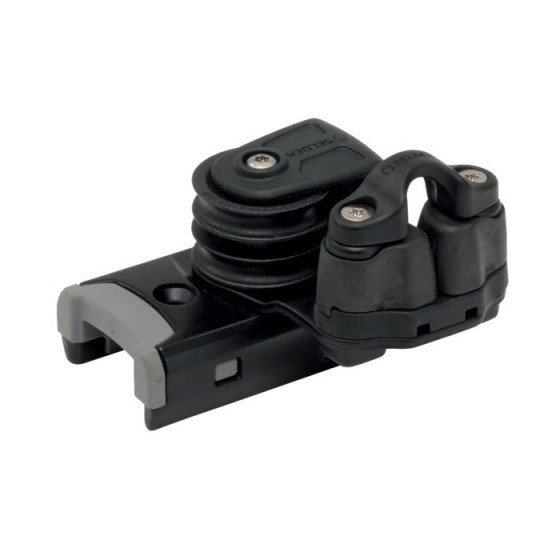

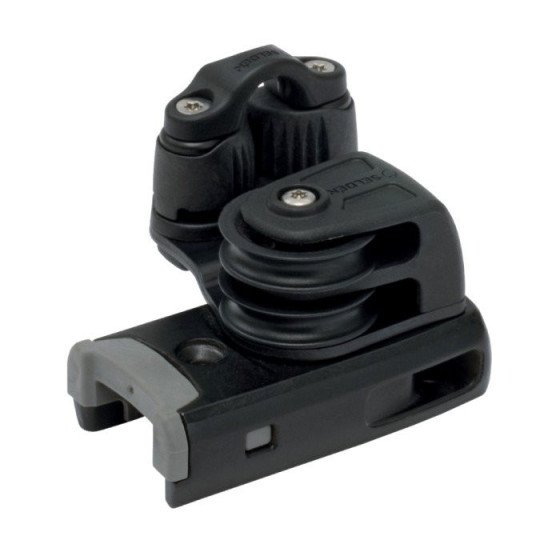

  • End controls with Cam cleat 27, control line Ø7 mm.

Self Tacking

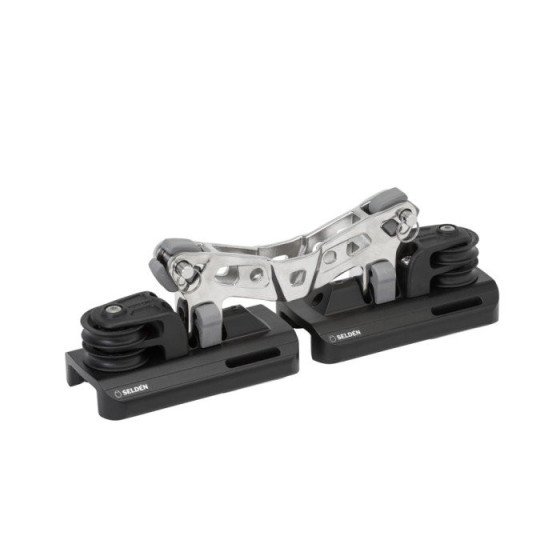

  • The self tacking cars are black anodised, extruded aluminium. They run on Torlon ball bearings.
  • End fittings are glass fibre reinforced composite with rubber buffer bearings.
  • AISI 316 mirror finished stainless toggle.
  • The toggle is supported by a rubber stand-up collar.

There are 54 products.

Showing 1-20 of 54 item(s)

30mm Sliding Bolt Track -...

System 30 is based on a 30 mm track and used for yachts up to approximately 45. Sliding Bolt tracks are ideal for retrofit upgrades as the fastening can be located according to the existing holes. Also used when the bolts are to be hidden. Please choose the length of track you need.

view product

30mm Pin Stop Track...

System 30 is based on a 30 mm track and used for yachts up to approximately 45. Pinstop is a spring loaded fixing the genoa car on a purpose made track. The car is easy to relocate when not under load.Please choose the length of track you need.

view product

30mm High Beam Track...

System 30 is based on a 30mm track and used for yachts up to approximately 45ft LOA. High Beam tracks are used for unsupported main sheet systems and self tacking systems. Please select the length of track needed.

view product
