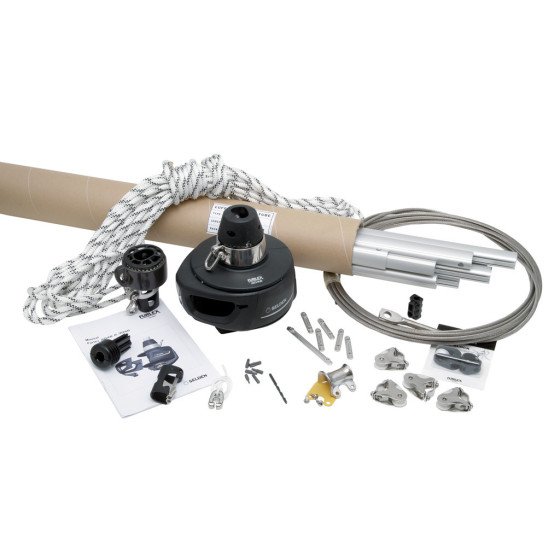

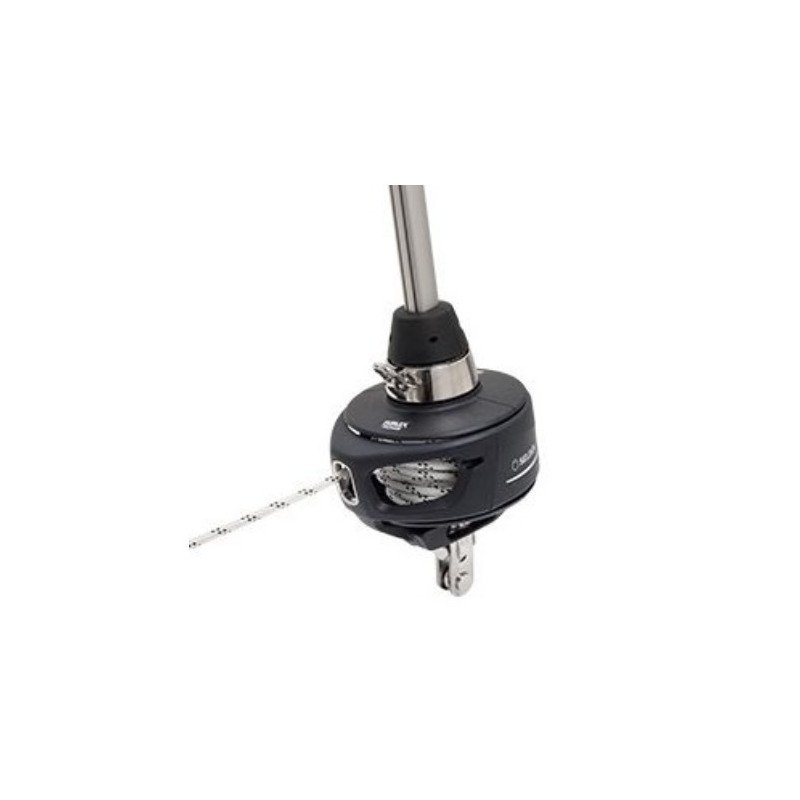

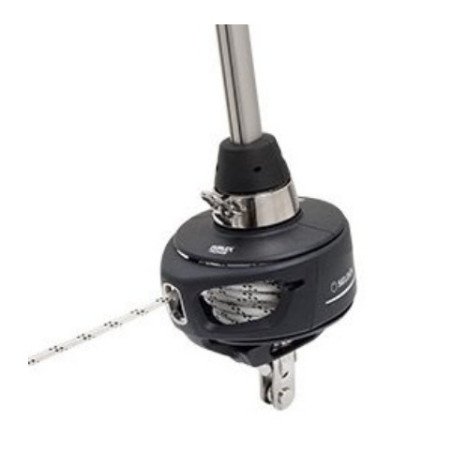

Seldén Furlex 104S Jib Furling System

Seldén

inc. VAT Typically delivered within 2-3 Weeks (In stock at Distributor)

Seldén Furlex 104S is for smaller yacht forestays using 4 mm, 5 mm or 6 mm wire, with complete-kit lengths from 8.10 m to 12.90 m.

It is typically used on yachts around 22–30 ft. Select the wire diameter, a supplied length long enough for the finished forestay, and either the standard Sta-Lok terminal or integrated rigging-screw version.

Ask our rigging team if you want the existing forestay specification checked before ordering.

Seldén Furlex 104S Jib Furling System

£1,573.11 £1,850.71 Save 15%

Seldén

inc. VAT Typically delivered within 2-3 Weeks (In stock at Distributor)

Forestay Diameter :

4 mm
5 mm
6 mm

Max. Forestay Length :

8100 mm
10500 mm

Forestay Termination :

Standard Sta-lok Terminal
Sta-lok Terminal & Rigging Screw

Quantity :

Write review

Our Delivery Policy

Returning Your Order - Our policy

Furlex 104S Size Options

The 104S has a compact seven-kit range:

4 mm wire: 8.10 m or 10.50 m
5 mm wire: 8.10 m, 10.50 m or 12.90 m
6 mm wire: 10.50 m or 12.90 m

These figures are the maximum forestay wire lengths supplied with each kit. The wire is cut to the finished length required by the yacht during installation.

104S Part Numbers

Wire	Length	Standard	With Rigging Screw
4 mm	8.10 m	030-020-51	030-020-61
4 mm	10.50 m	030-020-52	030-020-62
5 mm	8.10 m	030-020-53	030-020-63
5 mm	10.50 m	030-020-54	030-020-64
5 mm	12.90 m	030-020-55	030-020-65
6 mm	10.50 m	030-020-56	030-020-66
6 mm	12.90 m	030-020-57	030-020-67

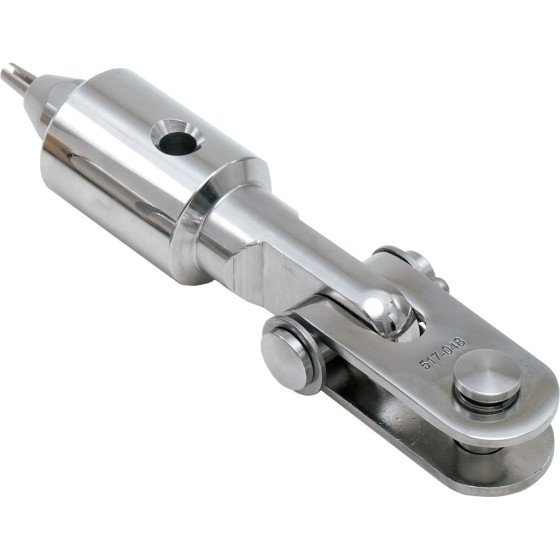

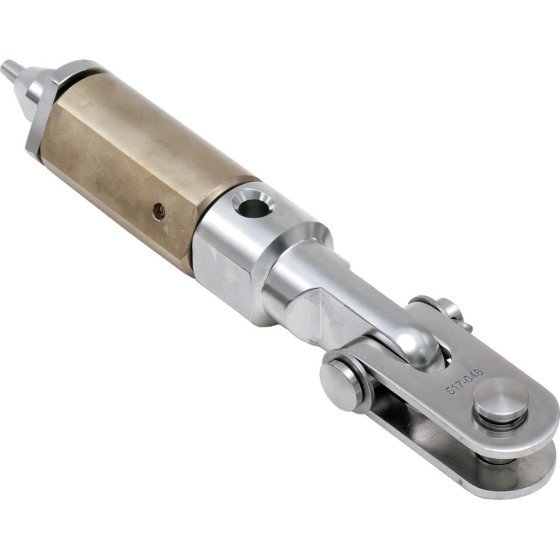

Standard Terminal or Rigging Screw?

Standard kits use the Sta-Lok mechanical terminal supplied with the Furlex. Choose the rigging-screw version when adjustment of the installed forestay length is required at the lower Furlex assembly.

Measurements Worth Checking

For a replacement installation, record the existing forestay wire diameter and finished length. It is also useful to check the lower clevis-pin size, tack position and halyard lead before the old equipment is removed.

If the existing forestay is larger than 6 mm, see the Seldén Furlex range comparison for 204S, 304S and 404S options.

Contact Martin Leaning Masts & Rigging if you would like us to check the measurements before ordering.

Part No. 030-020-51

104-404S-Furlex-Data-Sheet

Download 104S - 204S - 304S - 404S Furlex Details
