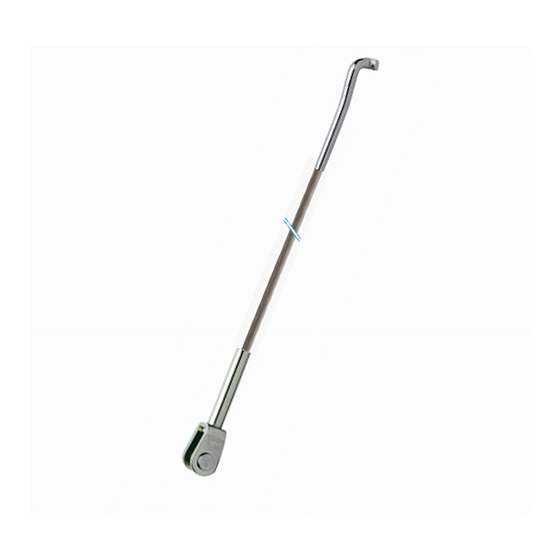

RS Elite Forestay - 5mm 1 x 19 stainless steel wire forestay terminated with a Fork Eye and a T-Terminal.

RS Elite Shroud - 5mm 1 x 19 stainless steel wire terminated with a RONSTAN Swage Terminal and a T-Terminal. Designed to fit existing Ronstan Adjusters supplied with RS Elites.

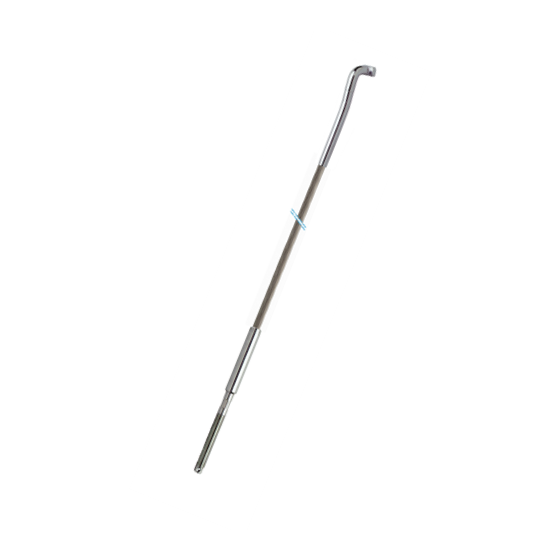

RS Elite Lower - 4mm 1 x 19 stainless steel wire terminated with a RONSTAN Swage Terminal and a T-Terminal. Designed to fit existing Ronstan Adjusters supplied with RS Elites.

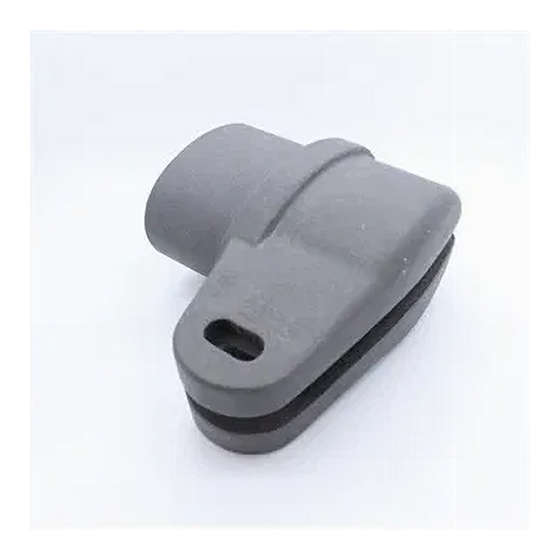

RS Elite Mast Heel. These often need replacing as they corrode. MAST REPAIR SERVICE Please Get in Touch if you would like us the repair your mast and heel. We can complete all carbon work required to make a strong and lasting repair.

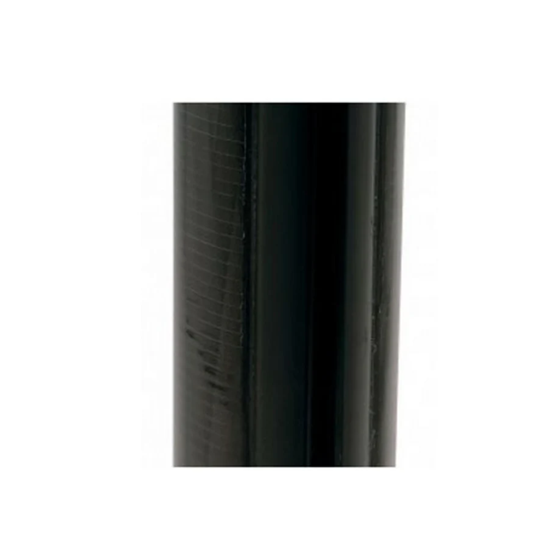

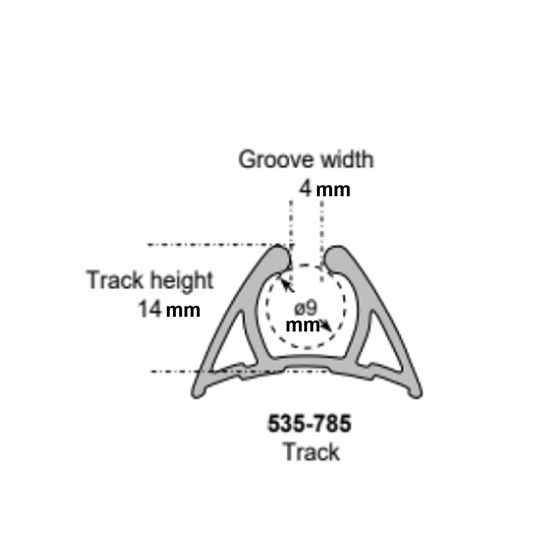

Selden 535-785 Mast Track Overview Attribute Details Material PVC (Polyvinyl Chloride) Length 6000 mm (standard full section), supplied by the metre Compatibility Designed for carbon mast sections S3/S4 (used in RS Elite, RS800) Mounting Method Bonded to mast using Plexus® MA300, a two-part methacrylate adhesive Properties Lightweight, UV-stable, heat-resistant, and highly wear-resistant Profile Function Extends mast profile to accommodate sail track and sliders Availability Sold per meter or full length; may require collection due to size This track is custom-extruded to match the carbon mast profile, ensuring smooth sail hoisting and reliable slider engagement. Its large bonding surface provides secure adhesion, and the PVC construction balances durability with weight savings—ideal for performance dinghies and keelboats like the RS Elite. MAST REPAIR SERVICE Please Get in Touch if you would like us the repair your mast track. We can complete all carbon/bonding work required to make a strong and lasting repair.

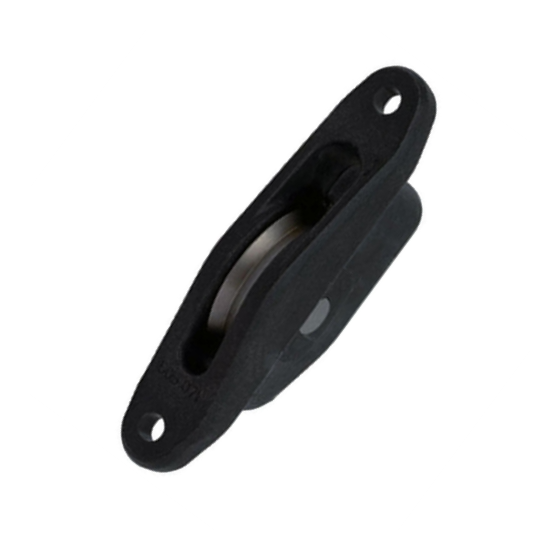

Selden sheave box for RS Elite Main Halyard with Aluminium Sheave. Sheave Width 6mm Length 85mm Sheave Diameter 35mm Slot Cut Out 55mm x 15mm Fixing Hole Centres 73mm Depth 35mm

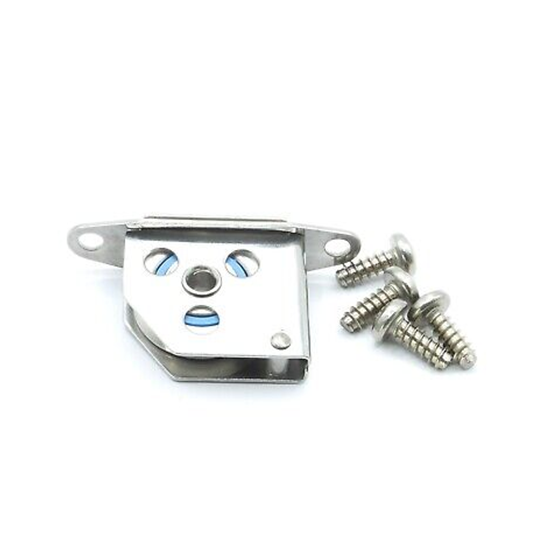

Selden Spinnaker Halyard Sheave Box (Part No. 505-079-01), commonly used on RS Elite and similar rigs. You’ll see its compact stainless steel housing and ball-bearing sheave designed for smooth halyard operation.

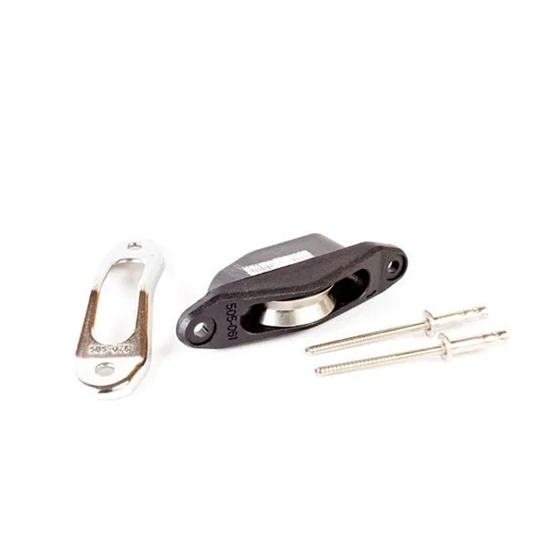

Selden 505-061-22 – RS Elite Jib Sheave Box Function: Guides the jib halyard cleanly through the mast, reducing friction and wear while maintaining optimal lead angle. Design: Compact sheave box assembly built for integration into the upper mast section of the RS Elite. Material: Typically constructed from anodised aluminium or high-strength composite, with a plain bearing sheave. Sheave Type: Plain bearing (non-ball bearing), suitable for rope halyards under moderate load. Application: Specifically tailored for RS Elite class boats; not a universal fitting. This sheave box is part of the RS Elite’s standard mast hardware and plays a key role in halyard efficiency and mast integrity. If you're replacing or upgrading, it’s important to match this part with the correct mast section and halyard diameter.

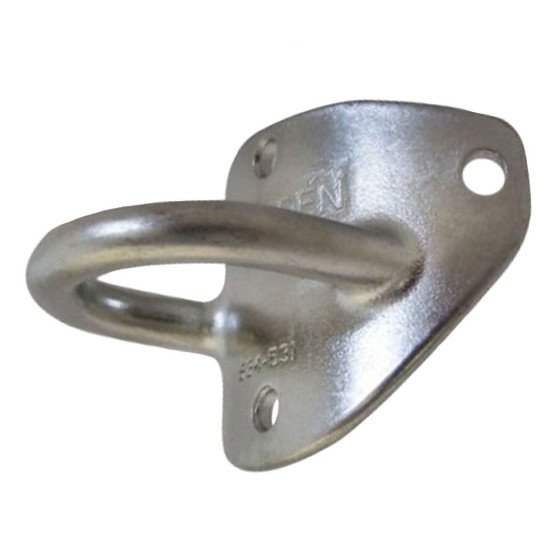

The Seldén part number 534-531-03 is a fixed eye for a Seldén spinnaker pole with a 30mm inner diameter, used for attaching a spinnaker pole to the mast on an RS Elite.

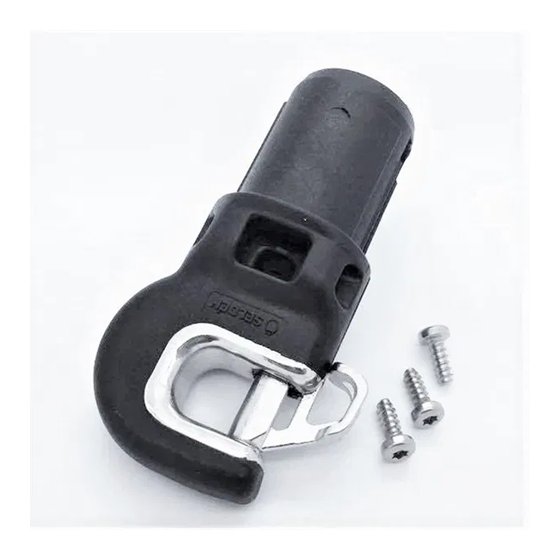

Selden Spinnaker Pole End for RS Elite. Solid aluminum construction Integrated trip trigger mechanism Compatibility with RS Elite dayboat pole dimensions

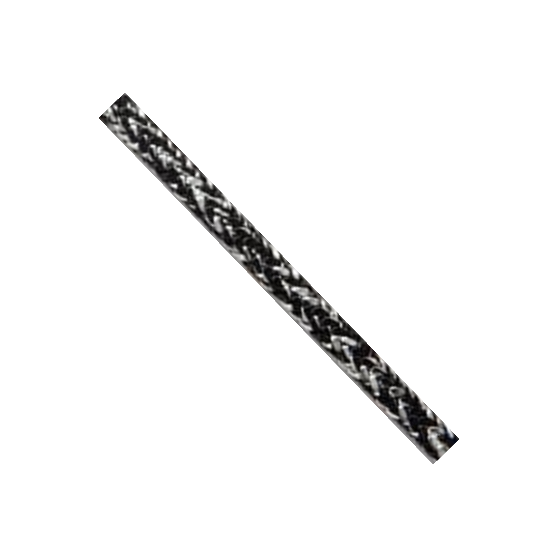

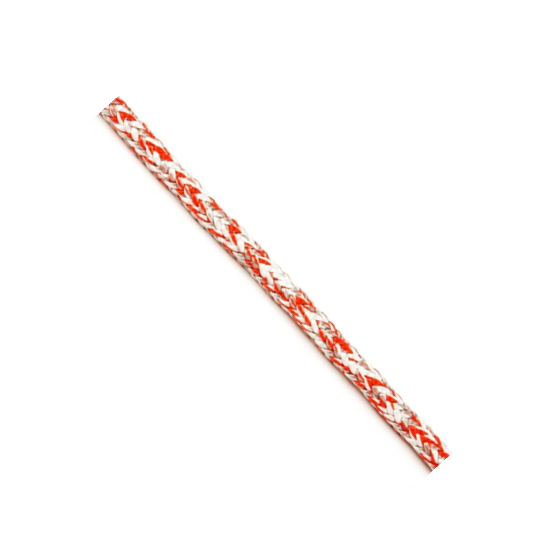

RS Elite Mainsheet Gottifredi Maffioli Evolution Sheet Plus Length 12m+3m taper at Outboard End Diameter 8mm Inboard End Heat sealed Outboard End Back Spliced Colour Red/White

RS Elite Jib Sheet Gottifredi Maffioli Evolution Sheet Plus Length 8m Diameter 8mm Both Ends Heat Sealed Colour Black/White We can splice this onto the boat to make it continuous. Please Get in touch to arrange this.

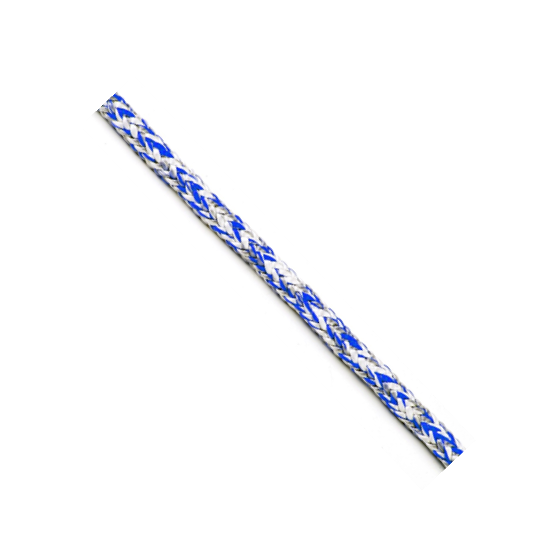

RS Elite Spinnaker Sheets x 2 Gottifredi Maffioli Evolution Sheet Plus Length 11m inc. 3m taper at Outboard End x 2 Diameter 8mm Outboard Ends 3m taper with back splice to make the end diameter compatible with standard RS-Elite Selden Pole ends Inboard Ends Heat Sealed Colour Blue/White

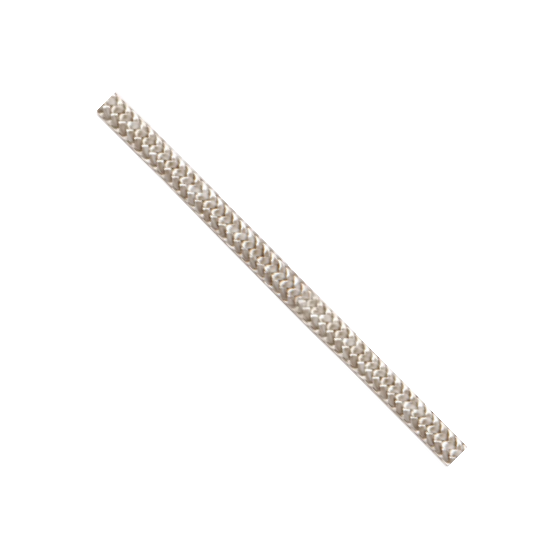

RS Elite Main Halyard Gottifredi Maffioli Evolution Race 78 Length 24.5m Diameter 5mm Both Ends Heat Sealed Colour White

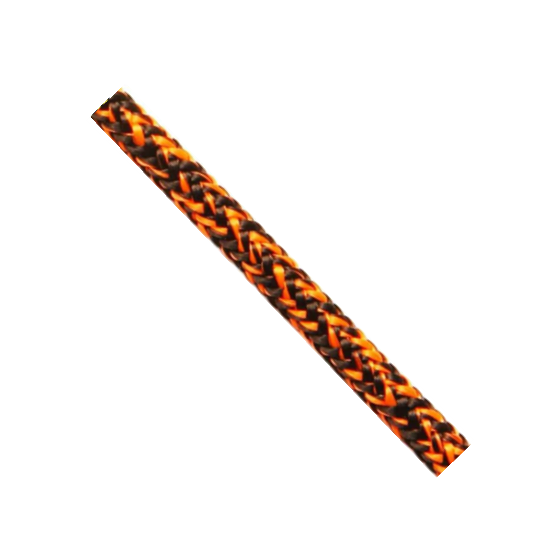

RS Elite Jib Halyard Gottifredi Maffioli Evolution Race 78 Suitable for 2:1 System. Length 21m Diameter 8mm Both Ends Heat Sealed Colour Orange

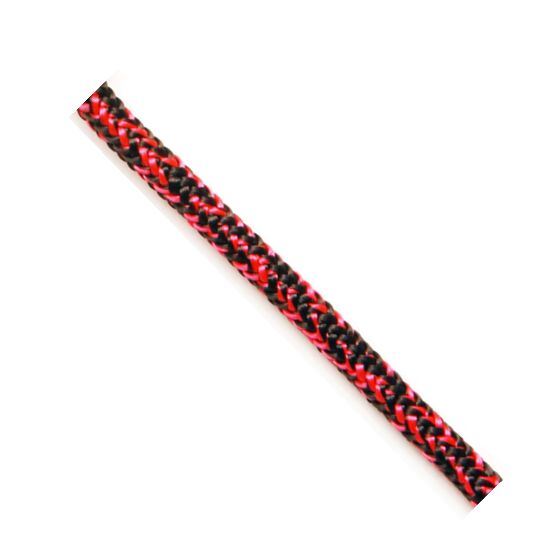

RS Elite Spinnaker Halyard Gottifredi Maffioli Evolution Race 78 Length 21.5m Diameter 6mm Both Ends Heat Sealed Colour Pink/Black
