80mm Harken Elements Blocks

Forged aluminum sideplates with compound curves Hardcoat-anodized sideplates resist corrosion Composite bearing sheave with journal bearing Removable headpost lock (lockable at 90 deg/180 deg) on swivel models Stainless-steel shackle and axle hardware

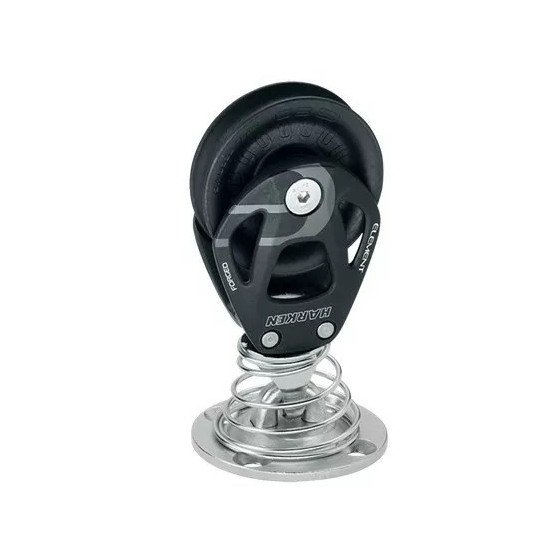

Harken Element 6280 is an 80 mm stand-up block for higher-load deck or padeye installations. Maximum 16 mm line, 2200 kg maximum working load and 4400 kg breaking load.

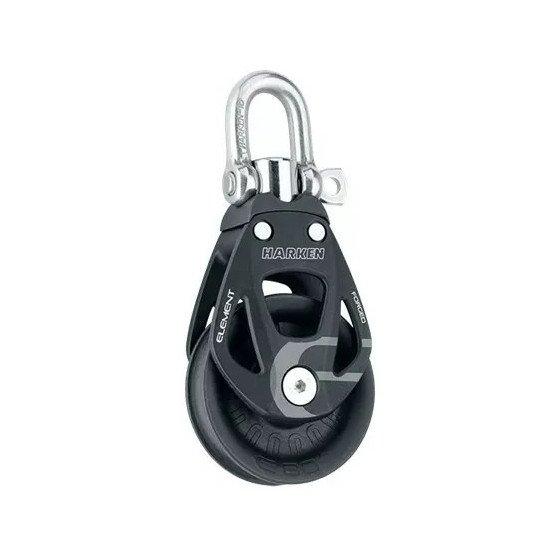

Harken Element 6290 is an 80 mm single swivel block with hardcoat-anodised aluminium sideplates and composite journal-bearing sheave. Maximum 16 mm line, 2200 kg maximum working load and 4400 kg breaking load.

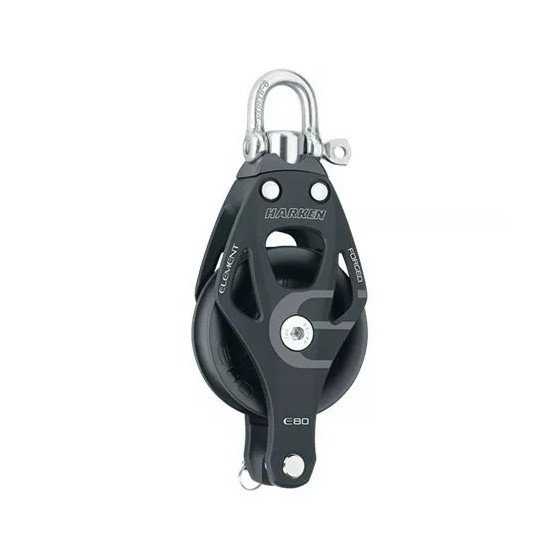

Harken Element 6291 is an 80 mm single swivel block with integral becket for terminating the standing end of a purchase. Maximum 16 mm line, 2200 kg maximum working load and 4400 kg breaking load.

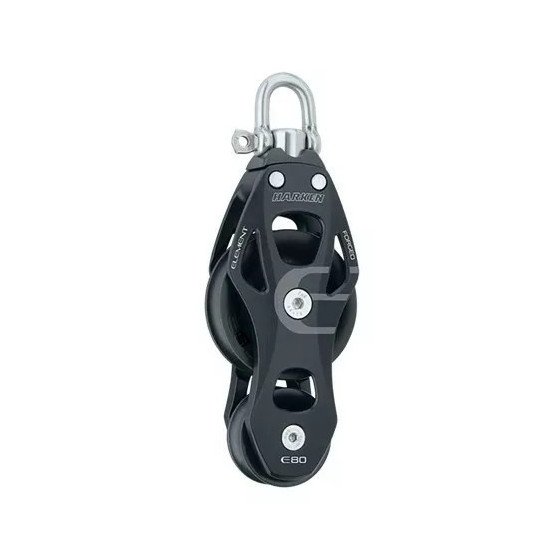

Harken Element 6292 is an 80 mm fiddle swivel block for compact multi-part tackles carrying two line paths through one fitting. Maximum 14 mm line, 2200 kg maximum working load and 4400 kg breaking load.

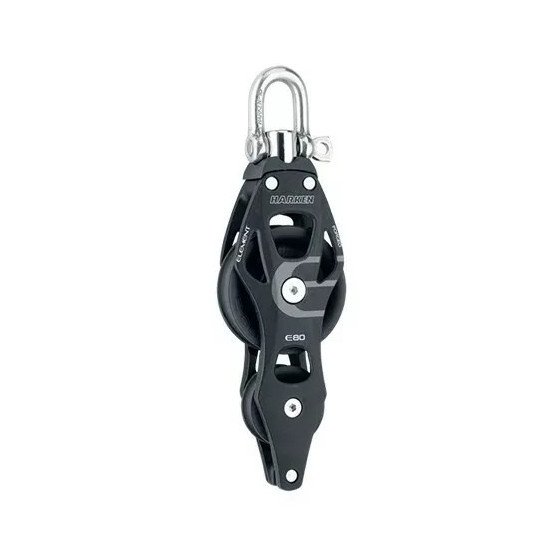

Harken Element 6293 is an 80 mm fiddle swivel block with integral becket for compact multi-part purchase systems. Maximum 14 mm line, 2200 kg maximum working load and 4400 kg breaking load.

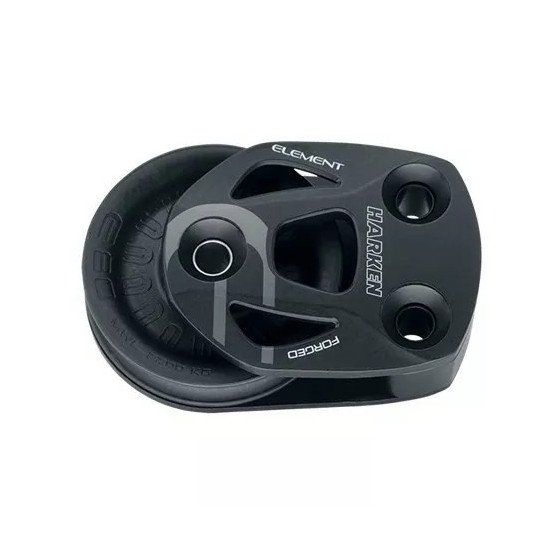

Harken Element 6294 is an 80 mm single footblock for permanent deck or coachroof line leads. Maximum 16 mm line, 2200 kg maximum working load and 4400 kg breaking load.

Harken Element 6295 is an 80 mm lockoff footblock for deck-level line redirection with local lockoff control. Maximum 16 mm line, 2200 kg maximum working load and 4400 kg breaking load.

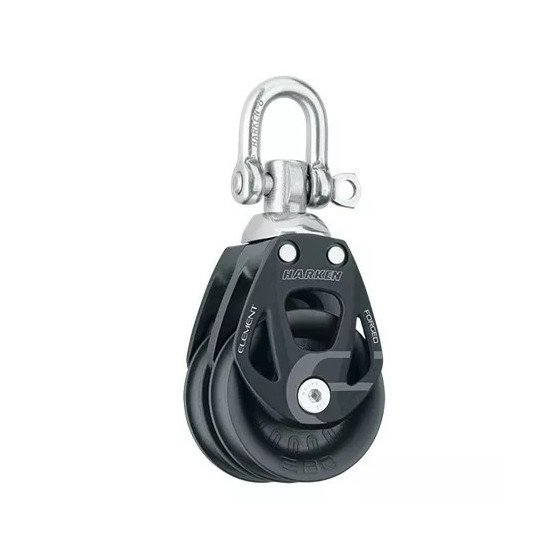

Harken Element 6296 is an 80 mm double swivel block for multi-part tackle systems carrying two line parts through one moving fitting. Maximum 16 mm line, 2750 kg maximum working load and 5500 kg breaking load.

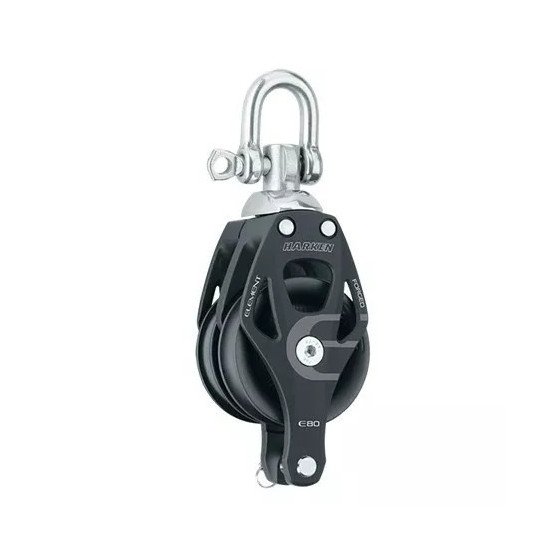

Harken Element 6297 is an 80 mm double swivel block with integral becket for terminating the standing end of a purchase. Maximum 16 mm line, 2750 kg maximum working load and 5500 kg breaking load.

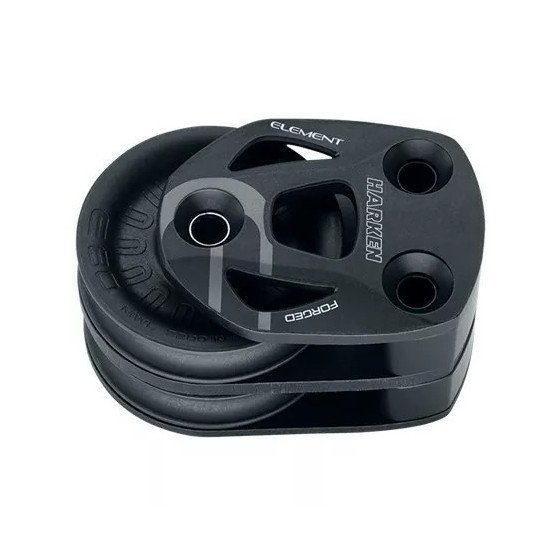

Harken Element 6298 is an 80 mm double footblock providing two permanent deck-level line leads in one fitting. Maximum 16 mm line, 1450 kg maximum working load and 2900 kg breaking load.

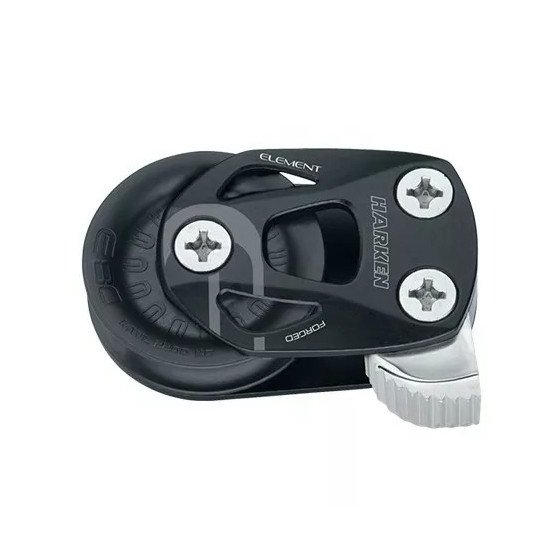

Harken Element 6299 is the left-hand 80 mm lockoff footblock for permanent deck-level line redirection and local lockoff control. Maximum 16 mm line, 2200 kg maximum working load and 4400 kg breaking load.
