470

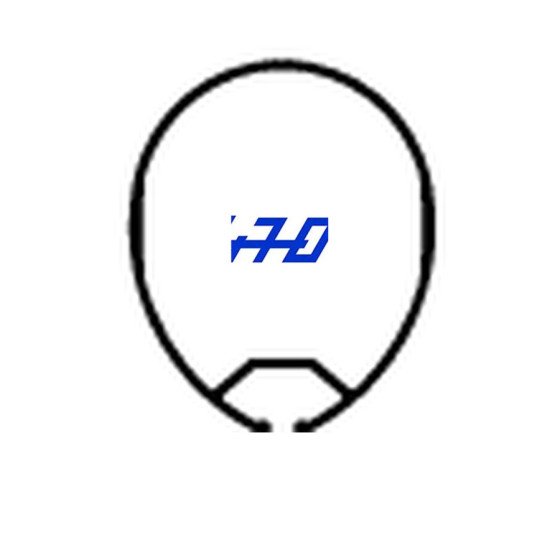

All 470 masts are made from 6082T6 aluminium. CNC plasma cut tapers for ultimate accuracy and consistency Heat treated after tapering increases material hardness. Durable peened finish. Welded in headbox. Optional dealer fit halyard lock. Fittings Ball bearing spinnaker halyard and pole lift boxes. Fully adjustable spreader system. Vernier spreader length adjusters. Gooseneck with stainless steel spigot and positive lock. Optional extended gooseneck. Automatic release of outhaul and boom squares further downwind. Integrated take off for rig tension system. Alto Cumulus Section weight: 1.073 kg/mDimension fore/aft: 70.5 mmDimension athwart: 59.5 mmStiffness fore/aft: 21.49 cm4Stiffness athwart: 14.96 cm4 Section weight: 1.04 kg/m Dimension fore/aft: 70.5 mm Dimension athwart: 58.7 mm Stiffness fore/aft: 20.41 cm4 SStiffness athwart: 14.4 cm4

Includes the following items required to make your mast fully functional. Wire Shrouds and Forestay Main and Jib Halyards Spinnaker Halyard and Pole Up Haul

470 Booms - two options Olympus and Ultima The Olympus section is very popular. This very thin walled section was developed specifically for the 470 and is both stiff and light. It is supplied with a 2:1 internal outhaul and three heavy duty attachment points.

Tapered aluminium spinnaker pole with 42 mm centre diameters, tapering down to 25 mm at each end. This gives maximum stiffness in the area of maximum load, yet keeps the pole down to minimum weight. Supplied with or without the lifting eye.
