45 mm Aluminum Element Fiddle Block - Swivel

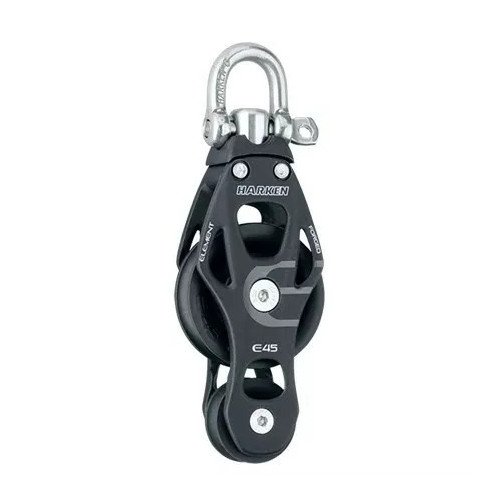

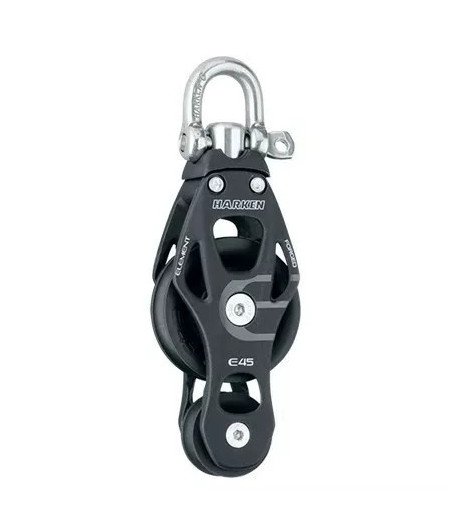

Harken 6232 – 45 mm Element Fiddle Swivel Block

The 6232 differs from a conventional single Element block by using a fiddle layout, with two different-sized sheaves arranged within one compact body. This makes it suited to multi-part purchase systems where space is limited and two line parts need to pass through the moving block.

The swivel head helps the fitting align with the direction of load and can be locked where a controlled orientation is required. Harken specifies a maximum 8 mm line diameter, 700 kg maximum working load and 1,400 kg breaking load for the 6232.

Element construction combines forged hardcoat-anodised aluminium sideplates, composite sheaves with journal bearings and stainless-steel attachment hardware.
