Seldén Furlex 304TDE Electric Furler | 8-10mm Forestay Forestay Termination Standard Sta-lok Terminal Forestay Diameter 8 mm 304E Control Pack Not Required Max. Forestay Length 15260 mm

Seldén Furlex 304TDE for 8mm and 10mm Forestays

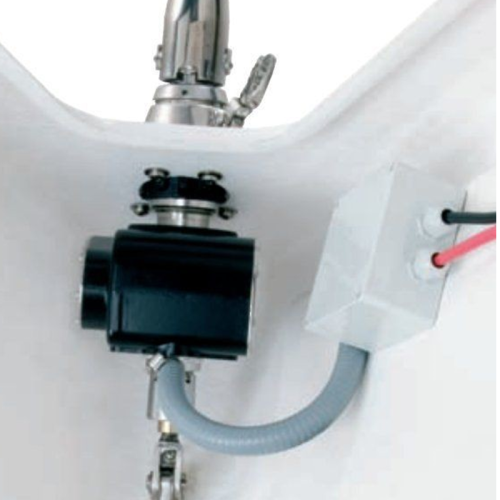

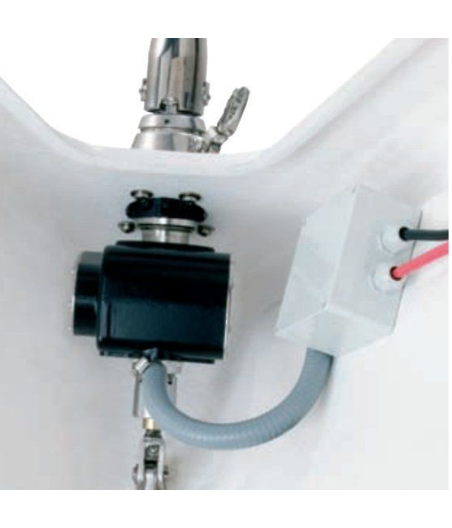

The Furlex 304TDE provides electrically powered headsail furling in a through-deck installation for 8mm and 10mm forestays. The drive is located below deck while the sail tack can be positioned closer to deck level.

Seldén's current Furlex Electric system operates with a 42V drive supplied through the appropriate PSU from the yacht's 12V or 24V electrical system. The 304 electric drive family develops up to 90 Nm maximum torque.

304TDE assembly matrix

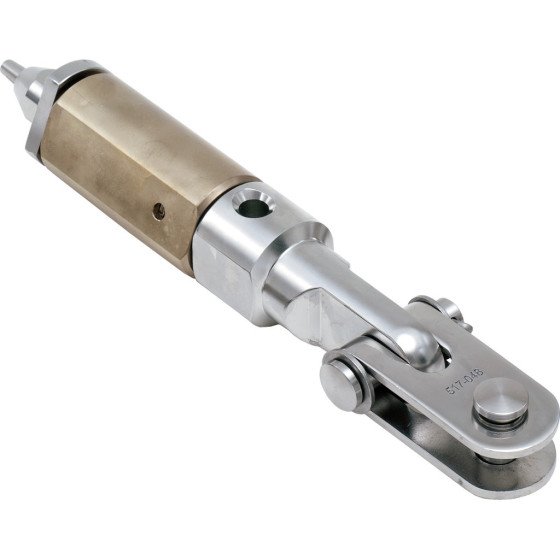

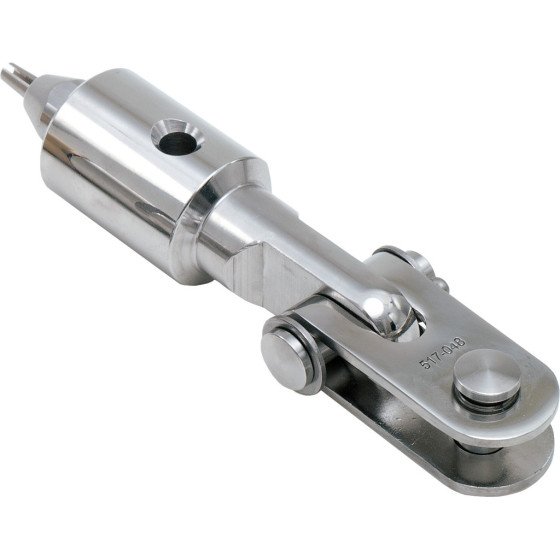

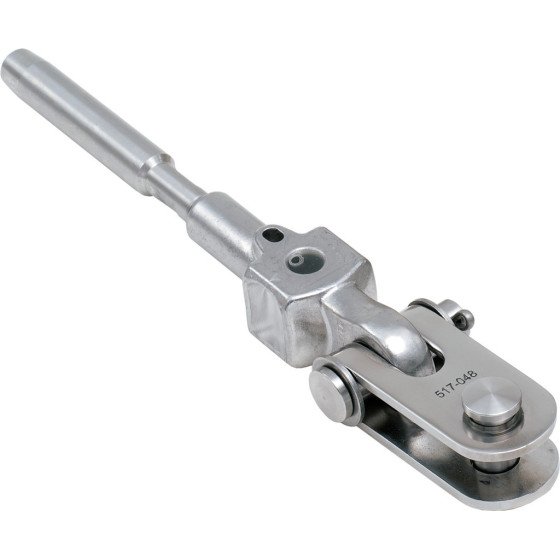

Forestay	Max length	Standard Sta-Lok	Rigging screw	Swaged terminal
8mm	15,260mm	042-031-131	042-031-141	042-031-151
8mm	17,660mm	042-031-132	042-031-142	042-031-152
10mm	15,260mm	042-031-133	042-031-143	042-031-153
10mm	17,660mm	042-031-134	042-031-144	042-031-154
10mm	20,060mm	042-031-135	042-031-145	042-031-155

Forestay

Max length

Standard Sta-Lok

Rigging screw

Swaged terminal

8mm

15,260mm

042-031-131

042-031-141

042-031-151

8mm

17,660mm

042-031-132

042-031-142

042-031-152

10mm

15,260mm

042-031-133

042-031-143

042-031-153

10mm

17,660mm

042-031-134

042-031-144

042-031-154

10mm

20,060mm

042-031-135

042-031-145

042-031-155

304TDE control packs

532-815-63 – Genoa

532-815-64 – Cutter

532-815-65 – Buttons excluded

The 304TDE assembly and control pack are selected separately. Where the yacht does not already have compatible Seldén power-supply equipment, see the Power Supply Unit start packs.

204TDE or 304TDE?

The 204TDE covers 6-8mm forestay wire, while the 304TDE covers 8mm and 10mm wire. Forestay length, lower termination and the required control arrangement must also be checked.

Send us your yacht and forestay details if you would like our riggers to check the configuration before ordering.

Write your review

Seldén Furlex 304TDE Electric Through-Deck Furler

The Seldén Furlex 304TDE is the electric through-deck model for 8mm and 10mm forestays. It combines powered furling with a below-deck drive arrangement, leaving less equipment exposed on the foredeck.

Five forestay configurations cover lengths up to 20.06m, with standard Sta-Lok, integrated rigging-screw and swaged-terminal options plus dedicated 304E control packs.
