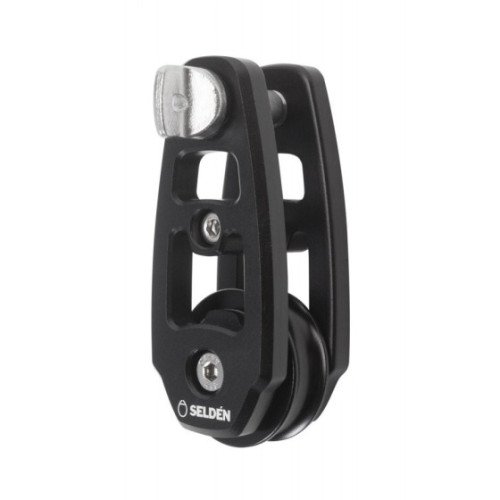

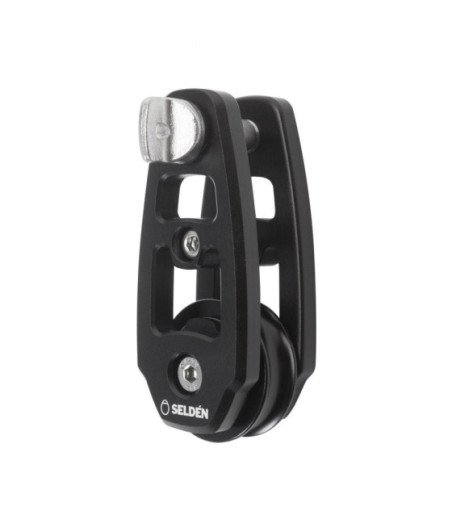

40 mm Hi-Load Plain Bearing Block for CX25 - 2:1 Halyard, High Load

2:1 halyard block for Seldn CX25 Code Zero furler.

Machined and hard anodized aluminium block with captive pin. Acetal sheave.

To boost the performance when using a Code Zero, the halyard load
must be higher than what normal halyard boxes and stoppers
can handle. Therefore, a 2:1 purchase needs to be arranged by
fixing the dead end of the halyard in the mast and letting it run
through a block attached to the halyard swivel. Position on the
mast must be specified by Seldn. In most cases Code Zero sails
need to be hoisted lower than gennakers and spinnakers.

Sheave Diameter: 40 mm
L1: 83 mm
L2: 26 mm
W: 18 mm
D: 10 mm
Safe working Load: 2500 kg
Breaking Load: 5000 kg
Max line size: 12 mm
Match: CX25

40 mm Hi-Load Plain Bearing Block for CX25 - 2:1 Halyard, High Load
SKU: 404-501-01R
Series: CX/GX Downwind Furlers
