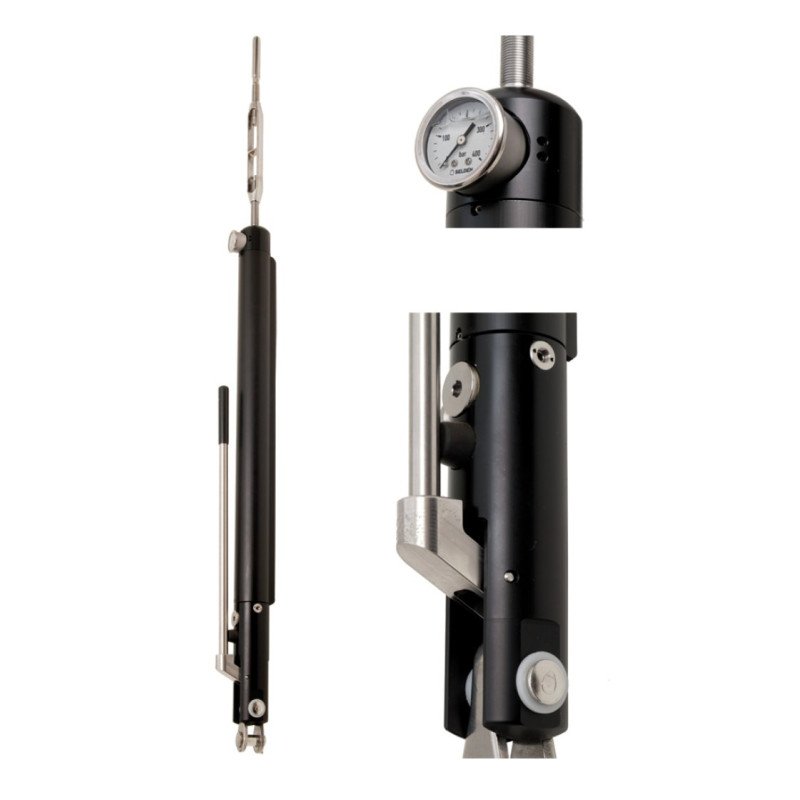

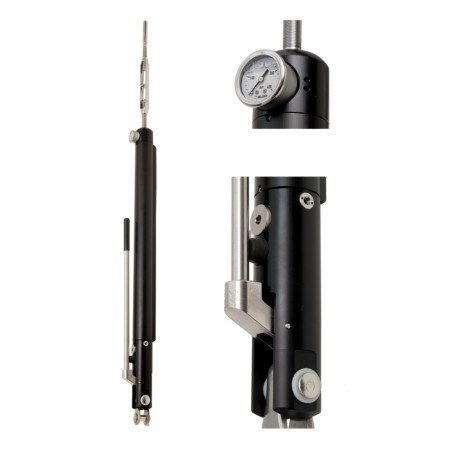

Selden Hydraulics Adjusters
  • Selden Hydraulics Adjusters

Hydraulics Adjusters

Fast and convenient adjustment of the main trim functions is vital both for the racing sailor and for the cruising sailor. Just being able to tension the forestay and adjust the halyard  tension and outhaul will make any boat point higher, sail faster and under better control. Seldén has developed a range of hydraulic cylinders that are easy to use and of a quality  that ensures long service life. The rods are marine grade stainless steel and the cylinders black anodized or clear anodized aluminium.

The tensioners have long stroke making it possible to try out different mast rakes. The control panels are available for single function  or 4-functions and feature an adjustable relief valve to prevent overload.

Selden Hydraulics Adjusters

Hydraulics Adjusters

£2,190.72
inc. VAT

w3c

Vang Type :
Vang Colour :
Quantity :
In Stock at Distributor (typically delivered within 2-3 weeks)



Our Delivery Policy



Returning Your Order - Our policy

Part No Description Anodization Pulling force at max working pressure (kN) Pulling force at 250 bar, electric pump Max working pressure, bar (psi) Max return force (kN) Stroke (mm) Min c-c pin-to-pin (mm)
580-033-10 HV-46 Vang Clear 44 31 245 (5000) 8,4 280 2400
580-034-10 Black
580-035-10 HV-69 Vang Clear 57 46 12 280 2650
580-036-10 Black
580-017-501  HV-89 Vang Clear 138 89 25 40 2300
580-018-501 Black
580-033-10

Hydraulics-Data-Sheet

Download Product Details Hydraulic Adjusters Details

Download (3.19MB)
