60mm Harken Elements Blocks

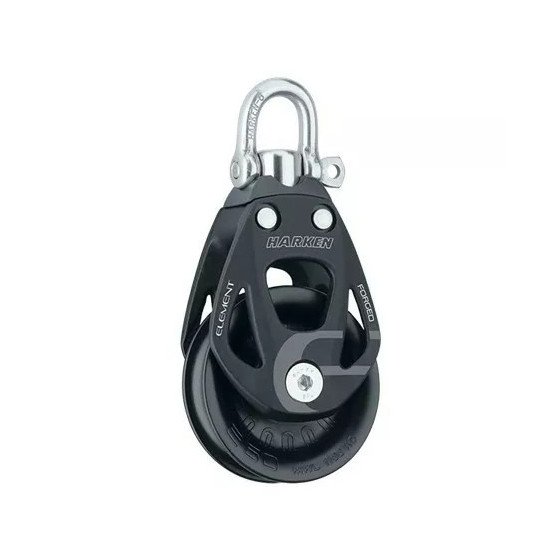

Harken Element 6260 is a 60 mm single swivel block with hardcoat-anodised aluminium sideplates and composite journal-bearing sheave. Maximum 14 mm line, 1100 kg maximum working load and 2200 kg breaking load.

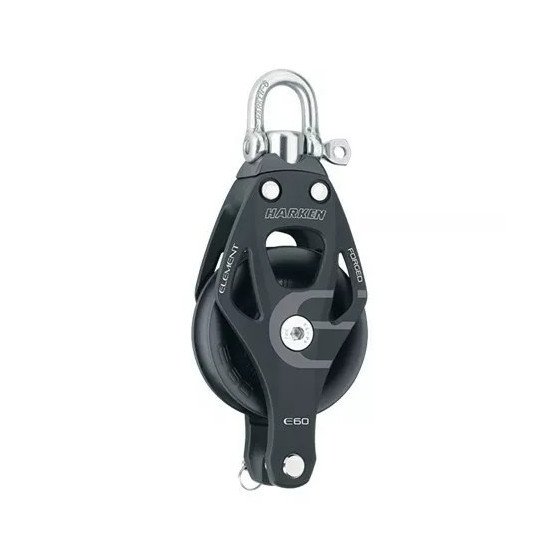

Harken Element 6261 is a 60 mm single swivel block with an integral becket. The becket provides an attachment point for the standing end of the line, making this version particularly useful when building multi-part purchase systems. Maximum line: 14 mm Maximum working load: 1,100 kg Breaking load: 2,200 kg Single sheave with swivel attachment Integral becket

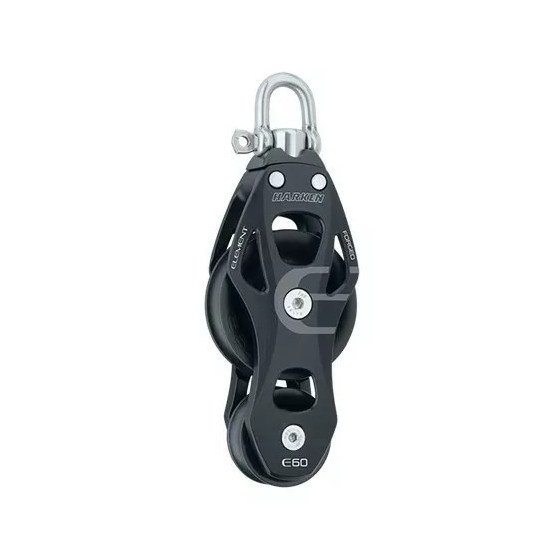

Harken Element 6262 is a 60 mm fiddle swivel block for compact multi-part tackles. Hardcoat-anodised aluminium construction, maximum 10 mm line, 1100 kg maximum working load and 2200 kg breaking load.

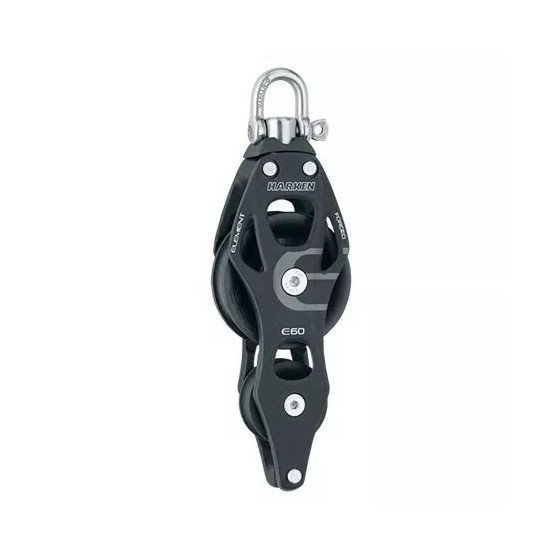

Harken Element 6263 is a 60 mm fiddle swivel block with integral becket for terminating the standing end of a purchase. Maximum 10 mm line, 1100 kg maximum working load and 2200 kg breaking load.

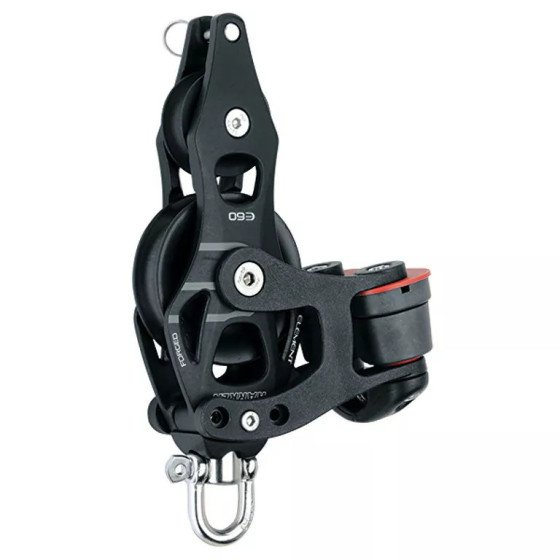

Harken Element 6264 combines a 60 mm fiddle swivel block, integral becket and cam cleat for a compact complete purchase system. Maximum 10 mm line, 550 kg maximum working load and 1100 kg breaking load.

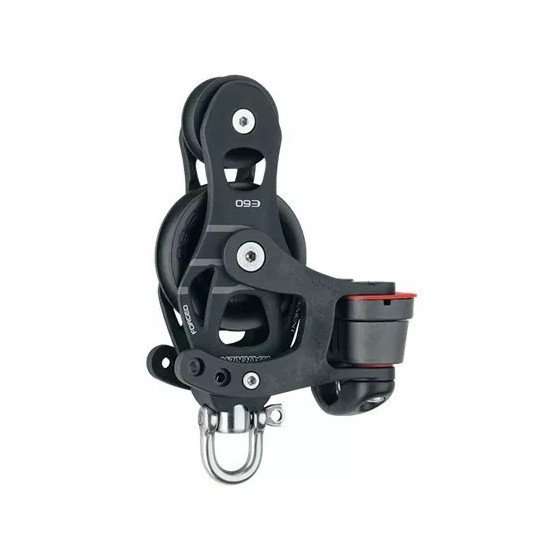

Harken Element 6265 is a 60 mm fiddle swivel block with integrated cam cleat for local control of the working line. Maximum 10 mm line, 408 kg maximum working load and 816 kg breaking load.

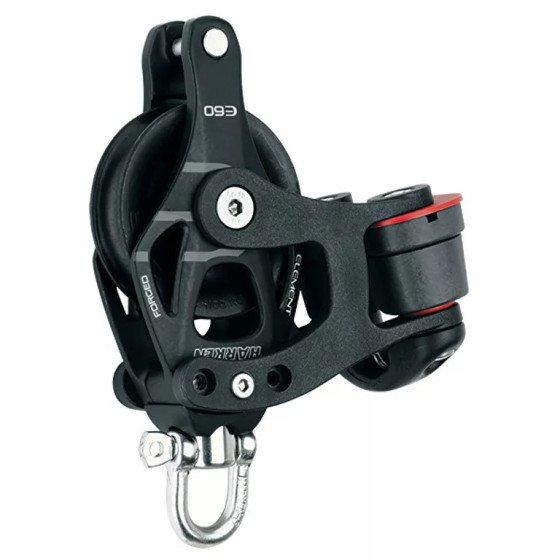

Harken Element 6266 is a 60 mm single swivel block with becket and integrated cam cleat for compact control-line purchases. Maximum 12 mm line, 272 kg maximum working load and 544 kg breaking load.

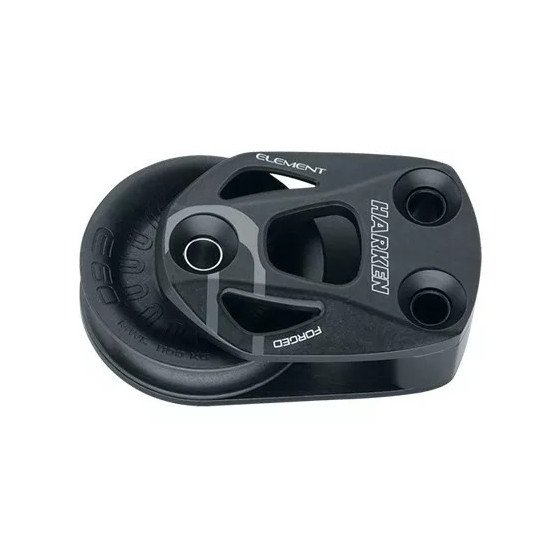

Harken Element 6267 is a 60 mm single footblock for permanent deck or coachroof line leads. Hardcoat-anodised aluminium construction, maximum 14 mm line, 1100 kg maximum working load and 2200 kg breaking load.

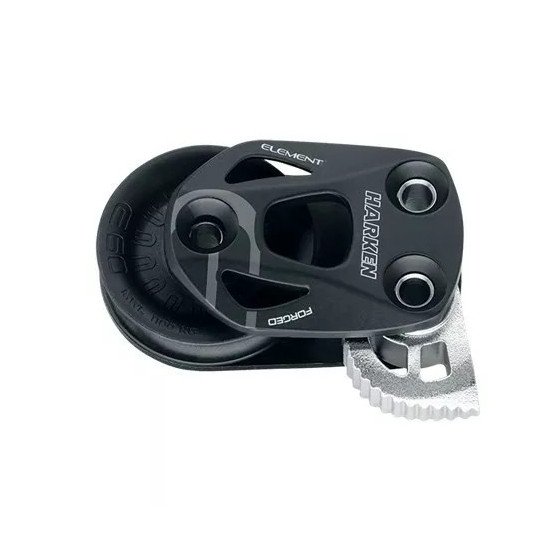

Harken Element 6268 is a 60 mm lockoff footblock for changing line direction at deck level while providing local lockoff control. Maximum 14 mm line, 1100 kg maximum working load and 2200 kg breaking load.

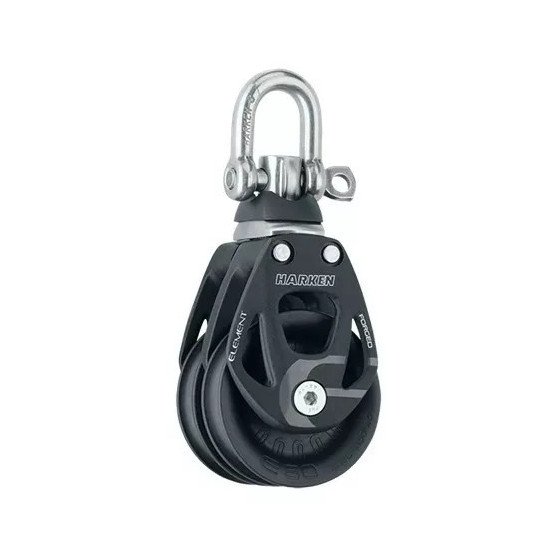

Harken Element 6269 is a 60 mm double swivel block carrying two sheaves in one swivelling fitting. It is designed for multi-part tackle systems where two running line parts need to pass through the same moving block. Maximum line: 14 mm Maximum working load: 1,375 kg Breaking load: 2,750 kg Double-sheave configuration Swivel attachment

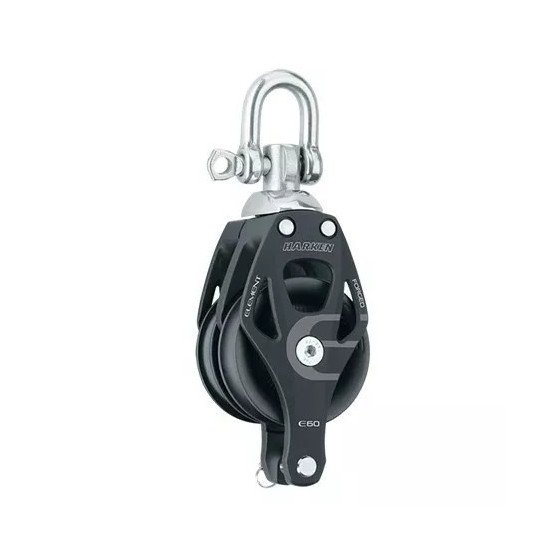

Harken Element 6270 is a 60 mm double swivel block with integral becket for multi-part purchase systems. Maximum 14 mm line, 1375 kg maximum working load and 2750 kg breaking load.

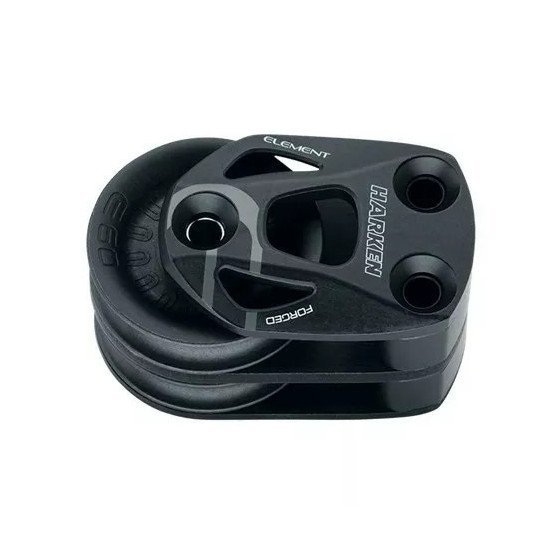

Harken Element 6271 is a 60 mm double footblock providing two permanent deck-level line leads in one fitting. Maximum 14 mm line, 725 kg maximum working load and 1450 kg breaking load.

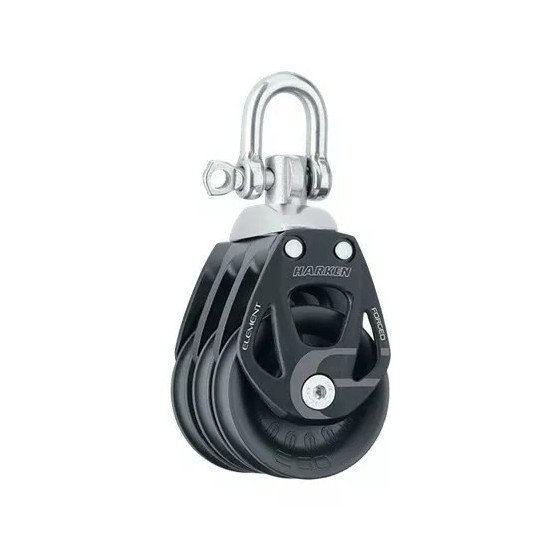

Harken Element 6272 is a 60 mm triple swivel block for higher-purchase tackle systems carrying three line parts. Maximum 14 mm line, 1650 kg maximum working load and 3300 kg breaking load.

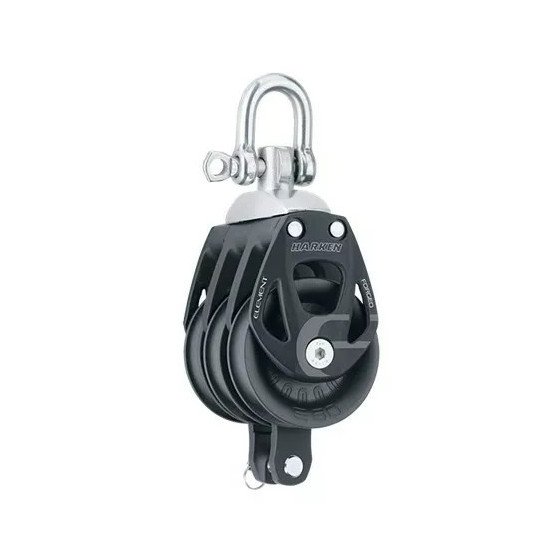

Harken Element 6273 is a 60 mm triple swivel block with integral becket for high-purchase tackle systems. Maximum 14 mm line, 1650 kg maximum working load and 3300 kg breaking load.

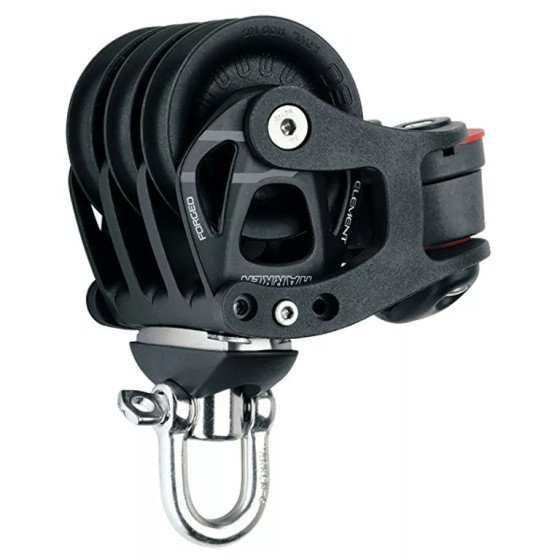

Harken Element 6274 is a 60 mm triple swivel block with integrated cam cleat for high-purchase trimming systems with local line control. Maximum 12 mm line, 680 kg maximum working load and 1360 kg breaking load.

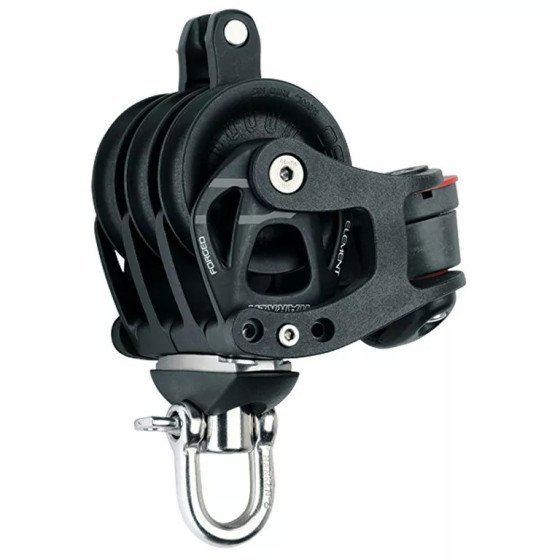

Harken Element 6275 combines a 60 mm triple swivel block, integral becket and cam cleat for a complete high-purchase control system. Maximum 12 mm line, 816 kg maximum working load and 1632 kg breaking load.

Harken Element 6276 is the left-hand 60 mm lockoff footblock for permanent deck-level line redirection and local lockoff control. Maximum 14 mm line, 1100 kg maximum working load and 2200 kg breaking load.

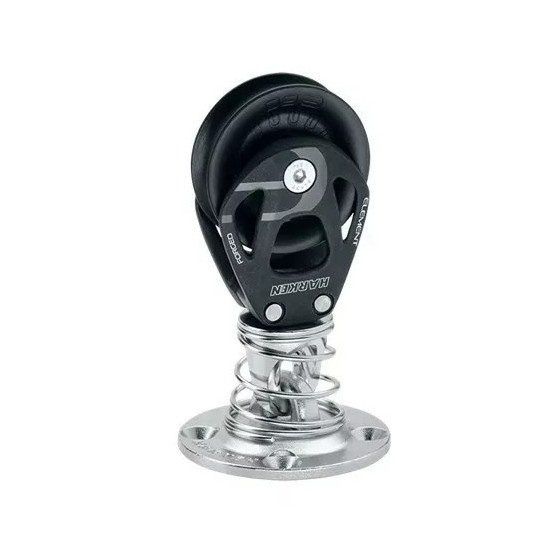

Harken Element 6277 is a 60 mm stand-up block that remains presented towards the incoming line at a deck or padeye attachment. Maximum 14 mm line, 1100 kg maximum working load and 2200 kg breaking load.
