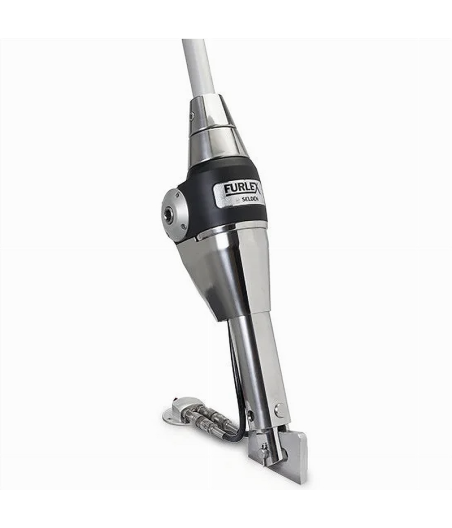

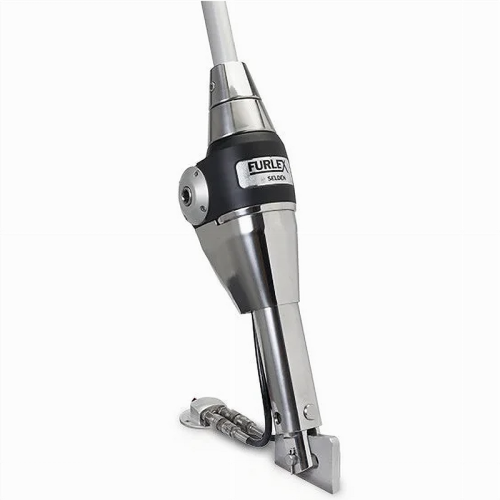

Furlex Hydraulic
0 Review(s)SAILING FROM THE COCKPIT AT THE PRESS OF A BUTTON
A hydraulic powered Furlex system enables you to reef, furl and trim the sail area to suit the wind conditions at the touch of a button. The patented, built-in motor has a direct drive to the worm gear, to keep moving parts to a minimum and increase power, efficiency and reliability. The worm gear, which is self-braking, locks the sail in the required position. In an emergency, the foresail can also be manually furled and unfurled with an ordinary winch handle.
The Furlex Hydraulic is designed to provide a harmonious visual interplay of stainless steel and aluminium. The hydraulic motor is located inside the worm gear and the positioning of the motor contributes to the compact design of the Furlex Hydraulic.

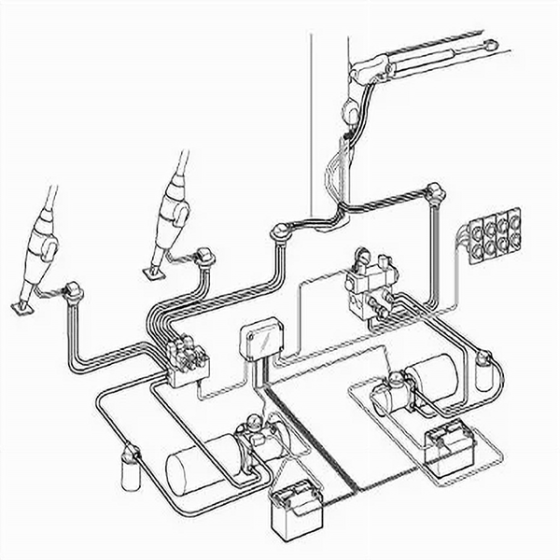

A Furlex Hydraulic is typically combined with a hydraulic driven furing mast. The complete system includes a hydraulic pump, valve units and drive units, all connected by hydraulic hosing.

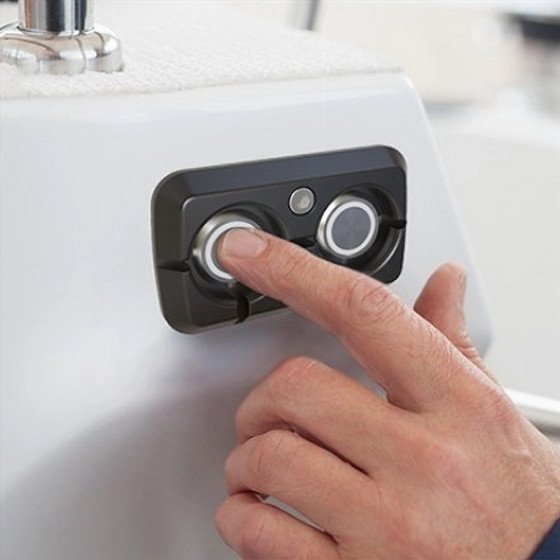

The system is operated from the cockpit by control switches connected to the system through a control box.
If you need any help choosing the right Furlex please get in touch and one of our rigging experts can advise you.
Our Delivery Policy
Returning Your Order - Our policy
Type Forestay Dia (mm) Max. Forestay Len (m) Motor Designation Part No 300H 8 15.5 OML 12.5 039-027-70 17.9 039-027-71 10 15.5 039-027-72 17.9 039-027-73 20.3 039-027-74 400H 12 17.7 OML 12.5 039-027-75 20.1 039-027-76 22.5 039-027-77 17.7 OML 20 049-034-95 20.1 049-034-96 22.5 049-034-97 14 20.1 OML 12.5 049-034-78 22.5 049-034-79 20.1 OML 20 049-034-98 22.5 049-034-99 500H 16 23.0 OMM 20 060-046-50 27.8 060-046-51 60 (rod) 27.8 060-046-70 32.6 060-046-71 40 (rod) 23.0 060-046-80 27.8 060-046-81 48 (rod) 23.0 060-046-90 27.8 060-046-91 32.6 060-046-92
