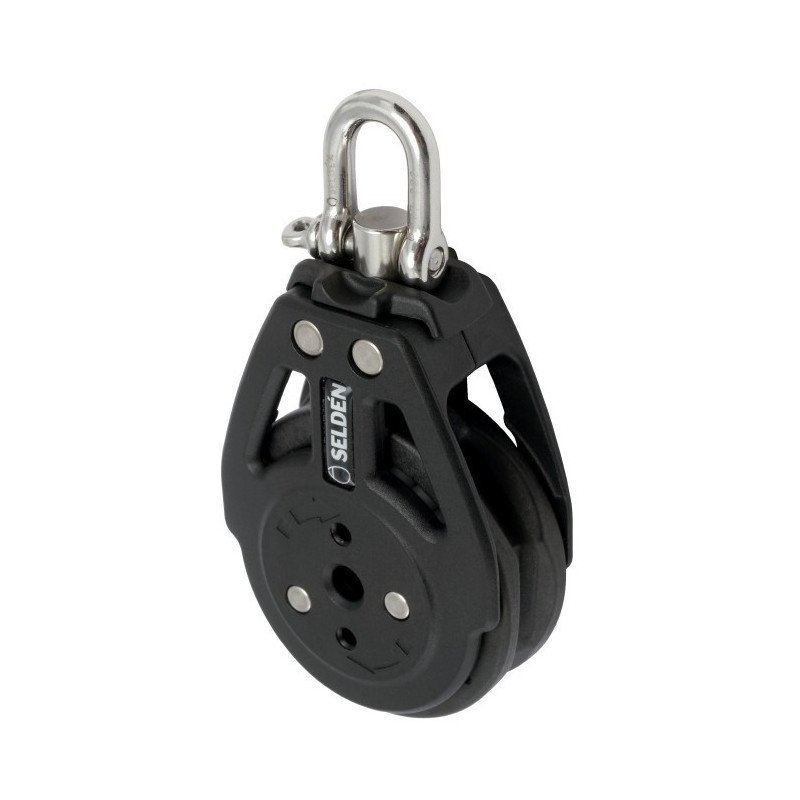

Seldén 45mm Automatic Rathet Block
  • Seldén 45mm Automatic Rathet Block

45mm Automatic Ratchet Block

Seldén
£87.79

Seldén

inc. VAT Typically delivered within 4-7 days
0 Review(s)

These blocks are designed with lightweight ø5 mm Delrin ball bearings and are available either with a composite sheave or an aluminium sheave.
More grip and the ability to cope with relative thin lines.
The sheave automatically changes from free-turning to ratchet when the load increases - the sailor decides when the automatic ratchet kicks in.
The switch-over point is set using an allen key to adjust a screw inside the sheave -fast, simple, precise.

Seldén 45mm Automatic Rathet Block
45mm Automatic Ratchet Block
£87.79

Seldén

inc. VAT Typically delivered within 4-7 days
Quantity :
Ask a Question
Write review



Our Delivery Policy



Returning Your Order - Our policy

Technical specifications

  • Sheave diameter: 45 mm
  • Maximum line diameter: 8 mm
  • Safe / maximum working load: 150 kg
  • Breaking load: 300 kg
  • Weight: 64 g
  • Bearing type: Ball bearing

Seldén 45 mm Automatic Ratchet Block 404-401-01 is the single-swivel composite-sheave version of Seldén’s automatic ratchet range. At low load the sheave runs freely; as load increases the ratchet engages automatically to increase sheet grip and reduce holding effort. The engagement point is adjustable with an Allen key. Seldén specifies a safe working load of 150 kg, breaking load of 300 kg and maximum 8 mm line. It is designed particularly for dinghy mainsheets and spinnaker sheets where automatic ratchet assistance is useful.

404-401-01
