Seldén Furlex 30S Jib Furling System

Why Choose the Furlex 30S?

The 30S keeps the 2500 mm sail-LP limit of the smaller 20S but increases the forestay specification from 3 mm to 4 mm and the maximum forestay working load from 500 kg to 900 kg.

That makes it particularly relevant where the 20S is too small for the stay load or furling-line capacity, without moving up to the larger-sail 40S.

30S Key Figures

• Forestay: 4 mm
• Forestay working load: 900 kg maximum
• Halyard-swivel working load: 300 kg maximum
• Sail LP: 2500 mm maximum recommended
• Furling line: 4 mm

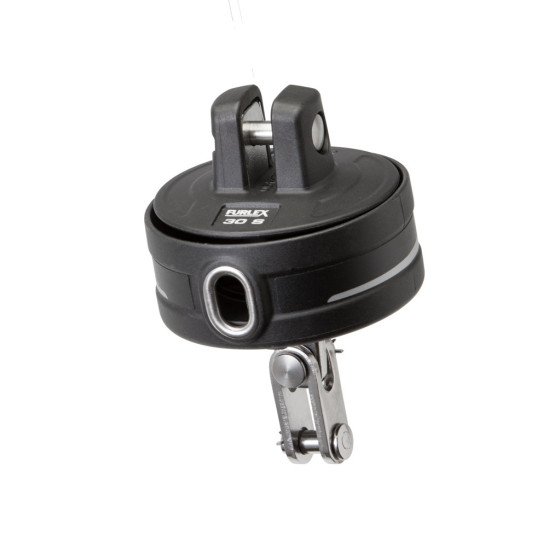

• Drum diameter: 85 mm

Complete Kit 539-490-11

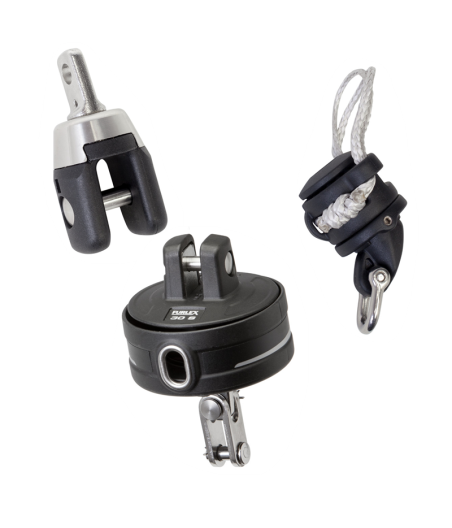

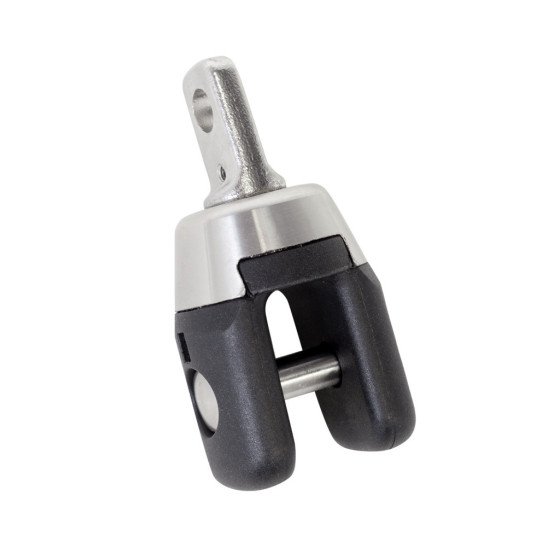

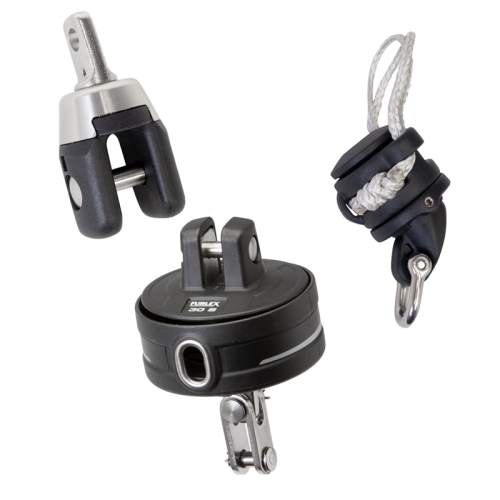

Seldén article 539-490-11 contains the top swivel, halyard swivel, drum, tack fitting and furling line.

The forestay wire is not included, allowing the 4 mm stay to be made to suit the individual installation.

Where It Sits in the Range

Choose the 20S for a 3 mm stay and lighter loads. The 30S moves to 4 mm wire while retaining the 2500 mm LP limit. The 40S also uses 4 mm wire but increases maximum recommended LP to 3000 mm.

Like the other small Furlex models, the jib rolls around the stay rather than a surrounding foil, so the system is intended for furling the sail away rather than sailing with it partly rolled.

Compare the Seldén Furlex 20S, 30S and 40S range, or ask our rigging team to check the existing stay and sail measurements.
