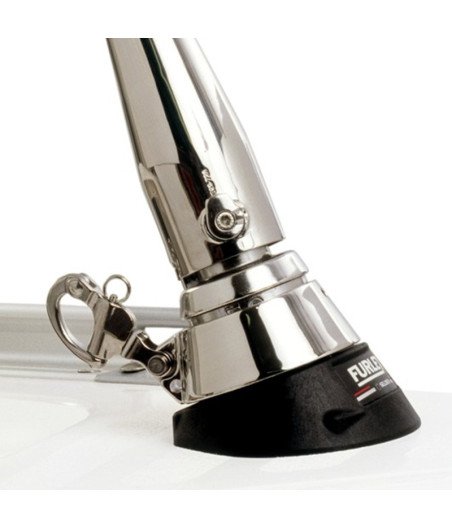

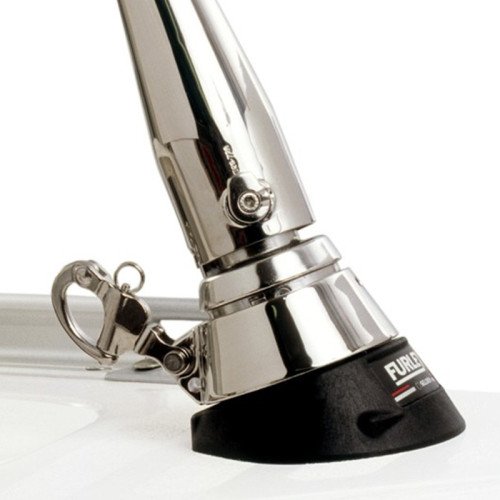

Seldén Furlex 404TD Through-Deck Furler

Seldén Furlex 404TD Through-Deck Furling System

The Furlex 404TD is the through-deck manual Furlex configuration for 12mm and 14mm forestays. The furling drum is installed beneath the deck, reducing equipment above deck and allowing the headsail tack to sit lower.

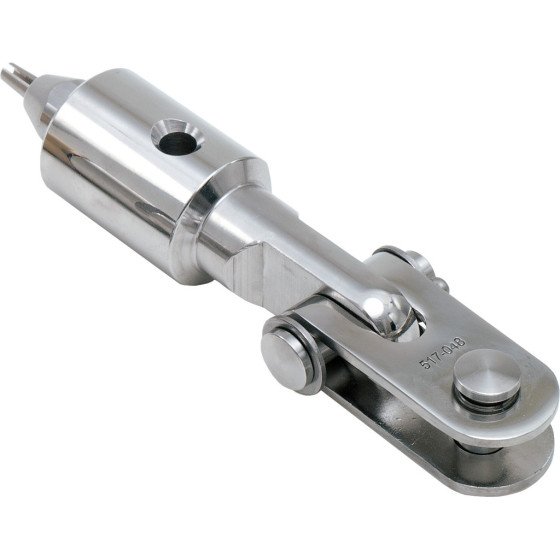

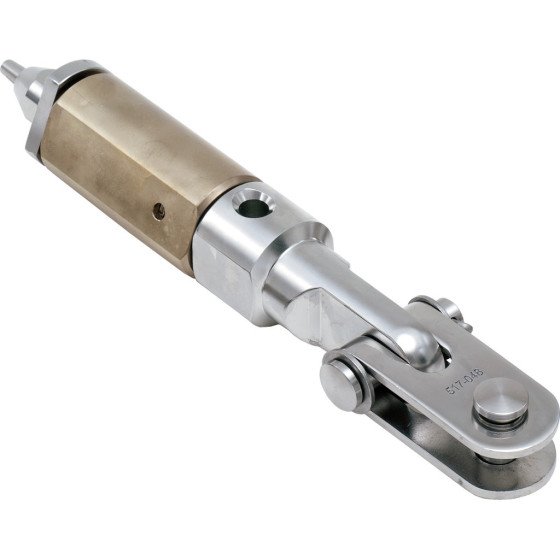

The 404TD range extends to maximum forestay lengths of 22.18m and is available with standard Sta-Lok, integrated rigging-screw or stud-terminal lower fittings.

404TD configuration matrix

Forestay	Max length	Standard Sta-Lok	Rigging screw	Stud for swaging
12mm	17,380mm	052-038-31	052-038-36	052-038-41
12mm	19,780mm	052-038-32	052-038-37	052-038-42
12mm	22,180mm	052-038-33	052-038-38	052-038-43
14mm	19,780mm	052-038-34	052-038-39	052-038-44
14mm	22,180mm	052-038-35	052-038-40	052-038-45

Availability note: not every 404TD configuration in the Seldén range is currently selectable online. Please contact us for current availability and pricing where a required combination is not shown in the product options.

Choosing the correct 404TD

Selection depends on forestay diameter, finished forestay length and the required lower termination. These details should be checked against the existing rig before ordering.

Contact Martin Leaning Masts & Rigging for specification assistance, or view the complete Furlex TD range.

Part No. 052-038-31

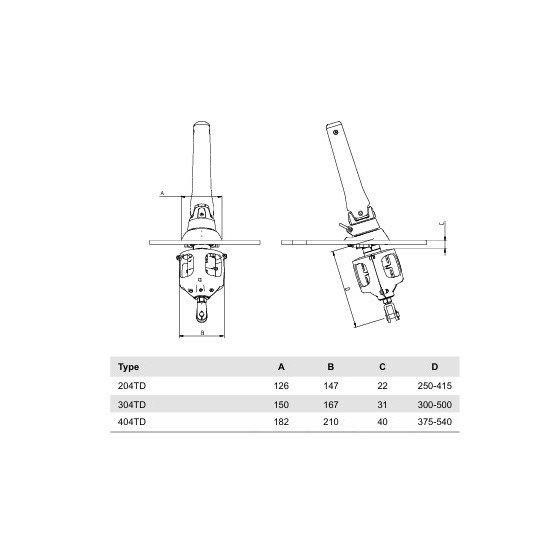

Furlex TD Data Sheet

Download (388.29KB)

This product has no reviews!

Write your review

Seldén Furlex 404TD Through-Deck Furler

The Seldén Furlex 404TD is the manual through-deck model for 12mm and 14mm forestays. The below-deck drum arrangement provides a clear foredeck and supports longer-luff headsail installations.

The 404TD family covers forestays up to 22.18m with standard Sta-Lok, integrated rigging-screw and stud-terminal configurations.

Compare Furlex TD systems or contact our rigging team for availability and specification assistance.
