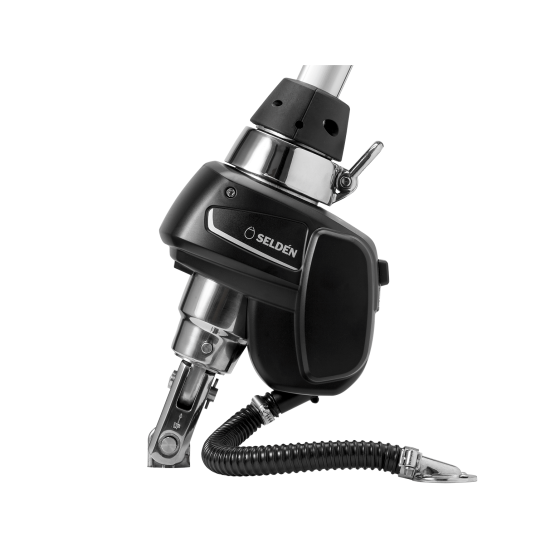

The new Furlex 404E features a durable composite outer shell and a highly efficient 48V electric motor. The DC/DC control box converts the boat’s 12V or 24V to 48V which allows for streamlined cables to the motor unit, easy installation and a compact design.
The push-button function of the Furlex Electric makes pulling on a furling line a thing of the past. You can now also adjust the speed at which the sail is furled with the new two speed function. An attractive, labour saving addition to any foredeck.

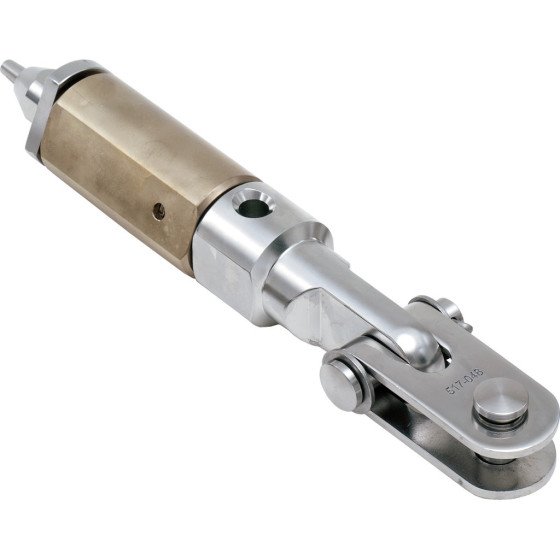

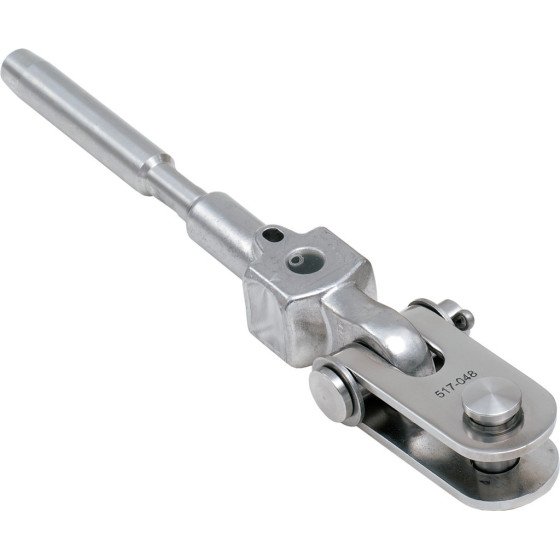

Similar to previous Furlex models, the standard kit requires that the wire is cut to length and fixed with a ‘Sta-lok’ mechanical wire locking system. A completely integrated rigging screw is offered as an option. It allows for adjustment of the forestay length without altering the height of the tack attachment. You can choose the type of termination, either Standard Sta-lok Terminal, Sta-lok Terminal & Rigging Screw or a Swaged Terminal.
If you need any help choosing the right Furlex please get in touch and one of our rigging experts can advise you.
You will also need the appropriate Control Pack and if you haven't already installed a Selden Power Supply on your boat you will also need to choose one of these on Power Supply Unit Start Packs.
For further information please see the Selden Electric Furling Data Sheet.
Please select the forestay diameter/length and termination you require and the type of Control Pack required.
Our Delivery Policy
Returning Your Order - Our policy
When you're sailing a yacht over 50 feet, headsail handling becomes more than a convenience—it’s a matter of control, safety, and endurance. The Furlex 404E is Seldén’s top-tier electric furling system, engineered for yachts up to 20 tonnes displacement. It combines the mechanical strength of the manual 404S with a powerful 48V motor, giving you push-button control over your headsail in any condition.
Whether you're crossing oceans or navigating tight anchorages, the 404E delivers the kind of performance that serious sailors demand.
The 404E uses a high-torque 48V motor, powered via a DC/DC converter from your boat’s 12V or 24V system. This setup ensures efficient energy use, clean cabling, and reliable furling under heavy sail loads.
The system is designed to work with Seldén’s SEL-Bus network, allowing seamless integration with onboard controls and optional remote operation. This ensures safe, centralized management of sail handling.
Choose between slow-speed reefing for precision or fast furling when dropping sail quickly. The two-speed function adapts to your sailing needs and conditions.
The motor unit is enclosed in a glass fibre-reinforced composite shell, offering corrosion resistance and a sleek, low-profile design that blends into modern foredecks.
The 404E can be retrofitted to existing Furlex 404S or 404TD systems, making it a smart upgrade for sailors who want electric convenience without replacing their entire furling setup.
| Specification | Value |
|---|---|
| Max Boat Displacement | 20,000 kg |
| Forestay Diameter Options | 10 mm, 12 mm, 14 mm |
| Max Forestay Length | ~22 m |
| Motor Voltage | 48V (via 12/24V converter) |
| Control Options | Genoa, Cutter, SEL-Bus |
| System Weight | ~33.5 kg |
| Termination Options | Sta-Lok, Swaged, Rigging Screw |
The Furlex 404E is delivered as a complete installation kit, including:
Installation should be performed by a qualified marine electrician or professional rigger due to the system’s complexity and power requirements.
The 404E is built to handle high loads and large headsails with ease. Sailors report quiet, powerful furling even in heavy weather, with consistent torque and low friction. The system includes safety features to prevent overloading and jamming, and the motor enters sleep mode when not in use to conserve energy.
Push-button control from the cockpit means no more winching or wrestling with furling lines—especially valuable when sailing short-handed or in rough conditions.
The Furlex 404E is best suited for:
The Furlex 404E is the ultimate solution for headsail management on large yachts. With its powerful motor, smart integration, and rugged construction, it offers unmatched control and convenience for serious sailors.
| Forestay dia. Ø (mm) | Max Forestay Len (mm) | Complete kit including... | ||
|---|---|---|---|---|
| Standard Sta-lok Terminal Part No | Sta-lok Terminal & Rig Screw Part No | Swaged Terminal | ||
| 12 | 17700 | 052-038-01 | 052-038-01 | 052-038-11 |
| 20100 | 052-038-02 | 052-038-02 | 052-038-12 | |
| 22500 | 052-038-03 | 052-038-03 | 052-038-13 | |
| 14 | 20100 | 052-038-04 | 052-038-04 | 052-038-14 |
| 22500 | 052-038-05 | 052-038-05 | 052-038-15 | |
