Seldén Furlex 204TDE Electric Furler | 6-8mm Forestay Max. Forestay Length 10500 mm Forestay Termination Standard Sta-lok Terminal Forestay Diameter 6 mm 204E Control Pack Not Required

Seldén Furlex 204TDE Electric Through-Deck Furler

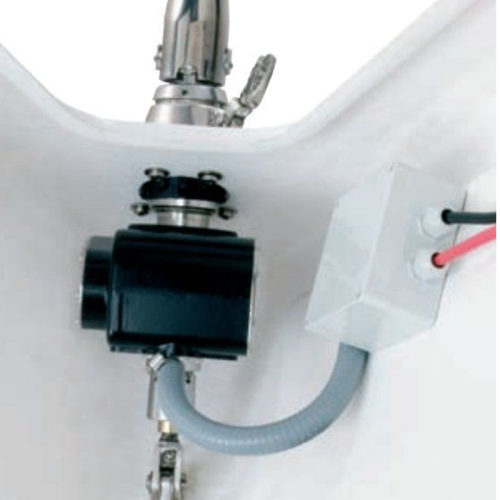

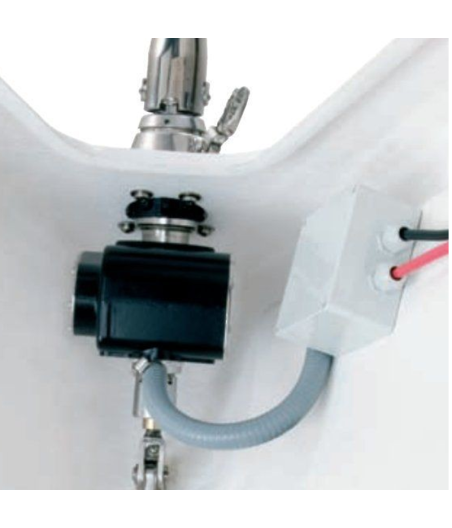

The Furlex 204TDE combines the through-deck layout of the Furlex TD system with Seldén electric furling. It is configured for 6mm, 7mm and 8mm forestays and provides powered headsail furling while keeping the drive installation below deck.

The current Furlex Electric system uses a 42V electric drive. A Seldén PSU converts the yacht's 12V or 24V supply to the voltage required by the motor system. The 204 electric drive family has a maximum torque of 60 Nm.

204TDE forestay configurations

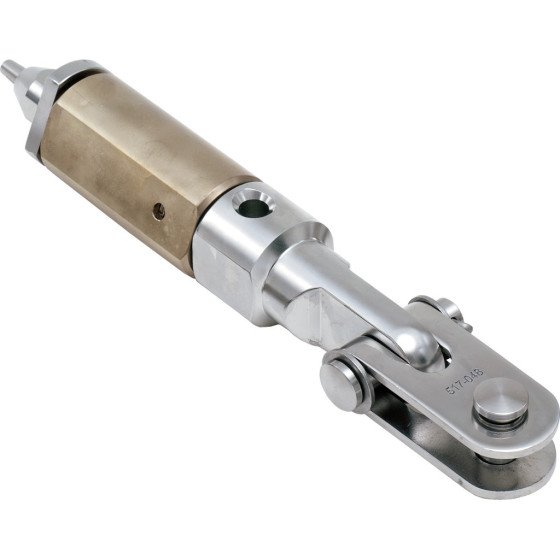

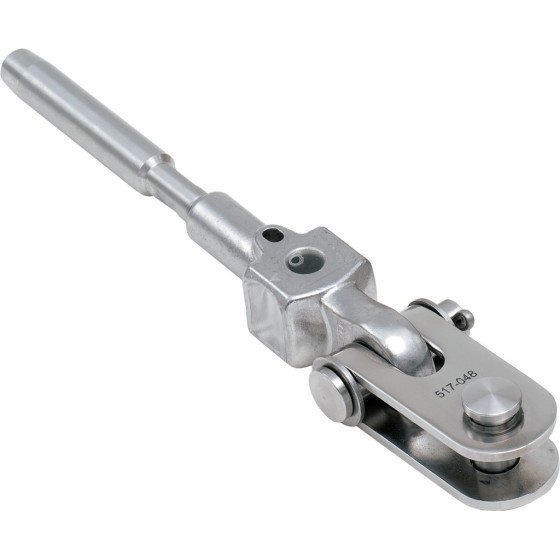

Forestay	Max length	Standard Sta-Lok	Rigging screw	Swaged terminal
6mm	10,500mm	035-025-131	035-025-141	035-025-151
6mm	12,900mm	035-025-132	035-025-142	035-025-152
6mm	15,300mm	035-025-133	035-025-143	035-025-153
7mm	12,900mm	035-025-134	035-025-144	035-025-154
7mm	15,300mm	035-025-135	035-025-145	035-025-155
7mm	17,700mm	035-025-136	035-025-146	035-025-156
8mm	15,300mm	035-025-137	035-025-147	035-025-157
8mm	17,700mm	035-025-138	035-025-148	035-025-158

Forestay

Max length

Standard Sta-Lok

Rigging screw

Swaged terminal

6mm

10,500mm

035-025-131

035-025-141

035-025-151

6mm

12,900mm

035-025-132

035-025-142

035-025-152

6mm

15,300mm

035-025-133

035-025-143

035-025-153

7mm

12,900mm

035-025-134

035-025-144

035-025-154

7mm

15,300mm

035-025-135

035-025-145

035-025-155

7mm

17,700mm

035-025-136

035-025-146

035-025-156

8mm

15,300mm

035-025-137

035-025-147

035-025-157

8mm

17,700mm

035-025-138

035-025-148

035-025-158

204TDE control packs

532-815-60 – Genoa control pack

532-815-61 – Cutter control pack

532-815-62 – Control pack excluding buttons

The selected Furlex assembly and control pack are combined to create the required installation. If suitable Seldén electrical equipment is not already installed, see our Seldén Power Supply Unit start packs.

Need help specifying a 204TDE?

Selection depends on forestay diameter, finished forestay length, lower termination and control arrangement. Contact Martin Leaning Masts & Rigging for specification assistance.

Write your review

Seldén Furlex 204TDE Electric Through-Deck Furler

The Seldén Furlex 204TDE combines electric headsail furling with a below-deck installation for 6mm, 7mm and 8mm forestays. The through-deck arrangement keeps the drive below deck while allowing the headsail tack to sit lower.

Select the required forestay diameter, maximum length and lower termination, together with the appropriate 204E Genoa, Cutter or no-button control pack.

Compare Furlex TDE systems or ask our rigging team to check the correct configuration.
