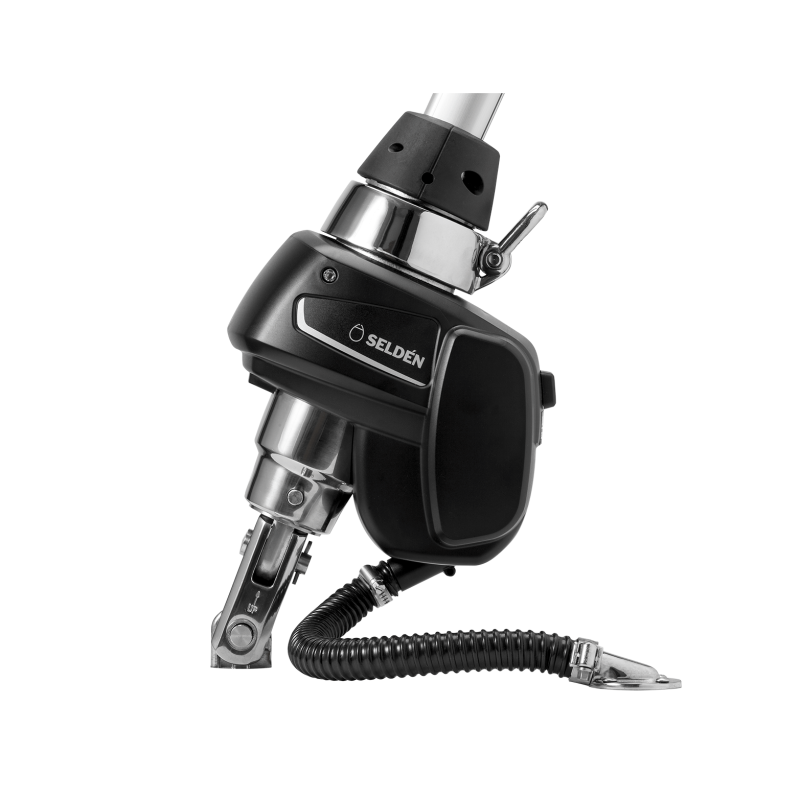

Seldén Furlex 204E Electric Jib Furler

The Furlex 204E brings electric headsail furling to yachts using 6mm, 7mm or 8mm forestays. The drive uses Seldén's electric Furlex system with two operating speeds, allowing the sail to be furled or reefed from the controls without a conventional furling line.

The boat's 12V or 24V electrical system supplies the Furlex power system, which provides the voltage required by the electric drive. The 204E drive has a maximum torque of 60 Nm.

204E configuration

The Furlex assembly is selected according to forestay diameter, maximum forestay length and lower termination. Three termination arrangements are available:

Standard Sta-Lok wire terminal

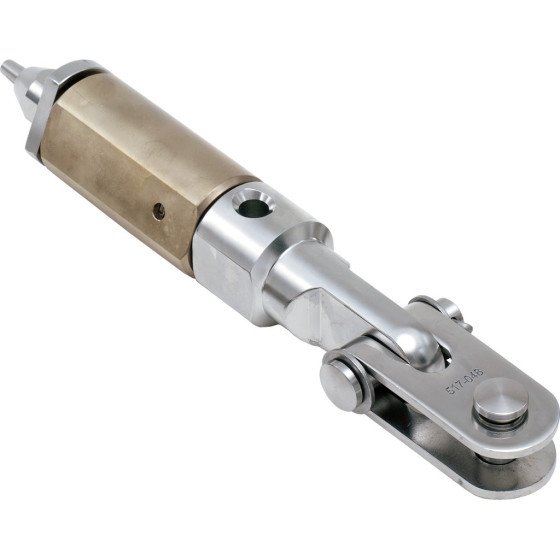

Sta-Lok terminal with integrated rigging screw

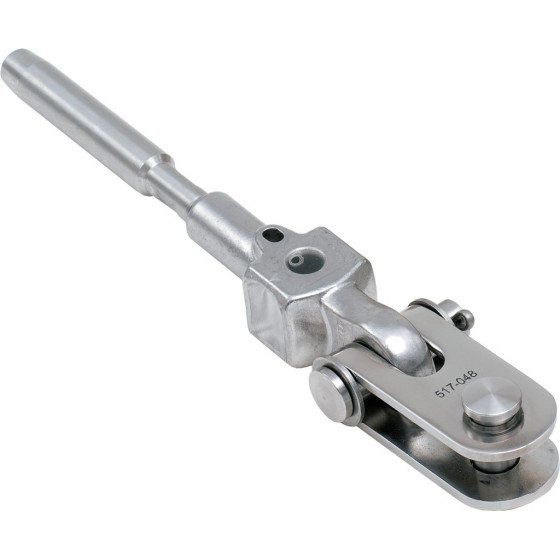

Swaged terminal

Forestay	Max length	Standard	Rigging screw	Swaged
6mm	10,600mm	035-025-101	035-025-111	035-025-121
6mm	13,000mm	035-025-102	035-025-112	035-025-122
6mm	15,400mm	035-025-103	035-025-113	035-025-123
7mm	13,000mm	035-025-104	035-025-114	035-025-124
7mm	15,400mm	035-025-105	035-025-115	035-025-125
7mm	17,800mm	035-025-106	035-025-116	035-025-126
8mm	15,400mm	035-025-107	035-025-117	035-025-127
8mm	17,800mm	035-025-108	035-025-118	035-025-128

204E control packs

532-815-60 – Genoa control pack
532-815-61 – Cutter control pack
532-815-62 – Control pack excluding buttons

A suitable Seldén power supply is also required where one is not already installed. See our Seldén Power Supply Unit start packs.

Need help choosing a Furlex 204E?

Correct selection depends on forestay diameter, required finished length, lower termination and control arrangement. Contact Martin Leaning Masts & Rigging if you would like us to check your specification before ordering.

View all Seldén Furlex Electric systems.

Part No. 035-025-101

electric-furling-data-sheet

Download Selden Electric Furling Product Details

Download (1.72MB)

This product has no reviews!

Write your review

Seldén Furlex 204E Electric Jib Furler

The Seldén Furlex 204E is an electric jib furling system for 6mm, 7mm and 8mm forestays. Its electric drive provides push-button headsail furling without a conventional furling line, with two-speed operation for controlled reefing and furling.

Choose the required forestay diameter and length together with a standard Sta-Lok terminal, integrated rigging screw or swaged-terminal version. The Furlex assembly and control pack are selected separately, with Genoa, Cutter and no-button control options available.

Compare Seldén electric furling systems or contact our rigging team if you need help specifying the correct system.

Quality

Title for your review^* Your review^* Your name^*

Cancel

A quick look at the conversion of a standard Furlex system to electric drive. Simply put, you replace the line drum with the electric drive unit and install the Seldén SEL-Bus system that includes all the electronics. Learn about our functions for SMART sail handling.
