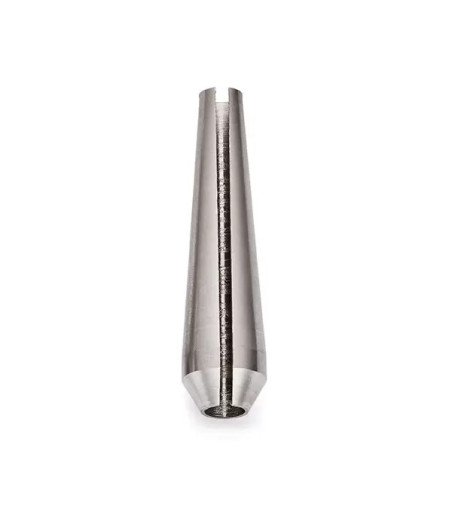

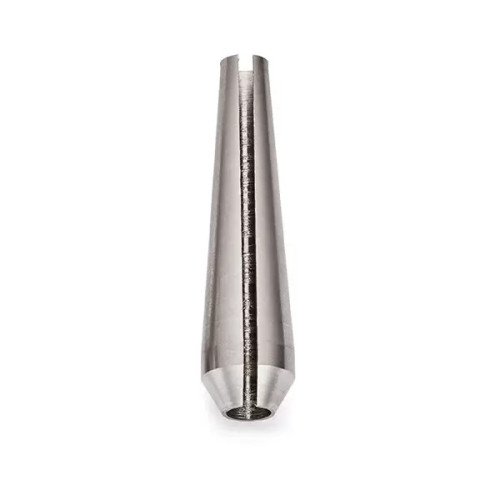

Sta-Lok Dyform & Compacted Wedges
  • Sta-Lok Dyform & Compacted Wedges

Sta-Lok Dyform & Compacted Wedges

Sta-lok
£28.85 £33.94 Save 15%

Sta-lok

inc. VAT Typically delivered within 4-7 Days
0 Review(s)

Designed for Compacted Strand and Dyform Wire Rope

Sta-Lok Dyform and Compacted Wedges are precision replacement components for sailors, riggers, engineers, and industrial professionals using Sta-Lok Self-Fit Terminals with Compacted strand or Dyform wire ropes. They must be renewed whenever the terminal is reused and are not suitable for standard 1×19, 7×7, or 7×19 stainless steel wire constructions.

Engineered for High-Performance Wire Terminations

Compacted strand and Dyform ropes offer higher breaking loads and reduced stretch compared to conventional 1×19 wire. Sta-Lok Dyform and Compacted Wedges are designed to work with a range of the Compacted constructions, including 1×7, 1×19, 1×25, 1×31, and 1×36, providing a secure and reliable termination solution. Each wedge is manufactured from high-quality 316 stainless steel and laser marked for easy identification during installation. Wedges for other wire types are available separately.

Built for Strength, Versatility, and Convenience

Sta-Lok Dyform and Compacted Wedges are available in a full range of metric and imperial sizes to match various wire specifications. They are supplied in packs of 1, 2, or 5 depending on the wire size, offering flexibility for both individual replacements and larger project requirements.

Sta-Lok Dyform & Compacted Wedges

Sta-Lok Dyform & Compacted Wedges

£28.85 £33.94 Save 15%

Sta-lok

inc. VAT Typically delivered within 4-7 Days

w3c

Product Code :
Quantity :
Ask a Question
Write review
In Stock at Distributor (typically delivered within 2-3 weeks)



Our Delivery Policy



Returning Your Order - Our policy

  • Compacted strand and Dyform wire ropes provide higher breaking loads and lower stretch than conventional 1 x 19 wire
  • There are 5 different constructions (1×7), (1×19), (1×25), (1×31) and (1×36)
  • Sta-Lok Swageless How to fit self-fit terminals.

Sta-Lok Dyform & Compacted Wedges Specifications

Product Code Wire Size (Metric) Construction Compacted Dyform Pack Quantity Weight per Pack (kg) Weight per Pack (lb)
154-03C 3 MM 1x7 Yes No 5 0.005 0.011
154-04 4 MM 1x7 Yes Yes 5 0.005 0.011
154-05 5 MM 1x19 Yes Yes 5 0.010 0.022
154-06 6 MM 1x19 No Yes 5 0.025 0.055
154-06C 6 MM 1x19 Yes No 5 0.022 0.049
154-07 7 MM 1x19 No Yes 5 0.028 0.062
154-07C 7 MM 1x19 Yes No 5 0.025 0.055
154-08 8 MM 1x19 Yes Yes 2 0.017 0.037
154-10 10 MM 1x19 Yes Yes 2 0.033 0.073
154-12 12 MM 1x19 No Yes 1 0.033 0.073
154-12C19 12 MM 1x19 Yes No 1 0.030 0.066
154-14C19 14 MM 1x19 Yes No 1 0.056 0.123
154-14 14 MM 1x25 Yes Yes 1 0.060 0.132
154-16 16 MM 1x25 No Yes 1 0.110 0.243
154-16C25 16 MM 1x25 Yes No 1 0.110 0.243
154-19C25 19 MM 1x25 Yes No 1 0.140 0.309
154-19 19 MM 1x31 No Yes 1 0.140 0.309
154-14C36 14 MM 1x36 Yes No 1 0.060 0.132
154-16C 16 MM 1x36 Yes No 1 0.110 0.243
154-19C36 19 MM 1x36 Yes No 1 0.140 0.309
