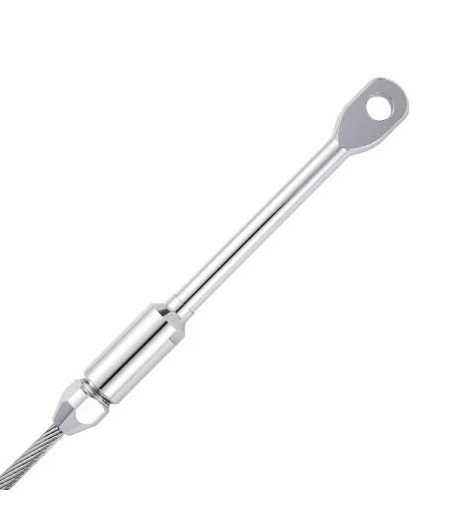

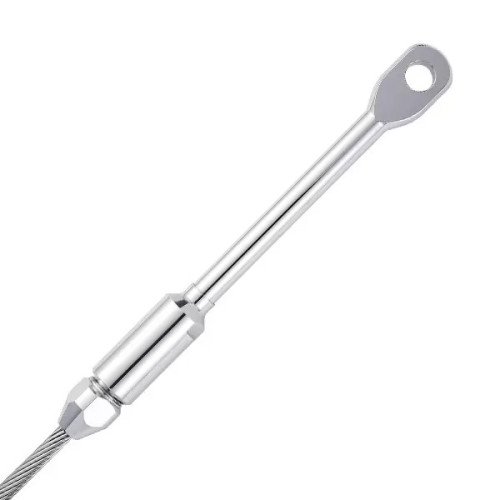

Name: Sta-Lok Long Eye
Brand: Sta-lok
SKU: 1526
Price: 52.18 GBP
Availability: BackOrder

GRAB A BARGAIN - 15% off all list prices until 31 October 2025 (excludes masts & booms).

Sta-Lok Self-Fit Terminal, the reusable alternative to machine swaging
Only basic hand tools required
No pre-measurement needed
Quick and easy to install
Manufactured from high specification 316 stainless steel
Guaranteed stronger than wire rope
For right hand and left hand lay wire rope
Packed for 1×19 wire as standard
Different wedges are available to terminate 7 strand & compacted strand wire ropes
How to fit self-fit terminals.

Sta-Lok Long Eye Specifications

Product Code	Wire Size (Metric)	A (mm)	B (mm)	D (mm)	H (mm)	Weight (kg)
078-05	5 MM	106.0	82.5	7.5	9.8	0.120
078-06-3/8	6 MM	126.0	100.0	7.5	9.8	0.200
078-06	6 MM	126.0	100.0	9.5	11.5	0.200
078-06-1/2	6 MM	147.0	117.5	12.0	13.0	0.260
078-07	7 MM	147.0	117.5	12.0	13.0	0.300
078-08	8 MM	147.0	117.5	12.0	13.0	0.360
078-08-5/8	8 MM	175.0	136.4	13.5	16.0	0.540
078-10	10 MM	175.0	136.4	13.5	16.0	0.640
078-12	12 MM	254.0	205.8	19.0	19.5	1.300
078-14	14 MM	330.0	280.5	21.0	22.5	2.100
078-16	16 MM	320.0	303.6	24.0	25.6	2.700

These fittings are designed for quick installation and emergency rigging repairs, made from high-strength 316 stainless steel and packed for 1×19 wire as standard.

Part No. 078-05

This product has no reviews!

Write your review

Sta-Lok Long Eye

Designed for Reliable Wire Rope Terminations

The Sta-Lok Eye is a high-performance, reusable alternative to swage terminals, ideal for sailors, marine engineers, riggers, architects, and industrial professionals requiring a strong and durable fitting for wire rope assemblies.

Engineered for Strength and Onsite Flexibility

Manufactured from high-strength 316 stainless steel for maximum corrosion resistance, the Sta-Lok Eye is proven to be stronger than the wire itself. It is quick and easy to install using basic hand tools, with no pre-measurement required, making it ideal for onsite or onboard assembly. Supplied as standard for 1×19 wire rope, it can also accommodate 7×7, 7×19, and compact strand constructions with the appropriate wedges, available separately.

Built for Long-Term Performance Across Applications

Suitable for both right-hand and left-hand lay wire ropes, the Sta-Lok Eye delivers reliable mechanical performance in marine, architectural, and industrial applications. Its robust design ensures dependable, long-term service even in demanding environments. Refer to the technical chart for full dimensional details.
