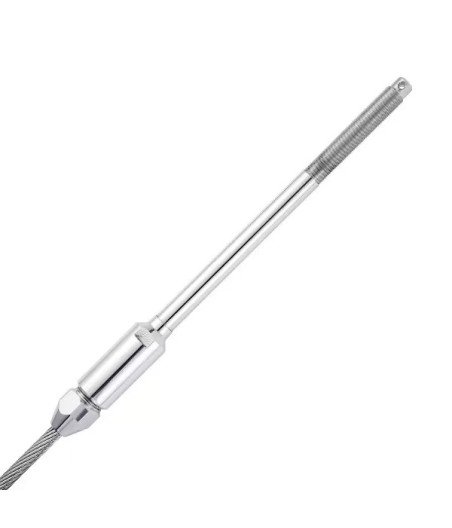

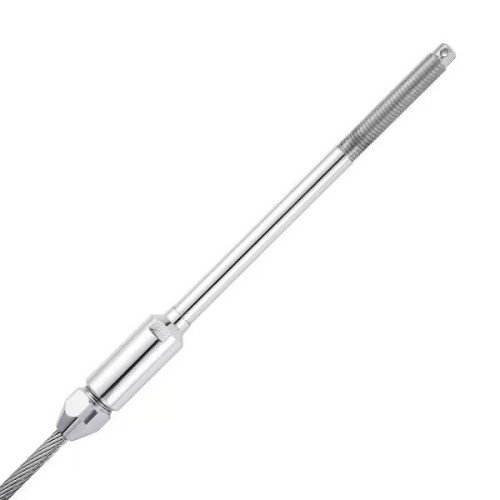

Name: Sta-Lok Long Stud
Brand: Sta-lok
SKU: 1527
Price: 42.76 GBP
Availability: BackOrder

GRAB A BARGAIN - 15% off all list prices until 31 October 2025 (excludes masts & booms).

Sta-Lok Self-Fit Terminal, the reusable alternative to swage
Enables replacement of swages without having to replace the wire rope
Only basic hand tools required
Quick and easy to install
No pre-measurement needed
Guaranteed stronger than wire rope
For right hand and left hand lay wire rope
Packed for 1×19 wire as standard
Manufactured from high specification 316 stainless steel
Supplied with split pin
Right hand thread only
How to fit self-fit terminals

Sta-Lok Long Stud Specifications

Product Code	Wire Size (Metric)	Thread (UNF)	A (mm)	B (mm)	Weight (kg)
076-04	4 MM	5/16″	141.3	54.0	0.080
076-05-5/16	5 MM	5/16″	154.0	54.0	0.120
076-05	5 MM	3/8″	166.6	66.7	0.160
076-06-3/8	6 MM	3/8″	180.2	66.7	0.180
076-06	6 MM	7/16″	188.5	76.2	0.220
076-07	7 MM	1/2″	225.4	82.6	0.380
076-08	8 MM	1/2″	225.4	82.6	0.420
076-08-5/8	8 MM	5/8″	271.5	95.2	0.600
076-10	10 MM	5/8″	272.3	95.2	0.700
076-12	12 MM	3/4″	339.7	115.1	1.300
076-14	14 MM	7/8″	384.2	139.7	2.230
076-16	16 MM	1″	442.0	139.7	2.850

These long studs are made from 316 stainless steel and are designed for easy installation and emergency rigging repairs.

Part No. 076-04

This product has no reviews!

Write your review

Sta-Lok Long Stud

The Sta-Lok Long Stud is a high-strength, reusable alternative to swage fittings, designed for easy onsite or onboard assembly using only basic hand tools. Manufactured from 316 grade stainless steel, it offers outstanding corrosion resistance and is designed and manufactured to be stronger than the wire rope itself.

Engineered for Easy Installation and Emergency Repairs

Manufactured from 316 grade stainless steel for outstanding corrosion resistance. The extended body allows for the straightforward replacement of damaged swaged fittings without the need to replace the wire rope, making it an essential choice for emergency rigging repairs. Installation is quick and easy using basic hand tools, with no pre-measurement required. Supplied as standard for 1×19 wire rope, with separate wedges available for 7×7, 7×19, and compact strand constructions.

Built for Strength, Durability, and Versatility

Suitable for both right-hand and left-hand lay wire ropes, the Sta-Lok Long Stud is designed for maximum reliability under constant load and variable shock conditions. It is supplied complete with a split pin and features a right-hand thread. Common applications include standing rigging on yachts, emergency repairs, and industrial support systems where strength and long-term durability are essential.

Refer to the technical chart for full dimensional details.
