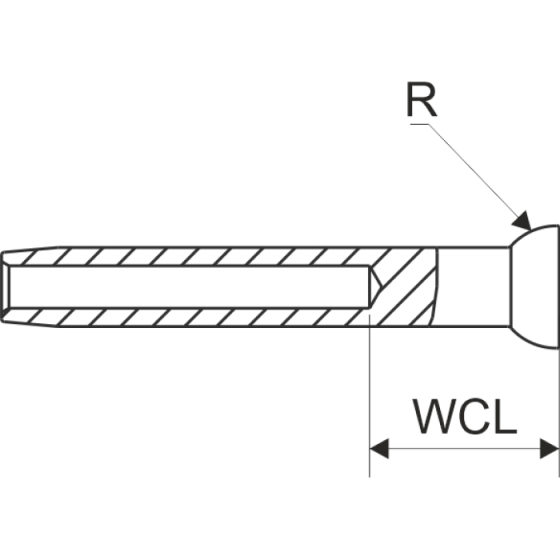

Item No	Wire diameter	Stemball Size (R)	Arr.	WCL reduct.
308-558	4	9.00	T	24
308-558-01	4	14.00	T+C+C	24
308-558-04	4	11.00	T+C	24
308-552	5	9.00	T	26
308-552-01	5	14.00	T+C+C	26
308-552-04	5	11.00	T+C	26
308-553	6	11.00	T	31
308-553-01	6	14.00	T+C	31
308-553-02	6	18.00	T+C+C	31
308-554	7	11.00	T	36
308-554-01	7	14.00	T+C	36
308-554-02	7	18.00	T+C+C	36
308-555	8	14.00	T	44
308-555-02	8	18.00	T+C	44
308-556	10	14.00	T	45
308-556-02	10	18.00	T+C	45
308-557-06	12	25.00	T+C+C	46
308-557	12	18.00	T	46
308-557-05	12	22.00	T+C	46

Part No. 308-558

In stock 4 Items

This product has no reviews!

Write your review

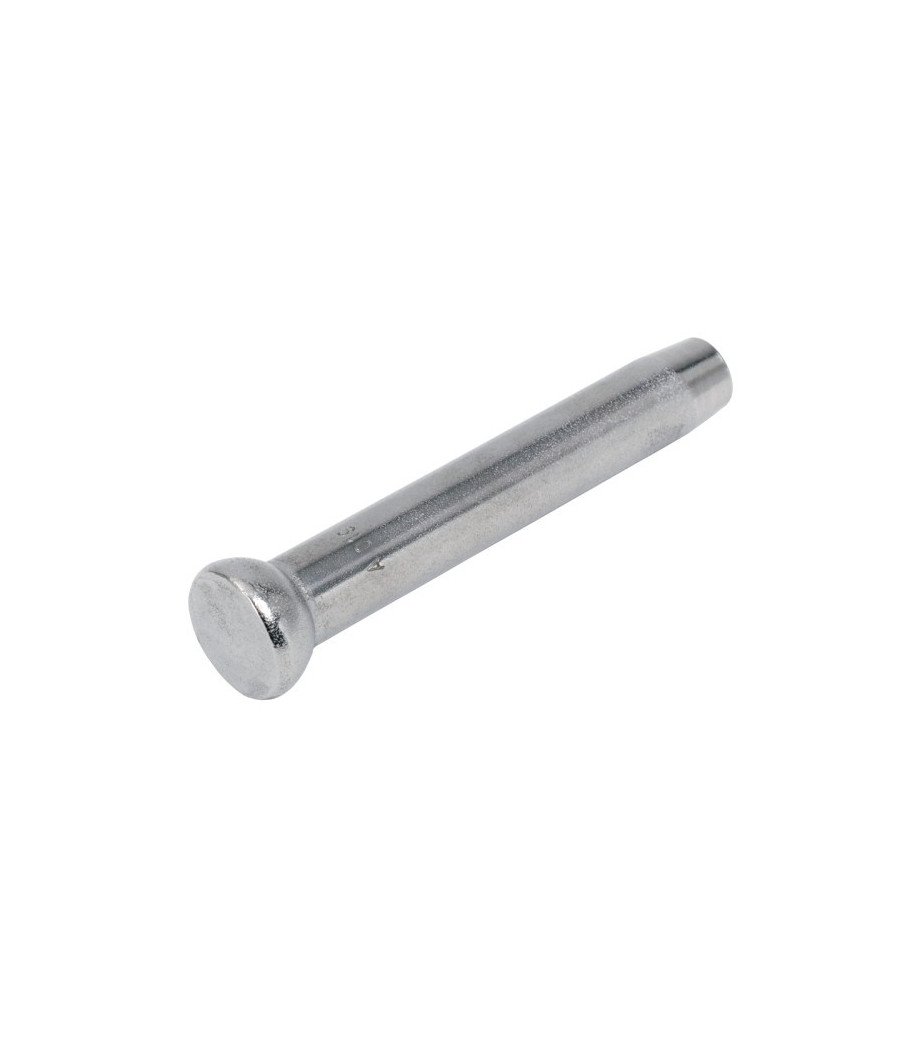

Swage Stemballs + Cups

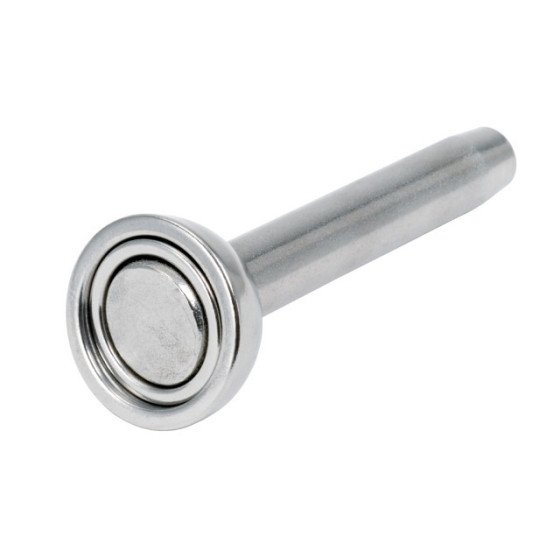

Ideal for lower shrouds and intermediate shrouds hanging in the spreader brackets with a stemball terminal at the upper end. This terminal is located in the cup of the spreader bracket. If required, it can be used with one or two separate cups to bring it up to the correct size for the cup. Measure the width of the complete assembly, including any cups, to ensure that all the cups are in position.
