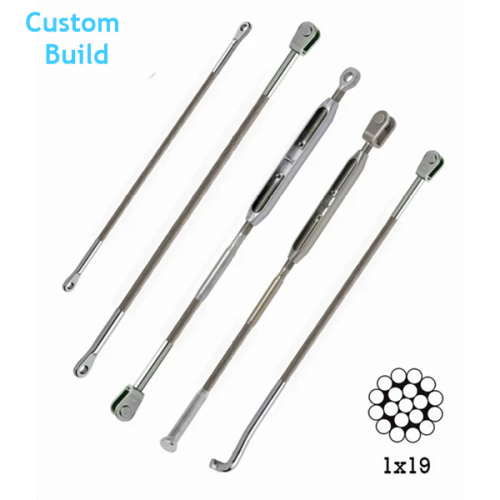

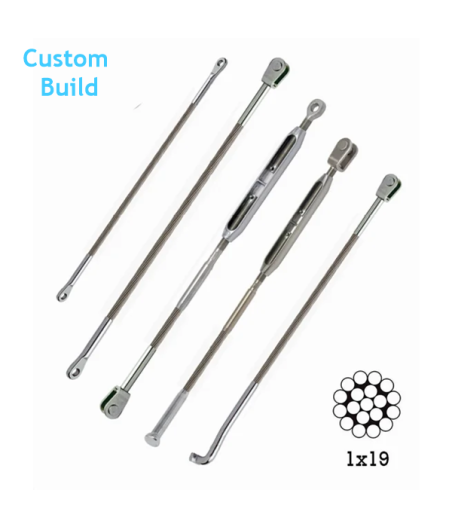

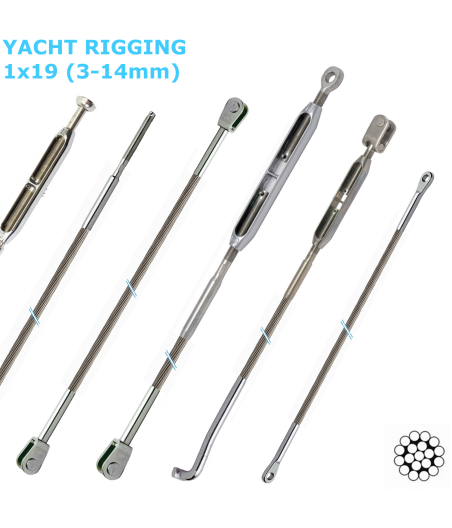

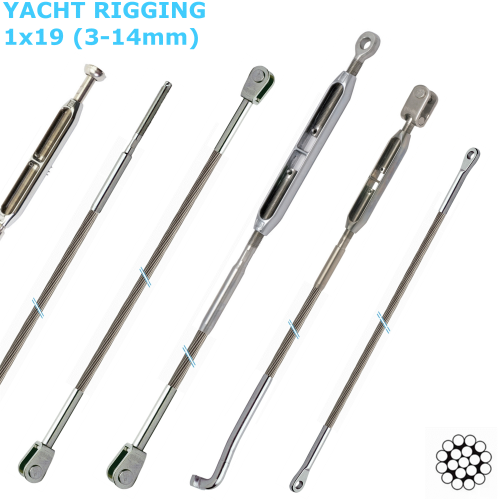

Custom Built Yacht Standing Rigging 1x19 Stainless Wire (3-14mm)

Custom Yacht Standing Rigging 1x19 (3-14mm)

Name: Custom Yacht Standing Rigging 1x19 (3-14mm)
Brand: Martin Leaning
SKU: 1264
Availability: InStock

Martin Leaning

Configure for price

Martin Leaning

inc. VAT

0 Review(s)

Standing Rigging: Custom Built for Keelboats and Yachts (1x19 Stainless)

Length Measurement

Click on the buttons below to build your replacement standing rigging and fitting terminations, or select 'None' for the Upper/Lower Termination if you just need a length of cut wire.

If you need any advice or would prefer to talk to one of our rigging experts about your requirements, please get in touch. Before you start, please make sure you know the lengths of your standing rigging as shown in the example above, or if you prefer, send us your existing standing rigging, and we can use that as a template.

Custom Yacht Standing Rigging 1x19 (3-14mm)

Configure for price

Martin Leaning

inc. VAT

Quantity :

Write review

Our Delivery Policy

Returning Your Order - Our policy

Custom 1x19 Yacht Standing Rigging

Configure and order custom-built yacht standing rigging in KOS 1x19 stainless steel wire. We manufacture replacement shrouds and stays to your confirmed finished length with the upper and lower terminal fittings you require.

This product covers 1x19 standing rigging from 3mm to 14mm. Use the configuration options above to select the wire diameter, finished length and terminal arrangement for each stay or shroud.

If you need help using the configurator, see our guide to ordering custom 1x19 yacht standing rigging.

1x19 Stainless Steel Standing Rigging

1x19 stainless steel wire is widely used for conventional yacht standing rigging, including cap shrouds, lower shrouds, forestays and backstays. Its low-stretch construction makes it suitable for supporting and controlling the mast while working with purpose-designed standing-rigging terminals.

Martin Leaning Masts & Rigging uses KOS 1x19 stainless steel wire for this custom-build product and professionally terminates each assembly to the confirmed specification.

Wire Breaking Strain Reference

Diameter	Breaking Strain (kg)
3mm	720
4mm	1280
5mm	2000
6mm	2880
7mm	3560
8mm	4640
10mm	7250
12mm	10400
14mm	14170

What Information Do I Need to Order Standing Rigging?

Before configuring a replacement shroud or stay, confirm the following:

Wire diameter – measure the existing wire accurately or work from a confirmed rigging specification.
Finished length – measure between the correct bearing points of the terminal fittings.
Upper terminal – for example an eye, fork, T-terminal or stemball, depending on the existing mast fitting.
Lower terminal – confirm the terminal or rigging-screw arrangement required.
Pin, eye or thread dimensions – these must match the existing attachment fittings.
Quantity – for example a pair of matching shrouds or one forestay.

See our illustrated guide to measuring standing rigging before ordering.

Standing Rigging Terminals

The correct terminal depends on both the wire diameter and the mast or deck fitting to which the standing rigging connects. Common fittings include threaded studs, eyes, forks, T-terminals, stemballs and mechanical terminals.

Do not select a replacement fitting from wire diameter alone. Check relevant dimensions such as thread size, clevis-pin diameter, eye-hole diameter, fork width and the type of mast attachment.

Our standing rigging terminal guide explains the common terminal types and the measurements needed to identify them.

Send Your Existing Standing Rigging to Us

If you do not have reliable finished measurements, you can send your existing standing rigging to our Port Solent workshop and we can use it as a template for the replacement assemblies.

This is particularly useful where terminal dimensions, thread sizes, pin sizes or finished lengths need to be reproduced accurately.

Forestays and Furling Systems

Take particular care when replacing a forestay fitted inside a headsail furling system. The wire diameter, finished forestay length and terminal arrangement must all be compatible with the furler and the yacht.

If you are unsure of the forestay specification or furling-system compatibility, contact our rigging team before ordering.

Supply-Only or Complete Yacht Re-Rig

If you are fitting the replacement rigging yourself, our Supported Supply-Only Standing Rigging service adds measurement guidance, video consultation and direct access to our rigging team throughout the project.

We can manufacture custom 1x19 standing rigging for owners carrying out their own installation, or provide a professionally fitted yacht re-rig where required.

For a complete replacement estimate, request a rigging estimate. You can also read our standing rigging replacement cost guide or search the Yacht Rigging Database for an indicative cost for your yacht model.

Inspection and Replacement

Standing rigging should be checked regularly for damage, corrosion, broken wires, distortion and deterioration around terminal fittings and attachment points.

If the age, condition or history of the rigging is uncertain, see our guide on when to replace standing rigging or arrange a professional yacht rig inspection.

For all custom standing rigging options, return to our Standing Rigging section.
