Sta-Lok: Bronze Stemball & Swage
  • Sta-Lok: Bronze Stemball & Swage
  • Sta-Lok: Bronze Stemball & Swage

Stemball & Swage Sta-Lok Bronze

Sta-lok
£50.21

Sta-lok

inc. VAT Typically delivered within 2-3 weeks
0 Review(s)

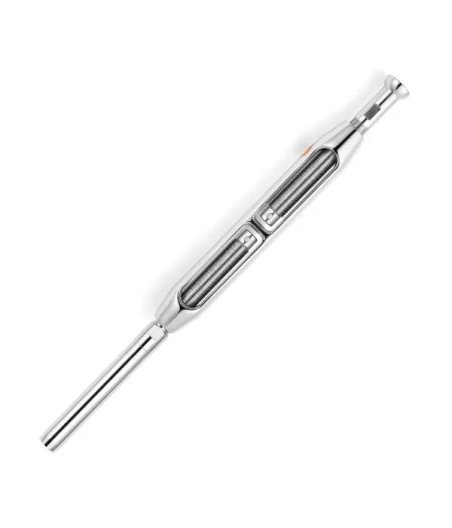

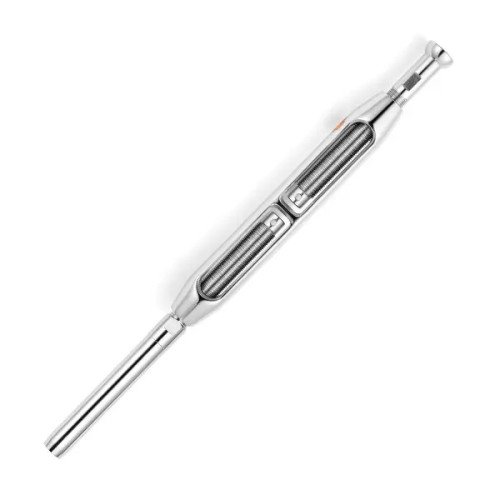

  • Bronze Turnbuckle assembly, supplied with a Threaded Stemball (186) at one end and a Swage Stud (051) at the other
  • Forged from high strength bronze alloy
  • High quality polished chromium finish
  • Stronger than the wire rope
  • If Stemball Cups are required, please refer to product (042C)
  • *Warning – Always check Tip Cup and Spreader dimensions for correct head sizing. Stemball Cups may be required.
Sta-Lok: Bronze Stemball & Swage
Stemball & Swage Sta-Lok Bronze
£50.21

Sta-lok

inc. VAT Typically delivered within 2-3 weeks
Wire Dia / Thread Size :
Quantity :
Ask a Question
Write review



Our Delivery Policy



Returning Your Order - Our policy

This bronze rigging screw combines a threaded stemball at the mast end with a swage stud at the wire end. It is intended for replacement standing-rigging assemblies where the existing mast fitting uses a compatible stemball seat. Match the wire diameter, UNF thread and stemball or cup geometry to the existing installation before ordering. A suitable stemball cup may be required where the mast fitting does not provide the correct bearing surface.

Part Numbers /Sizes

Part No Wire Size (Metric) Thread (UNF) Fully Open (mm) Fully Closed (mm) C (mm)
B54-03 3 MM 1/4″ 235.0 159.0 14.6
B54-144 4 MM 1/4″ 241.0 165.0 14.6
B54-04Z 4 MM 5/16″ 255.0 172.0 13.2
B54-04 4 MM 5/16″ 255.0 172.0 18.0
B54-5165Z 5 MM 5/16″ 257.0 174.0 13.2
B54-5165 5 MM 5/16″ 257.0 174.0 18.0
B54-05SC 5 MM 3/8″ 290.0 198.0 18.3
B54-05 5 MM 3/8″ 290.0 198.0 20.3
B54-386SC 6 MM 3/8″ 288.0 196.0 18.3
B54-386 6 MM 3/8″ 288.0 196.0 20.3
B54-06SC 6 MM 7/16″ 315.0 215.0 18.3
B54-06 6 MM 7/16″ 315.0 215.0 20.3
B54-7167SC 7 MM 7/16″ 322.0 222.0 18.3
B54-7167 7 MM 7/16″ 322.0 222.0 20.3
B54-07 7 MM 1/2″ 339.0 235.0 26.0
B54-07SC 7 MM 1/2″ 339.0 235.0 26.3
B54-08 8 MM 1/2″ 338.0 234.0 26.0
B54-08SC 8 MM 1/2″ 338.0 234.0 26.3
B54-588SC 8 MM 5/8″ 397.0 271.0 26.3
B54-588 8 MM 5/8″ 397.0 271.0 27.0
B54-10SC 10 MM 5/8″ 405.0 279.0 26.3
B54-10 10 MM 5/8″ 405.0 279.0 27.0
B54-12 12 MM 3/4″ 512.0 348.0 28.0
