Sta-Lok Eye Wire Diameter / Hole Size 3mm / 6.5mm

WE NOW OFFER WORLDWIDE DELIVERY - YOU WILL SEE ALL THE DELIVERY OPTIONS ON CHECKOUT

Loading rigging options…

Sta-Lok Self-Fit Terminal, the reusable alternative to machine swaging
Only basic hand tools required
No pre-measurement needed
Quick and easy to install
Manufactured from high specification 316 stainless steel
Guaranteed stronger than wire rope
For right hand and left hand lay wire rope
Packed for 1×19 wire as standard
Different wedges are available to terminate 7 strand & compacted strand wire ropes
How to fit self-fit terminals.

Sta-Lok Eye Specifications

Product Code	Wire Size (Metric)	A (mm)	B (mm)	D (mm)	H (mm)	Weight (kg)	Weight (lb)
033-03	3 MM	17.9	10.0	5.0	6.5	0.020	0.044
033-04	4 MM	20.3	14.7	5.8	8.0	0.040	0.088
033-05	5 MM	24.4	18.0	7.5	10.0	0.080	0.176
033-06	6 MM	31.0	22.2	9.5	13.0	0.140	0.309
033-07	7 MM	32.5	24.6	10.5	13.0	0.160	0.353
033-08-1/2	8 MM	35.7	27.0	12.0	13.0	0.240	0.529
033-08-5/8	8 MM	35.7	27.0	13.5	16.0	0.280	0.617
033-10	10 MM	41.1	29.2	13.5	16.0	0.340	0.750
033-10-3/4	10 MM	41.1	29.2	13.5	19.5	0.400	0.882
033-12	12 MM	42.8	33.3	19.0	19.5	0.680	1.499
033-12-7/8	12 MM	42.8	33.3	19.0	22.5	0.700	1.543
033-14	14 MM	55.6	38.1	20.0	22.5	1.100	2.425
033-14-1	14 MM	55.6	38.1	23.0	26.0	1.220	2.690
033-16	16 MM	59.0	40.0	20.0	22.5	1.420	3.131
033-16-1	16 MM	60.0	40.0	20.0	25.4	1.700	3.748
033-19	19 MM	68.3	49.2	27.0	28.6	2.820	6.217
033-22	22 MM	82.6	60.3	33.3	35.0	3.960	8.730
033-26	26 MM	86.0	60.3	33.3	35.0	5.300	11.684

Part No. 033-03

This product has no reviews!

Write your review

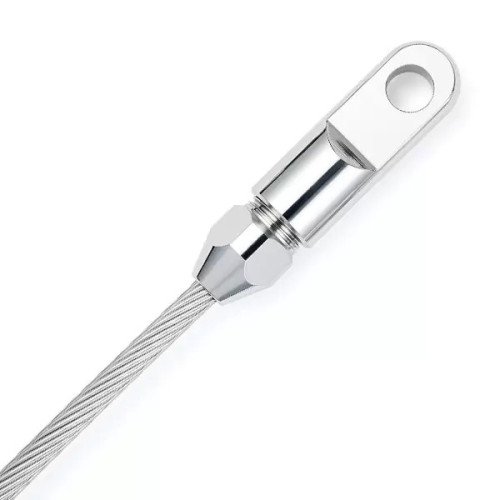

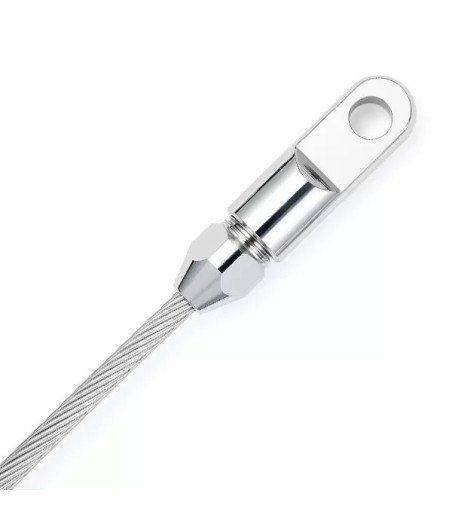

Sta-Lok Eye

Designed for Reliable Wire Rope Terminations

The Sta-Lok Eye is a high-performance, reusable alternative to swage terminals, ideal for sailors, marine engineers, riggers, architects, and industrial professionals requiring a strong and durable fitting for wire rope assemblies.

Engineered for Strength and Onsite Flexibility

Manufactured from high-strength 316 stainless steel for maximum corrosion resistance, the Sta-Lok Eye is proven to be stronger than the wire itself. It is quick and easy to install using basic hand tools, with no pre-measurement required, making it ideal for onsite or onboard assembly. Supplied as standard for 1×19 wire rope, it can also accommodate 7×7, 7×19, and compact strand constructions with the appropriate wedges, available separately.

Built for Long-Term Performance Across Applications

Suitable for both right-hand and left-hand lay wire ropes, the Sta-Lok Eye delivers reliable mechanical performance in marine, architectural, and industrial applications. Its robust design ensures dependable, long-term service even in demanding environments. Refer to the technical chart for full dimensional details.
