Full support in all directions As the name implies, Seldén’s MDS (Multi-Directional Support) cars are supported in all directions, making sail handling simpler. A full batten always creates a side load on the cars, particularly when you release the halyard for taking a reef. Each car has side-load absorbing wheels that run against the guiding flanges in the luff groove. The interaction between the mast section and the MDS car deals with longitudinal loads, as well as side loads. This is the essence of the MDS concept. Since the cars need no external track, there is also less weight aloft. The MDS cars are easy to keep clean and are easy to install or remove from the luff groove. The MDS system is a suitable complement to the Seldén Single Line Reef boom. With such a combination on board, you have a simple and easily manoeuvred system for handling the mainsail in all weathers.

Full support in all directions As the name implies, Seldén’s MDS (Multi-Directional Support) cars are supported in all directions, making sail handling simpler. A full batten always creates a side load on the cars, particularly when you release the halyard for taking a reef. Each car has side-load absorbing wheels that run against the guiding flanges in the luff groove. The interaction between the mast section and the MDS car deals with longitudinal loads, as well as side loads. This is the essence of the MDS concept. Since the cars need no external track, there is also less weight aloft. The MDS cars are easy to keep clean and are easy to install or remove from the luff groove. The MDS system is a suitable complement to the Seldén Single Line Reef boom. With such a combination on board, you have a simple and easily manoeuvred system for handling the mainsail in all weathers.

Selden batten receptacles come in two sizes for each model to ensure the correct fit on round or flat rectangular battens. Please select the correct size/type for your requirements.

Seldén Outer Wheel Support (OWS) sliders are designed both as batten sliders and webbing sliders. Each model is available in 5 different versions. One version fits Seldén E-sections (1977-2002) and older Seldén/Kemp oval sections. Any of the other 4 versions fits most of all other mast brands on the market. OWS sliders do not fit Seldén C-section for which MDS-sliders should be used. The OWS for Batten slider is designed to take compression load from the batten in a full batten main sail. To achieve optimal function and strength, use Seldén toggle M10 stud 511-739-01. Please select the correct type/size for your requirements. See the attached information sheet for all details.

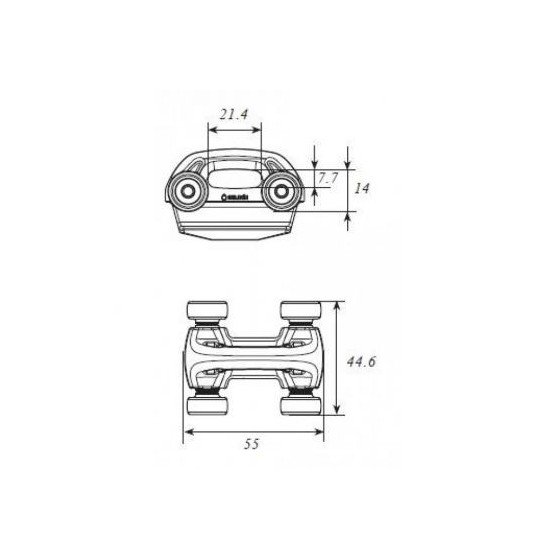

Seldén OWS sliders are designed as both batten sliders and webbing sliders. Each model is available in 5 different versions. One version fits Seldén E-sections (1977-2002) and older Seldén/Kemp oval sections. Any of the other 4 versions fits most of all other mast brands on the market. OWS sliders do not fit Seldén C-section for which MDS-sliders should be used. To achieve maximum strength, the OWS slider for webbing should be attached to the main sail using a webbing strap. All sliders for webbing can be used for headboard attachments and as intermediate sliders. Please select the correct type/size for your requirements. See the attached information sheet for all details.

The Selden RCB 22 Headboard Toggle Assembly is designed for use with full batten systems on masts. It provide a secure attachment point for the headboard. For further information see the ATTACHMENTS tab below.

The Selden RCB (Round Circulating Ball-Bearings) Full Batten System Car is designed to facilitate full-batten sail management, making it easier to set and reef the mainsail. The RCB Full Batten System Car is designed to provide smooth and efficient operation, ensuring reliable performance in various sailing conditions. For further information see the ATTACHMENTS tab below.

The Selden 511-590-01 is a part of the RCB (Round Circulating Ballbearings) full-batten system. This system is designed to facilitate full-batten sail management, making it easier to set and reef the mainsail. The system is based on linear ball races and recirculating balls, which ensure minimal friction even under high compression loads from full-length battens For further information see the ATTACHMENTS tab below.

The Selden RCB (Round Circulating Ball-Bearings) Full Batten System M10 Bolt is an integral part of the full-batten sail management system. For further information see the ATTACHMENTS tab below.

It is imperative that the correct sliders are used on Seldén masts in order to fit the Seldén sail feeder gate.  To avoid jamming in the luff groove, slides must have freedom of movement on the sail

The Selden Tri Sail Slider is a specialized sail hardware component designed to facilitate the smooth and efficient handling of tri-sails. Tri-sails are typically used in heavy weather conditions, and the Tri Sail Slider ensures that these sails can be hoisted, reefed, and doused with minimal friction and effort.

Selden sail entry gate for E and D mast section. Sail slides are fed in to this spring-loaded gate. When reefing, the sail slides pass through the closed gate down to the boom, holding the sail in place and facilitating fast and safe reefing. Large size for: E138, E155, E170, E177, E189, E206, E224, E237, E274 mast sections. Small size for: E122, E130, D109, D121 mast sections.

Selden tongue for sail entry gate. Sail slides are fed in to this spring-loaded gate. When reefing, the sail slides pass through the closed gate down to the boom, holding the sail in palace and facilitating fast and safe reefing. Large size for: E138, E155, E170, E177, E189, E206, E224, E237, E274 mast sections. Small size for: E122, E130, D109, D121 mast sections.

Selden tongue for sail entry gate. Sail slides are fed in to this spring-loaded gate. When reefing, the sail slides pass through the closed gate down to the boom, holding the sail in place and facilitating fast and safe reefing. Large size for: E138, E155, E170, E177, E189, E206, E224, E237, E274 mast sections. Small size for: E122, E130, D109, D121 mast sections.

Selden track gate insert for a fully-battened mainsail. Use with batten cars running in the standard sail track.
