Compacted Strand Wire Rigging Standing Rigging (formerly known as Dyform) is a great choice for high performance standing rigging. It is commonly used throughout the yachting world, and you can now configure and purchase the rigging you need on our website. Compacted strand wire ropes feature high-strength and very low-stretch, providing this wire with excellent longevity and performance.

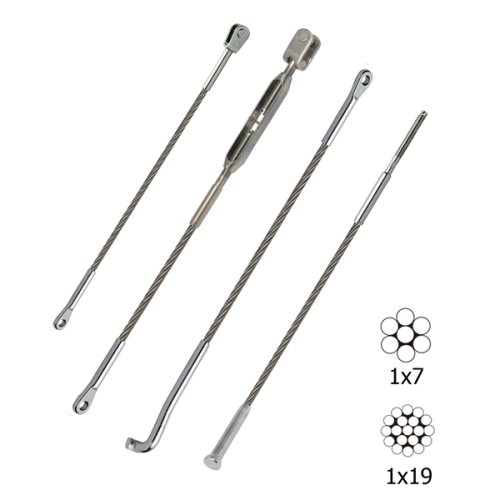

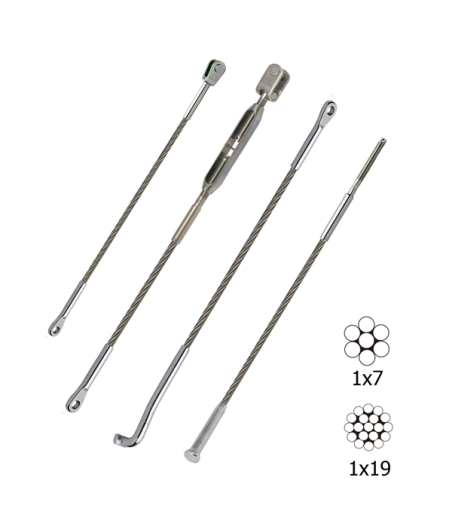

Here at Martin Leaning Masts & Rigging we use KOS 1x7 construction Compacted Strand wire for 3mm, and 4mm diameters, for 5mm up to and including 12mm diameter it's manufactured in 1x19 construction. Here's why it is a great choice. In our opinion it's the world's best wire and our terminals are from premium world recognised brands, and all rigging is professionally terminated with meticulous care.

KOS Stainless Steel Wire Rope manufactured using 316 marine grade stainless steel to 1.4401 is recognised throughout the world for its superior quality and has an outstanding reputation for suitability in a marine environment. The manufacturing process for Compact Stand reduces stretch and increases break load by approximately 30% compared to standard 1×19 wire with only a minimal increase in weight per metre.

Dyform stainless steel wire, now commonly referred to as Compacted Strand, was developed as an improvement over traditional 1x19 stainless steel wire used in standing rigging. The Dyform process involves compressing individual strands to create a denser, stronger, and smoother wire, offering 30-40% greater break load and 20% less stretch compared to standard wire. Originally introduced to enhance performance for racing and offshore cruising yachts, Dyform wire became popular due to its reduced diameter, increased wear resistance, and improved corrosion resistance. Over time, manufacturers refined the compacting process, leading to the modern Compacted Strand wire, which continues to be a preferred choice for high-performance rigging.

Dyform (or Compacted Strand) wire differs significantly from traditional 1x19 stainless steel wire, and these differences make it a preferred choice for high-performance applications. Here’s how they compare:

Strength & Performance

• Dyform Wire: Higher tensile strength, offering 30-40% greater break load than standard 1x19 wire.

• 1x19 Wire: Strong but with a lower break load compared to Dyform.

Stretch & Rigidity

• Dyform Wire: 20% less stretch, making it ideal for precise rig tuning, especially in racing yachts.

• 1x19 Wire: Slightly more stretch, which can affect long-term performance.

Diameter & Aerodynamics

• Dyform Wire: Has a smaller diameter for the same strength, reducing wind resistance and drag.

• 1x19 Wire: Thicker for comparable strength, which can create more aerodynamic drag.

The History and Development of Compacted Strand Wire

Compacted strand wire is a revolutionary advancement in cable and rope technology, offering enhanced strength, durability, and flexibility compared to traditional wire rope constructions. Used in marine rigging, suspension bridges, cranes, and high-performance applications, this wire type has evolved through decades of innovation. Let’s explore its history and development.

Early Wire Rope Innovations

Wire rope has been a fundamental component of industrial engineering for over two centuries, dating back to the early 1800s. Traditional wire ropes consisted of strands of individual wires twisted together, with the first major developments occurring in mining and construction.

1. Wilhelm Albert’s Wire Rope (1834)

The first modern wire rope was developed by Wilhelm Albert, a German engineer working in mining. His design featured multiple strands of twisted iron wires, significantly improving strength and durability compared to hemp ropes used at the time.

2. The Industrial Expansion (1850s-1900s)

With the rise of railways, bridges, and cranes, wire rope technology rapidly advanced. Engineers sought ways to increase load-bearing capacity and longevity, leading to improvements in strand arrangement and coating methods.

The Birth of Compacted Strand Wire

The mid-20th century saw the need for higher-performance wire ropes, particularly in marine, aviation, and suspension applications. Compacted strand wire emerged as a key innovation, designed to increase density, reduce internal wear, and improve tensile strength.

1. Cold-Forming and Compaction (1950s-1970s)

Engineers discovered that compacting wire strands through mechanical pressing could reduce gaps between individual wires, making the rope smoother and more resistant to abrasion. This method increased surface contact, reducing wear between strands and enhancing strength.

2. Advancements in Materials (1980s-2000s)

The introduction of high-carbon steel, stainless steel, and synthetic coatings further refined compacted strand wire technology. These materials improved corrosion resistance, ensuring longevity in marine and offshore applications.

3. Modern Applications (2000s-Present)

Today, compacted strand wire is widely used in sailing rigging, suspension bridges, elevators, and industrial cranes, offering:

• Higher strength-to-weight ratio compared to traditional wire ropes.

• Reduced stretch and wear, increasing durability.

• Improved flexibility, making it ideal for dynamic load applications.

Future of Compacted Strand Wire

Ongoing developments in materials science, nanotechnology, and manufacturing techniques continue to refine compacted wire technology. The industry is exploring hybrid designs combining steel and synthetic fibers, self-lubricating coatings, and low-friction treatments to further enhance performance.

Conclusion

Compacted strand wire represents a remarkable evolution in wire rope technology, originating from simple iron ropes and advancing into high-performance cables used in critical applications worldwide. As engineering and material science progress, future innovations will continue to improve its strength, flexibility, and longevity, making compacted strand wire an indispensable tool in modern industry.
