System 30 Genoa Sheet Car

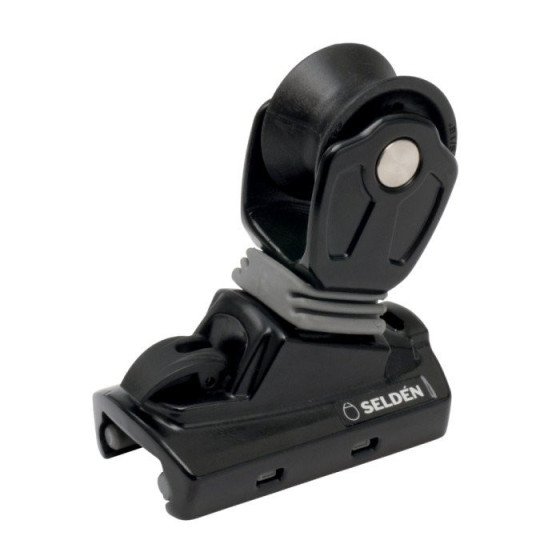

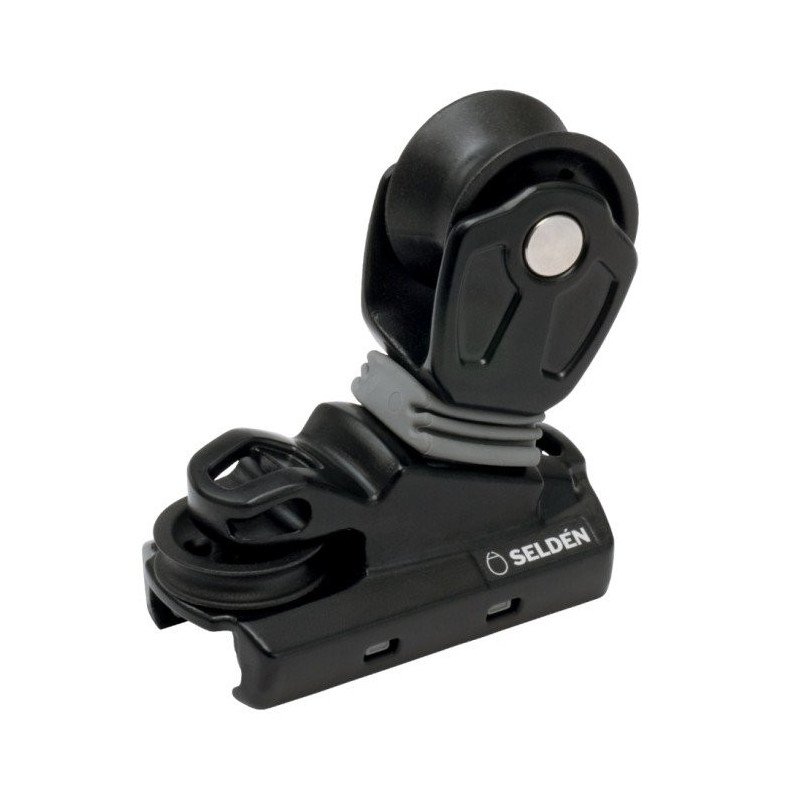

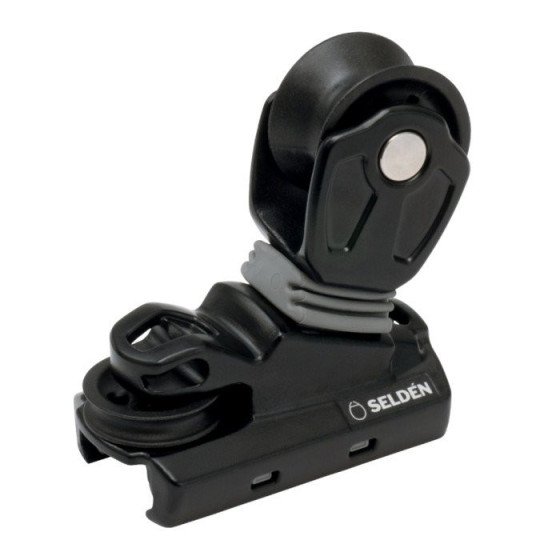

Seldén System 30 Genoa Car – 443-117-01

This Seldén System 30 genoa car forms part of the 3:1 control-line genoa arrangement. The sliding-rod car allows the genoa sheet lead position to be adjusted fore and aft along the track, giving controlled adjustment without relying on a fixed or pin-stop position.

For a complete System 30 3:1 arrangement, combine the car with the System 30 Genoa End Control 443-124-01 and the System 30 End Stop 443-125, together with the appropriate System 30 track and control line.

Specifications

• Seldén part number: 443-117-01
• System: System 30
• Control purchase: 3:1
• Safe working load: 700 kg
• Breaking load: 1,400 kg
• Maximum control line: 8 mm
• Length: 107 mm
• Width: 60 mm
• Weight: 471 g

When replacing an existing car, use the Seldén part number as the primary identifier and confirm that the track and associated end-control fittings are from the System 30 range.
