Martin Leaning’s online standing rigging calculator is divided into five main categories, each suited to different vessel types and rigging needs. Let’s break down how to use each one effectively.

Step 1: Go to the Standing Rigging Page

Start at the Standing Rigging page. https://martinleaning.co.uk/113-standing-rigging

Step 2: Choose Your Rigging Type

You’ll find several categories:

• Yacht Rigging 1x19 (3–14mm)
• Dinghy Rigging 1x19 (2.5–4mm)
• Flexible Wire 7x19 (3–10mm)
• Guard Rail Wires (4–8mm, with optional PVC coating)
• Compacted Strand Wire (Dyform) (3–12mm)

Step 3: Choose Compacted Strand Wire (Dyform) (3-12mm)

Go to page https://martinleaning.co.uk/standing-rigging/1272-compacted-strand-custom-rigging-dyform.html

Best for: Replacement rigging for Dinghies, Keelboats and Yachts Wire type: KOS 1x19 stainless steel

How to use:

• Select Custom Build Wire to configure a complete wire with end fittings.
• Choose your Wire Diameter (4–8mm, with optional PVC coating).
• Enter the exact Length in metres. Our website will accept a length to 3 decimal points. However, this is not usually practicable. We aim to produce your rigging to a tolerance of + or - the diameter of the wire. The bearing edge is the point/surface at the end of a termination that will take the load i.e., the inside edge of an eye. The picture shows examples of typical bearing edges - The point from which your measurements should be taken. Please take extra care when ordering because once a custom-built product has been started (cut), it can neither be cancelled nor returned for a refund.




• Choose the type of termination you need at the Upper end of the wire. There is a range of Upper Terminations as described below; only those relevant to the wire diameter you have chosen will be displayed.


  Description	Details
  Eye Terminal	Please check the eye diameter suits your requirements.
  T-Terminal	Seldén T-terminals must only be used in Seldén backing plates. A mix of Seldén terminals and non-Seldén backing plates, and the other way around, is a severe safety risk and will void any possible warranty and responsibility from Seldén. Please select the correct wire diameter for your requirements.

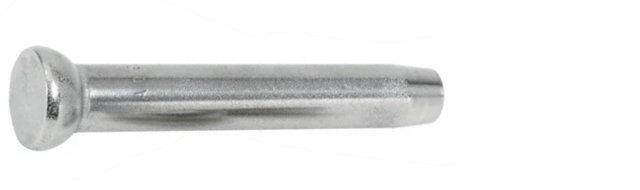

  Stemball (No Cup)	Ideal for lower shrouds and intermediate shrouds hanging in the spreader brackets with a stemball terminal at the upper end. This terminal is located in the cup of the spreader bracket. If required, it can be used with one or two separate cups to bring it up to the correct size for the cup. Measure the width of the complete assembly, including any cups, to ensure that all the cups are in position.

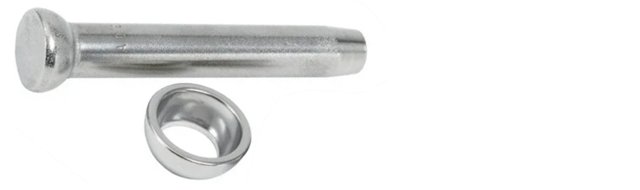

  Stemball (Single Cup)

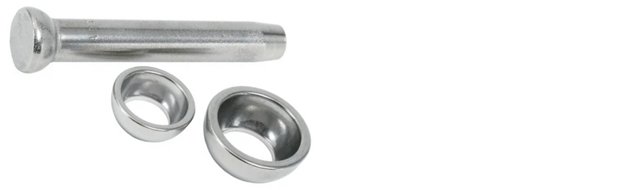

  Stemball (Double Cup)
  Fork Terminal	Please check the Pin Diameter suits your requirements.

• Choose the type of termination you need at the lower end of the wire. There is a range of Lower Terminations as described below; only those relevant to the wire diameter you have chosen will be displayed.


  Description	Details
  Eye Terminal	Please check the Eye Diameter suits your requirements.
  Fork Terminal	Please the Pin Diameter suits your requirements.

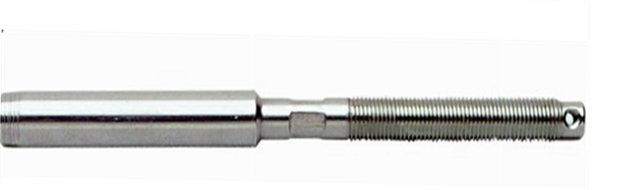

  Stud Terminal	This rigging screw has a fixed machined fork with pin at one end and a stud for specific wire diameters at the other end. Check the wire and pin sizes are correct for your requirements.

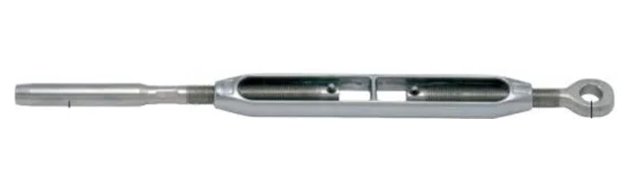

  Eye /Terminal Rigging Screw	This rigging screw has an eye at one end, and a wire terminal at the other end. Check the wire diameter, thread sizes and eye hole size are correct for your requirements.

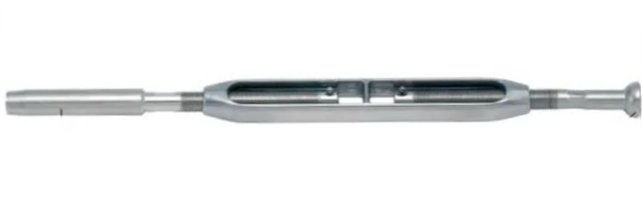

  Stud/Stemball Rigging Screw	This rigging screw has a one open end, and a Stemball at the other. Check the thread sizes and Stemball sizes are correct for your requirements.

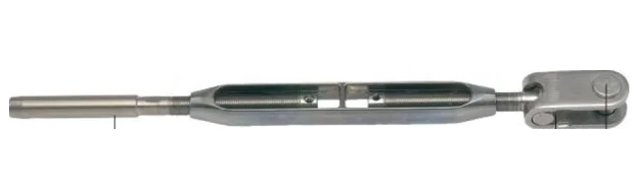

  Stud/Toggle Rigging Screw	This rigging screw has a stud at one end for specific wire diameters, and a toggle at the other end. Check the wire and pin sizes are correct for your requirements.

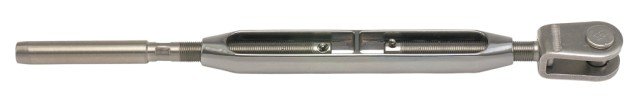

  Stud/Fork Rigging Screw	This rigging screw has a fixed machined fork with pin at one end and a stud for specific wire diameters at the other end. Check the wire and pin sizes are correct for your requirements.

• Enter any Notes / Requests. You can add a note for your benefit or to advise our Rigging Team of a specific requirement or request.
• Enter the Quantity of each wire you need, for example, you might need two shrouds, but only one forestay
• Click on Add to Cart and the checkout hen you have added all the wires you need to the cart.

To buy your custom replacement Compacted Strand (Dyform) rigging, please visit: https://martinleaning.co.uk/standing-rigging/1272-compacted-strand-custom-rigging-dyform.html
