Martin Leaning’s online rigging calculator is divided into five main categories, each suited to different vessel types and rigging needs. Let’s break down how to use each one effectively.

Before you order:

Choose the correct wire type

Match the calculator to the wire construction and diameter fitted to your boat.

Measure between bearing points

Use the loaded bearing surfaces of the end fittings as the measurement datum.

Confirm both terminations

Check terminal type, pin or eye dimensions, thread size and articulation where applicable.

Check before ordering

Custom-built rigging is made to the dimensions selected, so review the specification carefully before checkout.

Step 1: Open Standing Rigging

Start on the Standing Rigging page.

Step 2: Choose the Rigging Type

Select Yacht 1x19, Dinghy 1x19, Flexible 7x19, Guard Rail Wire or Compacted Strand to match the wire fitted to your boat.

Step 3: Choose Guard Rail Wire 7x19 (4–8 mm)

Best for: Replacement yacht guard wires and lifelines.

Wire: KOS 7x19 stainless steel flexible wire.

Open this rigging calculator

How to Configure Your Rigging

Work through each option in order and check each dimension and fitting against the rigging removed from your boat.

Choose the Wire Diameter

Choose your Wire Diameter (4–8mm, with optional PVC coating).

Enter the Finished Length

Enter the exact Length in metres. Our website will accept a length to 3 decimal points. However, this is not usually practicable. We aim to produce your rigging to a tolerance of + or - the diameter of the wire. The bearing edge is the point/surface at the end of a termination that will take the load i.e., the inside edge of an eye. The picture shows examples of typical bearing edges - The point from which your measurements should be taken. Please take extra care when ordering because once a custom-built product has been started (cut), it can neither be cancelled nor returned for a refund.

Guard WIre Example

Rigging Bearing Points

Choose the Upper Termination

Choose the type of termination you need at the bow end of the wire. There is a range of Bow Terminations as described below; only those relevant to the wire diameter you have chosen will be displayed.
Description Details
Eye Terminal
Eye Terminal
Please check the Eye Diameter suits your requirements.

Fork Terminal
Fork Terminal
Please check the Pin Diameter suits your requirements.

Pelican Hook
Pelican Hook + Stud
A standard Pelican Hook connected to the wire with a short stud, used in many guard wire installations.
Stud Terminal

A standard Stud Terminal used typically to connect to other fittings.

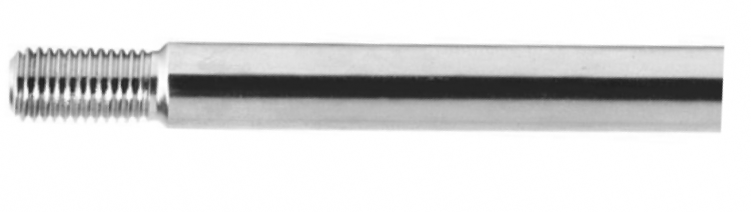

Short Stud Terminal
Short Stud
A standard Short Stud Terminal used typically to connect to Pelican Hooks.

Choose the Lower Termination

Choose the type of termination you need at the stern end of the wire. There is a range of Stern Terminations as described below; only those relevant to the wire diameter you have chosen will be displayed.
Description Details
Eye Terminal
Eye Terminal
Please check the Eye Diameter suits your requirements.

Fork Terminal
Fork Terminal
Please check the Pin Diameter suits your requirements.

Pelican Hook
Pelican Hook + Stud
A standard Pelican Hook connected to the wire with a short stud, used in many guard wire installations.
Stud Terminal

A standard Stud Terminal used typically to connect to other fittings.
Short Stud Terminal
Short Stud
A standard Short Stud Terminal used typically to connect to Pelican Hooks.

Add Notes or Special Requests

Enter any Notes / Requests. You can add a note for your benefit or to advise our Rigging Team of a specific requirement or request.

Enter the Quantity

Enter the Quantity of each wire you need, for example, you might need two shrouds, but only one forestay

Add to Cart

Click on Add to Cart and then proceed to checkout when you have added all the wires you need to the cart.

Ready to Order Your Custom Guard Wires?

Configure and price your replacement rigging online, or send our rigging team your yacht and rigging details if you would like help confirming the specification.

Build & Price Guard Wires
Request a Rigging Estimate
