Eye /Terminal Selden Bronze Rigging Screw
  • Eye /Terminal Selden Bronze Rigging Screw

Eye /Terminal Selden Bronze Rigging Screw

£68.72
inc. VAT Typically delivered within 4-7 Days

Bronze, like stainless steel, is very strong and highly resistant to corrosion. By making the body of the rigging screw in chrome plated aluminium bronze and the terminals in high grade marine stainless steel the risk of the thread seizing up under heavy loads is reduced. A design feature which gives you a product that performs better and lasts even longer.

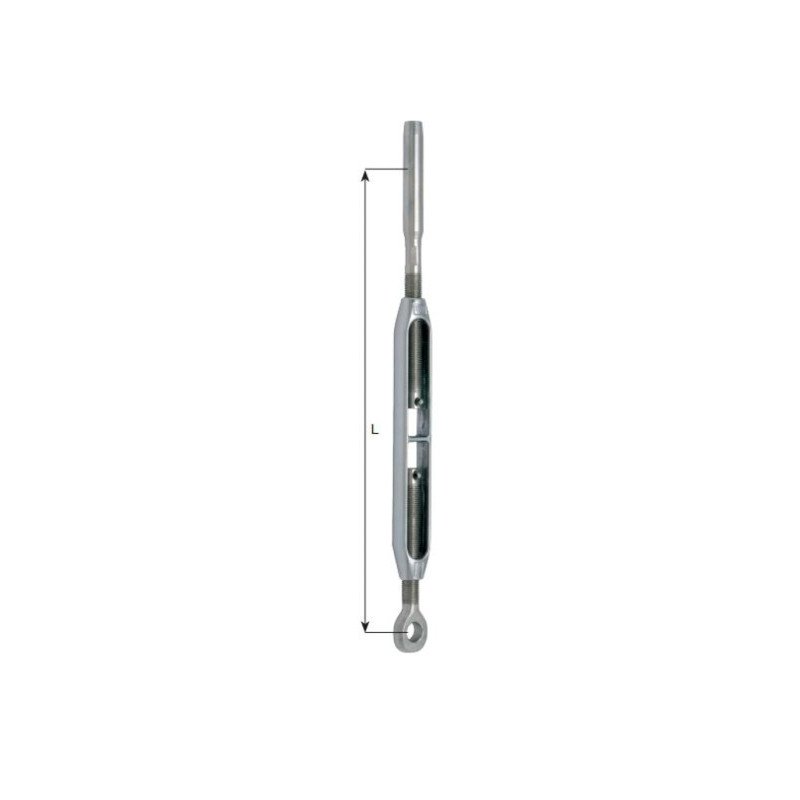

This rigging screw has an eye at one end, and a wire terminal at the other end. Check the wire diameter, thread sizes and eye hole size are correct for your requirements.

Eye /Terminal Selden Bronze Rigging Screw

Eye /Terminal Selden Bronze Rigging Screw

£68.72
inc. VAT Typically delivered within 4-7 Days

w3c

Wire Dia / Thread Size / Hole Dia :
Quantity :

Hurry! Only 15 Left in Stock!

In Stock (typically delivered within 4-7 days)



Our Delivery Policy



Returning Your Order - Our policy

Sizing Guide

Part No Wire Diam (mm) Thread Size Hole (mm) LMIN (mm) LMAX (mm) Breaking Load (kg)
174-321-45 3 1/4" 6.50 134 205 1550
174-321-46 4 1/4" 6.50 131 202 1550
174-322-45 4 5/16" 8.30 153 235 2450
174-322-46 5 5/16" 8.00 167 249 2450
174-323-45 5 3/8" 10.50 193 295 3450
174-323-46 6 3/8" 10.50 191 293 3450
174-324-45 6 7/16" 11.50 215 339 4750
174-324-46 7 7/16" 11.50 222 346 4750
174-325-45 7 1/2" 13.50 248 396 6200
174-325-46 8 1/2" 13.50 243 391 6200
174-326-45 8 5/8" 16.50 279 453 9500
174-326-46 10 5/8" 16.50 282 456 9500
174-327-45 10 3/4" 19.50 340 548 12500
174-327-46 12 3/4" 19.50 340 548 12500
174-328-45 12 7/8" 22.50 403 645 18000
174-328-46 14 7/8" 22.50 411 653 18000

The Eye/Terminal Selden Bronze Rigging Screw: A Comprehensive Guide

Introduction

The Eye/Terminal Selden Bronze Rigging Screw is a specialized component in marine rigging, designed for durability, corrosion resistance, and optimal performance under heavy loads. Manufactured by Selden, a leading name in sailing hardware, this rigging screw is engineered to provide reliable tensioning while minimizing the risk of thread seizure.

Material and Construction

The body of the rigging screw is made from chrome-plated aluminum bronze, a material known for its exceptional strength and resistance to corrosion. The eye terminal and wire terminal are crafted from high-grade marine stainless steel, ensuring longevity and robustness. This combination reduces the risk of thread seizure under heavy loads, a common issue with all-stainless steel rigging screws.

Design Features

  • Eye/Terminal Configuration: One end features an eye terminal, while the other is a wire terminal, allowing for flexible rigging applications.

  • Adjustable Length: The screw allows for precise tensioning, with minimum and maximum lengths varying by size.

  • Breaking Load Capacity: Ranges from 1,550 kg to 18,000 kg, depending on the thread and wire size.

  • Thread and Wire Sizes: Available in multiple configurations, including 3mm to 14mm wire diameters with corresponding thread sizes.

Advantages Over Stainless Steel Rigging Screws

Unlike traditional all-stainless steel rigging screws, the bronze/stainless combination offers several advantages:

  • Reduced Risk of Seizing: Stainless steel threads can seize under heavy loads due to galling. The bronze body mitigates this issue.

  • Enhanced Corrosion Resistance: Bronze is highly resistant to marine corrosion, making it ideal for long-term use.

  • Improved Longevity: The combination of materials ensures a longer lifespan compared to standard stainless steel screws.

Applications

The Eye/Terminal Selden Bronze Rigging Screw is widely used in:

  • Sailing Yachts: Essential for tensioning standing rigging.

  • Architectural Rigging: Used in structural applications requiring high load-bearing capacity.

  • Industrial Use: Suitable for heavy-duty tensioning in various engineering fields.

Conclusion

The Eye/Terminal Selden Bronze Rigging Screw is a superior choice for marine and industrial rigging applications. Its bronze/stainless steel construction, high load capacity, and adjustable length make it a reliable and durable solution for demanding environments. Whether for sailing, architecture, or industrial use, this rigging screw ensures optimal performance and longevity.
