Open/Terminal Selden Bronze Rigging Screw
  • Open/Terminal Selden Bronze Rigging Screw

Open/Terminal Selden Bronze Rigging Screw

£76.14
inc. VAT Typically delivered within 4-7 Days

Bronze, like stainless steel, is very strong and highly resistant to corrosion. By making the body of the rigging screw in chrome plated aluminium bronze and the terminals in high grade marine stainless steel the risk of the thread seizing up under heavy loads is reduced. A design feature which gives you a product that performs better and lasts even longer.

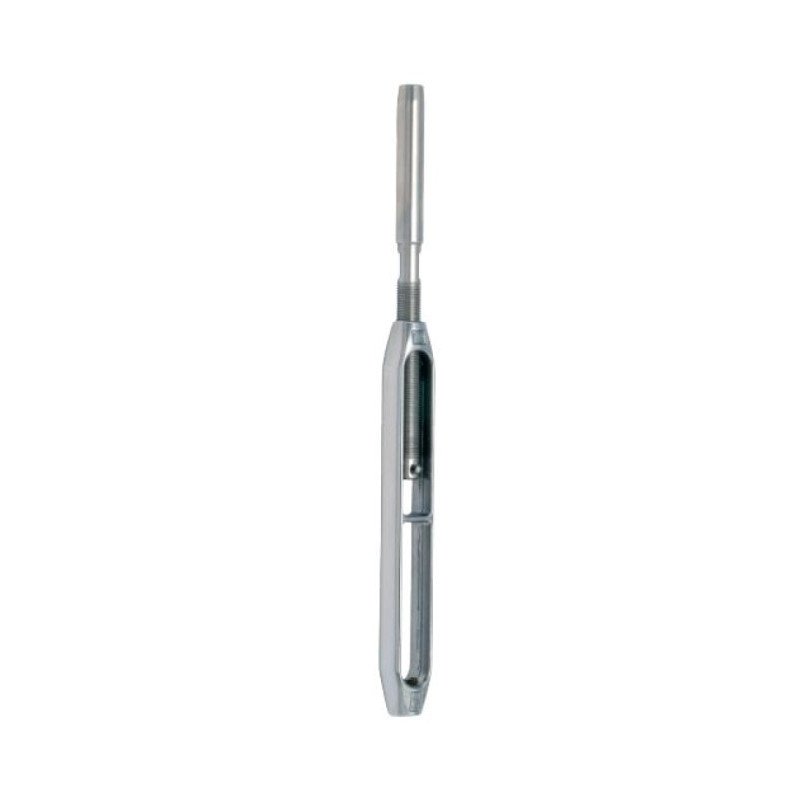

This rigging screw is open at one end, and a wire terminal at the other end. Check the wire diameter and thread sizes are correct for your requirements.

Open/Terminal Selden Bronze Rigging Screw

Open/Terminal Selden Bronze Rigging Screw

£76.14
inc. VAT Typically delivered within 4-7 Days

w3c

Wire Dia / Thread Size :
Quantity :

Hurry! Only 5 Left in Stock!

In Stock (typically delivered within 4-7 days)



Our Delivery Policy



Returning Your Order - Our policy

Sizing Guide

Part No Wire Diam (mm) Thread Size Breaking Load (kg)
174-323-30 5 3/8" 3450
174-323-31 6 3/8" 3450
174-324-30 6 7/16" 4750
174-324-31 7 7/16" 4750
174-325-30 7 1/2" 6200
174-325-31 8 1/2" 6200
174-326-30 8 5/8" 9500
174-326-31 10 5/8" 9500
174-327-30 10 3/4" 12500
174-327-31 12 3/4" 12500
174-328-31 14 7/8" 18000

Open/Terminal Selden Bronze Rigging Screws: A Comprehensive Guide

Introduction

Open/Terminal Selden Bronze Rigging Screws are high-performance tensioning components used in marine and architectural rigging. Their chrome-plated aluminum bronze body and marine-grade stainless steel terminals provide exceptional strength and corrosion resistance. The open/terminal configuration offers versatility, making them ideal for various rigging applications.

Material Composition and Benefits

These rigging screws are designed with:

  • Chrome-plated aluminum bronze for the body, ensuring high durability and resistance to corrosion.

  • Marine-grade stainless steel terminals, reducing the risk of thread seizure under heavy loads.

This combination results in a long-lasting, high-performance rigging screw suitable for demanding environments.

Design and Functionality

The Open/Terminal configuration consists of:

  • An open-ended body, allowing for easy access and adjustments.

  • A terminal fitting at the other end, designed for secure attachment to rigging systems.

This design is particularly useful in applications where quick adjustments and accessibility are required, such as sailboat rigging and architectural tensioning systems.

Applications

Open/Terminal Selden Bronze Rigging Screws are commonly used in:

  • Marine rigging, particularly for sailboats and yachts.

  • Architectural tensioning systems, where flexibility is required.

  • Industrial applications, where high-strength tensioning is necessary.

Available Sizes and Specifications

These rigging screws come in various sizes to accommodate different wire diameters and thread sizes. Some common specifications include:

  • Wire diameters ranging from 5mm to larger sizes.

  • Thread sizes such as 3/8" and above.

  • Breaking loads varying depending on size and application.

Maintenance and Longevity

To ensure optimal performance:

  • Regular lubrication with rigging screw oil prevents thread seizure.

  • Periodic inspections help detect wear and corrosion.

  • Proper installation ensures maximum load-bearing capacity.

Conclusion

Open/Terminal Selden Bronze Rigging Screws are a premium choice for marine and architectural rigging, offering strength, durability, and accessibility. Their innovative design minimizes thread seizure while allowing for quick adjustments, ensuring long-lasting performance in demanding environments.
