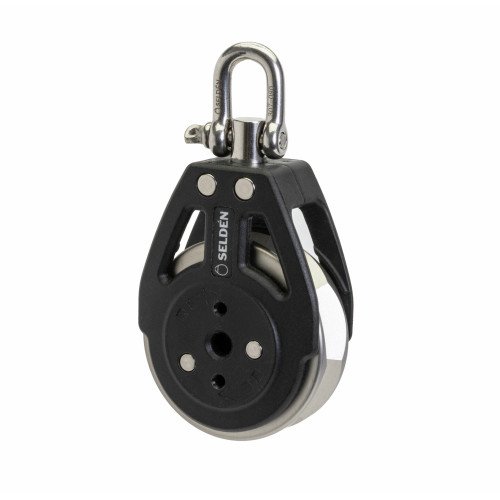

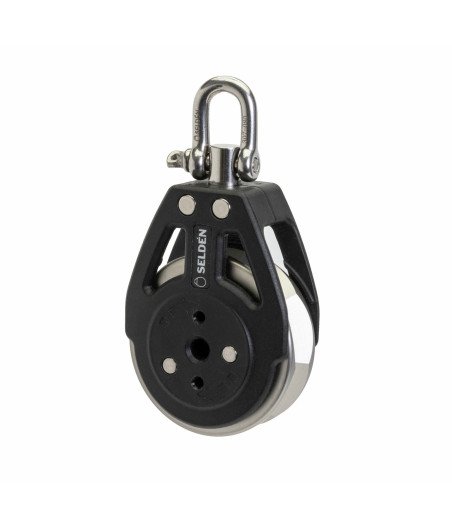

ARB45 - 45 mm Automatic Ratchet Block, Single, Aluminium sheave

Name: ARB45 - 45 mm Automatic Ratchet Block, Single, Aluminium sheave
Brand: Seldén
SKU: 404-360-51R
Price: 80.32 GBP
Availability: InStock

Part No. 404-360-51R

Seldén

£80.32

Seldén

inc. VAT Typically delivered within 2-3 weeks

0 Review(s)

APPLICATIONS Dinghy main sheets. Dinghy spinnaker/Gennaker sheets TECHNICAL FEATURESThe block is designed with lightweight Delrin ball bearings and comes with an aluminium sheave for more grip when using it for a thin line. The sheave automatically changes from free-turning to ratchet when the load increases. The sailor decides when the automatic ratchet kicks in. The switch-over point is set using an allen key to…

ARB45 - 45 mm Automatic Ratchet Block, Single, Aluminium sheave

£80.32

Seldén

inc. VAT Typically delivered within 2-3 weeks

Quantity :

Write review

Our Delivery Policy

Returning Your Order - Our policy

APPLICATIONS
Dinghy main sheets.
Dinghy spinnaker/Gennaker sheets

TECHNICAL FEATURES

The block is designed with lightweight Delrin ball bearings and comes with an aluminium sheave for more grip when using it for a thin line.
The sheave automatically changes from free-turning to ratchet when the load increases. The sailor decides when the automatic ratchet kicks in.
The switch-over point is set using an allen key to adjust a screw inside the sheave. Fast, simple, precise.
The shackle is either swiveling or locked in 0°/90°. A swivel lock 404-131 is included when purchasing the block.

Safe working Load: 150 kg
Breaking Load: 300 kg
Max line size: 8 mm
