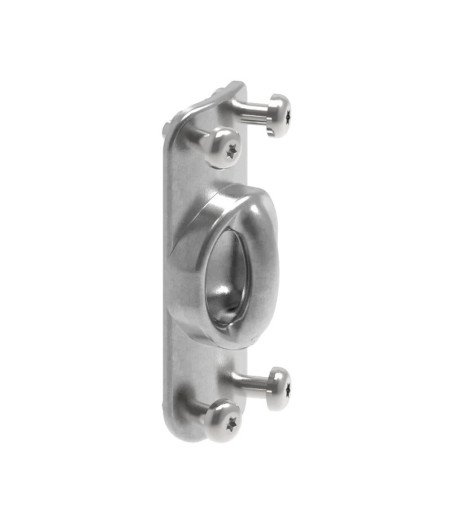

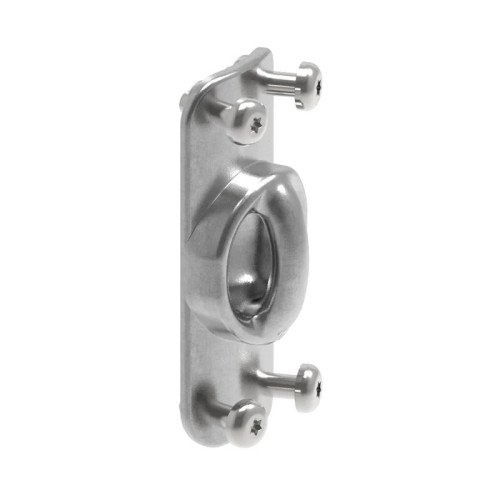

Dead-end bracket for Code Zero halyard, C280-F406, Max rope dia16

Dead-end fitting for a Code Zero halyard.

Code Zero halyard with 2:1 purchase
To boost the performance when using a Code Zero, the halyard load must be higher than what normal halyard boxes and stoppers can handle. Therefore, a 2:1 purchase needs to be arranged by fixing the dead end of the halyard in the mast and letting it run through a block attached to the halyard swivel. Position on the mast must be specified by Seldn. In most cases Code Zero sails need to be hoisted lower than gennakers and spinnakers.

Fits Seldn mast sections C280, C321, C365, F324, F370, F406

4 M8 screws (8x25 mm) included.

Max righting moment (RM) at 30deg heel: 350 kNm.

Mast Section: C280,C321,C365,F324,F370,F406
SWL (1): 3500 kg

Dead-end bracket for Code Zero halyard, C280-F406, Max rope dia16
SKU: 508-838-01R
Series: CX/GX Downwind Furlers

For a full list of all Furlex Spares please visit Furlex Spare Parts.
