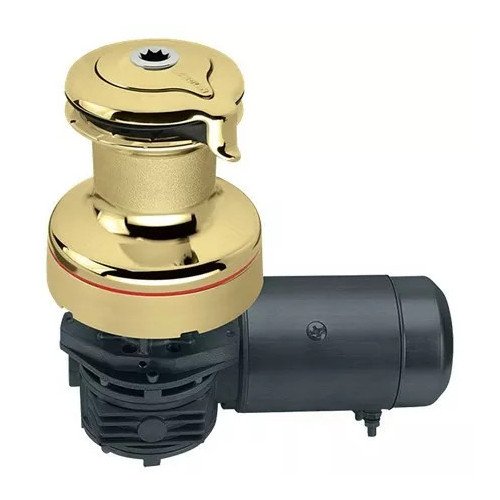

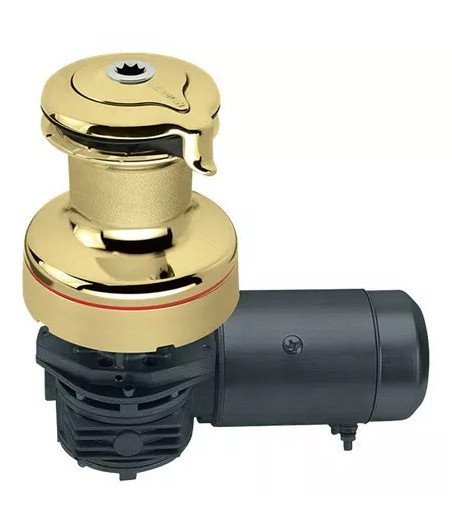

Harken 46 bronze electric self-tailing Radial winch with two-speed powered operation for larger yacht sail-control loads. Suitable for 8–14 mm line and available in 12 V or 24 V vertical and horizontal configurations.

Harken 46 Bronze Electric Self-Tailing Radial Winch — 2 Speed
Harken 46 Bronze Electric Self-Tailing Radial Winch — 2 Speed
£5,783.51 £6,804.13 Save 15%

Harken

inc. VAT Typically delivered within 2-3 Weeks (In stock at Distributor)
Select Available Power :
Quantity :
Ask a Question
Write review



Our Delivery Policy



Returning Your Order - Our policy

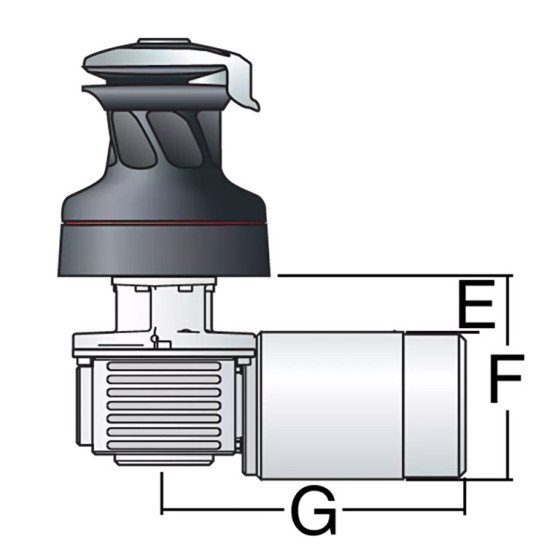

Harken 46.2STEB Model Variants — Specification Table

Model Material Voltage Mounting Speed Weight Drum Ø Base Ø Height Line Ø Range Gear Ratios Power Ratios
46.2STEBBB12H Bronze 12V Horizontal Right 2 20.4kg / 45 lb 100 mm 184 mm 201 mm 8–14 mm 2.30 / 9.17 11.7 / 46.5
46.2STEBBB12HLM Bronze 12V Horizontal Left 2 20.4kg / 45 lb 100 mm 184 mm 201 mm 8–14 mm 2.30 / 9.17 11.7 / 46.5
46.2STEBBB24H Bronze 24V Horizontal Right 2 20.4kg / 45 lb 100mm 184 mm 201 mm 8–14 mm 2.30 / 9.17 11.7 / 46.5
46.2STEBBB24HLM Bronze 24V Horizontal Left 2 20.4kg / 45 lb 100 mm 184 mm 201 mm 8–14 mm 2.30 / 9.17 11.7 / 46.5
46.2STEBBB12V Bronze 12V Vertical 2 20.4kg / 45 lb 100 mm 184 mm 201 mm 8–14 mm 2.30 / 9.17 11.7 / 46.5
46.2STEBBB24V Bronze 24V Vertical 2 20.4kg / 45 lb 100 mm 184 mm 201 mm 8–14 mm 2.30 / 9.17 11.7 / 46.5

Shared Features Across All 46.2STEB Models

  • Self-Tailing: Enables single-handed trimming
  • Radial Drum Design: Diagonal ribs for grip and reduced line wear
  • Composite Bearings: Lightweight, corrosion-resistant, no lubrication needed
  • Drive System: Motor attaches to central shaft for efficient power transfer
  • Control Requirements: 1 control box, 1 circuit breaker, 2 analog switches or 1 digital switch
  • Fasteners: 5 × M8 bolts on a 150 mm circle

These winches are a step up in power from the 40 series, ideal for larger headsails or heavier loads. The 24V versions are especially useful for yachts with higher-capacity electrical systems, while horizontal mounts suit installations with limited vertical clearance.
