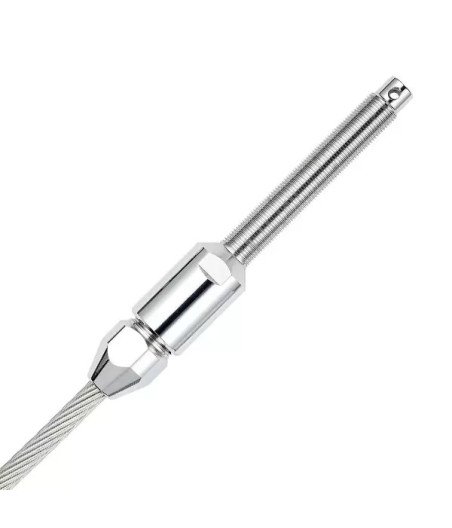

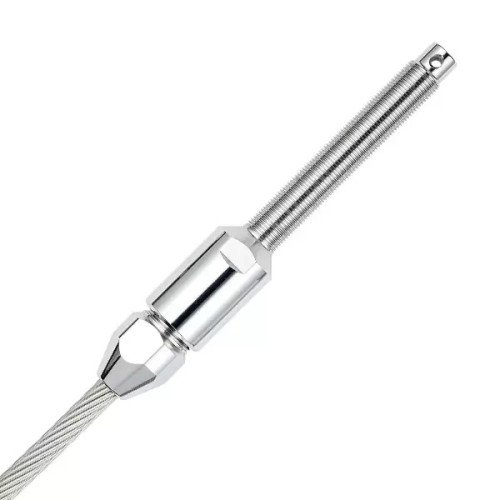

Sta-Lok Stud Wire Dia / Thread Size 3mm / 1/4"

WE NOW OFFER WORLDWIDE DELIVERY - YOU WILL SEE ALL THE DELIVERY OPTIONS ON CHECKOUT

Loading rigging options…

Part Numbers / Dimensions

Sta-Lok Stud Specifications

Product Code	Wire Size (Metric)	Thread (UNF)	A (mm)	B (mm)	Weight (kg)
036-03	3 MM	1/4″	64.3	55.6	0.020
036-04-1/4	4 MM	1/4″	65.0	55.6	0.040
036-04	4 MM	5/16″	67.5	58.7	0.060
036-05-5/16	5 MM	5/16″	70.6	58.7	0.080
036-05	5 MM	3/8″	78.0	66.7	0.080
036-06-3/8	6 MM	3/8″	84.0	66.7	0.120
036-06	6 MM	7/16″	93.0	74.6	0.140
036-07-7/16	7 MM	7/16″	95.0	74.6	0.180
036-07	7 MM	1/2″	97.0	81.0	0.200
036-08	8 MM	1/2″	98.0	81.0	0.240
036-08-5/8	8 MM	5/8″	110.0	95.2	0.300
036-10	10 MM	5/8″	111.0	95.2	0.360
036-10-3/4	10 MM	3/4″	129.0	123.8	0.480
036-12	12 MM	3/4″	139.0	123.8	0.760
036-12-7/8	12 MM	7/8″	168.0	139.7	0.880
036-14	14 MM	7/8″	170.0	139.7	1.300
036-14-100	14 MM	1″	170.0	139.7	1.420
036-16	16 MM	1″	171.0	139.7	1.660
036-19	19 MM	1 1/8″	213.0	171.5	3.140
036-22	22 MM	1 1/4″	275.0	227.0	4.540

These studs are part of Sta-Lok’s Self-Fit Terminal range, designed for easy installation using basic hand tools and made from high-spec 316 stainless steel.
